BD060-211G: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Plug,; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerAdvanced Interconnections Corp.; Environmental Compliance

Download Datasheet Parametric Compare View All

BD060-211G Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Plug,

BD060-211G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.11 inch
subject depth	0.26 inch
body length	2.95 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	LIF N
Insulator color	NATURAL
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
Manufacturer's serial number	BD
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.905 mm
Plating thickness	10u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	60
Base Number Matches	1

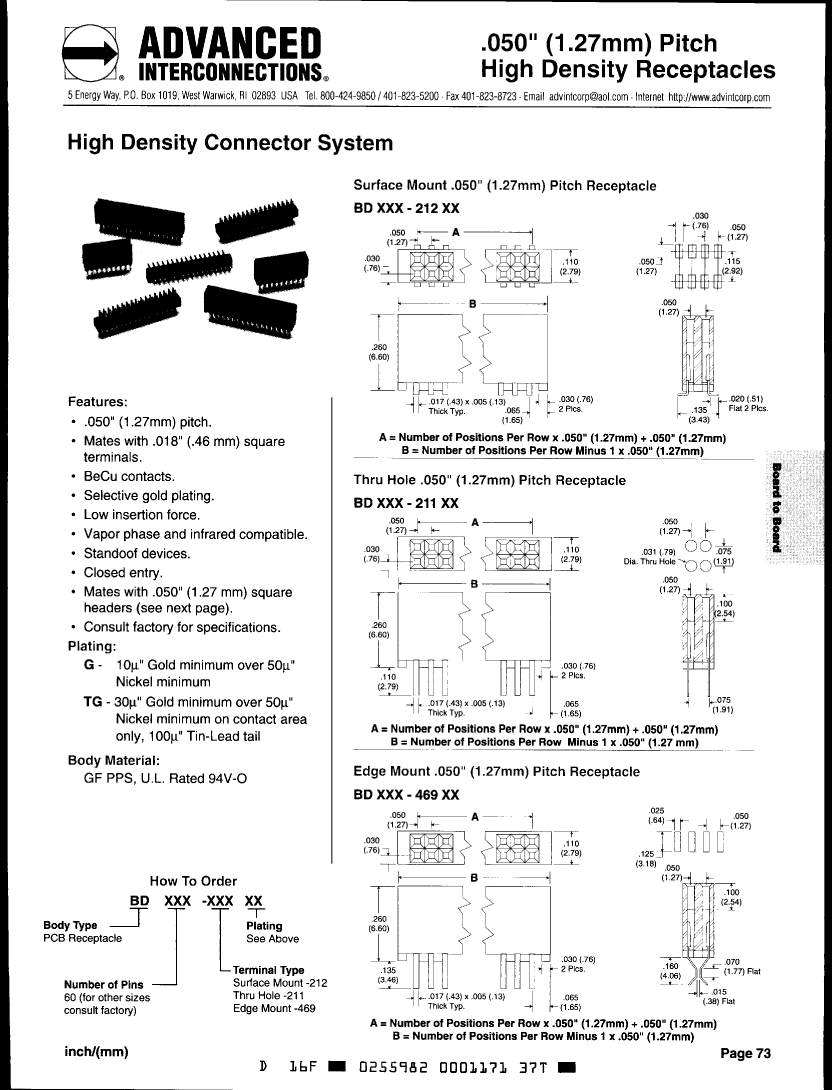

Preview

Download Datasheet

View All

BD060-211G Related Products

	BD060-211G	BD060-211TG	BD060-212G	BD060-212TG	BD060-469G
Description	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Plug,	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Natural Insulator, Plug	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Natural Insulator, Plug,	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Natural Insulator, Plug	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Natural Insulator, Plug
Reach Compliance Code	compliant	unknown	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch
subject depth	0.26 inch	0.26 inch	0.26 inch	0.26 inch	0.26 inch
body length	2.95 inch	2.95 inch	2.95 inch	2.95 inch	2.95 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	GOLD	Gold (Au) - with Nickel (Ni) barrier	GOLD	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
maximum insertion force	LIF N	LIF N	LIF N	LIF N	LIF N
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	BD	BD	BD	BD	BD
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	1
Number of rows loaded	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	30u inch	10u inch	30u inch	10u inch
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Total number of contacts	60	60	60	60	60
Is it Rohs certified?	conform to	-	conform to	-	conform to
JESD-609 code	e4	-	e4	-	e4
Installation type	BOARD	BOARD	-	-	BOARD
PCB contact row spacing	1.905 mm	1.905 mm	2.921 mm	2.921 mm	-
Terminal length	0.11 inch	0.11 inch	-	-	0.135 inch
Termination type	SOLDER	SOLDER	-	-	SURFACE MOUNT
Base Number Matches	1	1	1	1	-
