K200S4X-112-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> K200S4X-112-G

K200S4X-112-G: DescriptionBoard Connector, 112 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

K200S4X-112-G Overview

Board Connector, 112 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT

K200S4X-112-G Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.315 inch
subject depth	0.25 inch
body length	2.217 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	K200S4X
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	112
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

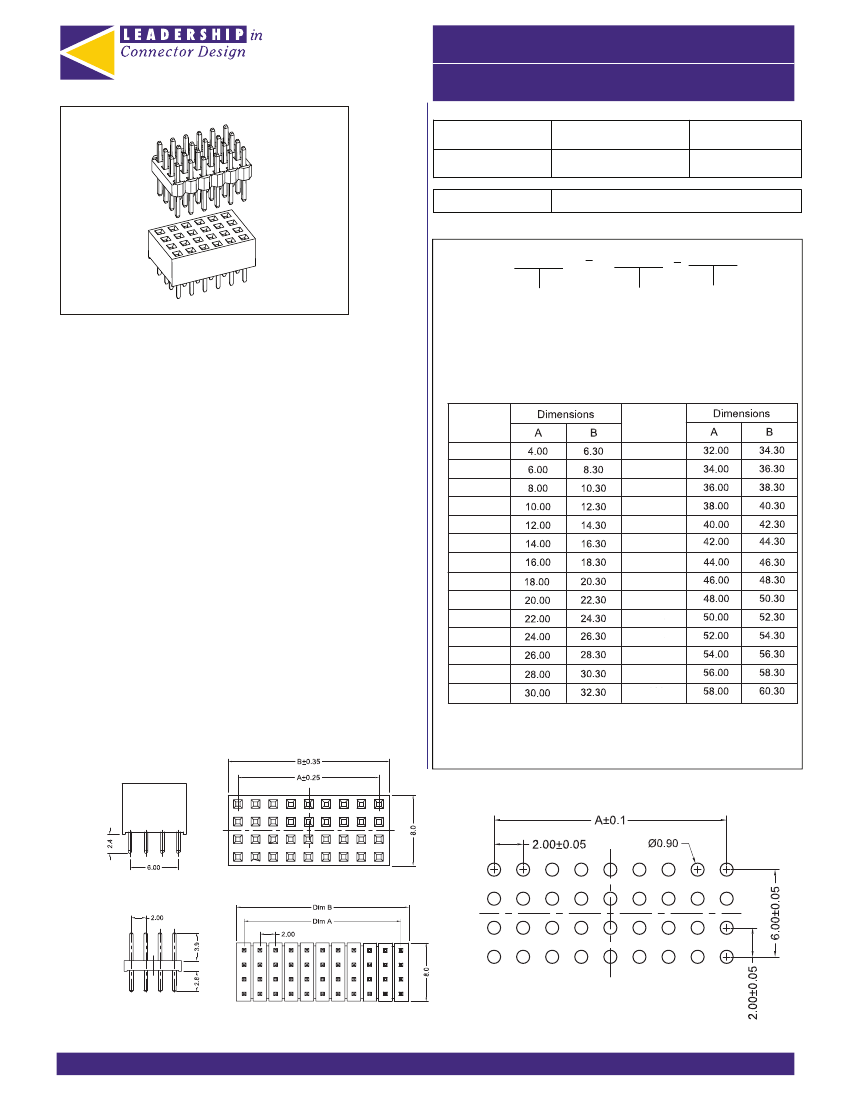

2.0MM 4 Row PCB Pin & Socket Header

KYCON

RoHS

K200P4X/S4X Series

Documentation &

Ordering Information

Drawing

Sample

Stock

CofC

RFQ

Kycon Part #

K200P4X-12-G

Part Number Builder

K200P4X

Contacts

Plating

Series

K200P4X/S4 Series

Features

• Four row Header and Socket offered

2.0MM 4 Row PCB Socket & Pin Header

Series

K200P4X

2.0 4 Row PCB Pin Header

K200S4X

2.0 4 Row PCB Socket Header

Number of Contacts

No. of

Contacts

• 0.079” spacing for real estate savings

• Multiple stack height options

• Circuit sizes range from 12-120

No. of

Contacts

Performance Specifications

Material and Finish

Housing

: High Temp plastic (UL94V-0)

Contact

: Copper Alloy

Plated

: Gold Plated

Current Rating :

2.0A AC/DC

Voltage Rating :

250V AC/DC

Resistance :

20m ohm.max.

Insulation Resistance :

1000M ohm.Min.

Withstanding Voltage :

500V AC for one minute

Operating Temperature Range :

-40ºC to +105ºC

100

104

Electrical Characteristics

108

112

116

120

Plating

G -

Gold

Contact Kycon for more options

K200S4X -

2.0 4 Row PCB Socket Header

K200P4X -

2.0 4 Row PCB Pin Header

PCB Layout Reference

2009

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
