FBI1.5F5S2-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FBI1.5F5S2-4

FBI1.5F5S2-4: DescriptionBridge Rectifier Diode, 1 Phase, 1.5A, 300V V(RRM), Silicon, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size147KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

FBI1.5F5S2-4 Overview

Bridge Rectifier Diode, 1 Phase, 1.5A, 300V V(RRM), Silicon, PLASTIC PACKAGE-4

FBI1.5F5S2-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	R-PSFM-T4
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSFM-T4
JESD-609 code	e3
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
surface mount	NO
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

FBI1.5B5S2.......FBI1.5M5S

1.5 Amp. Glass Passivated Bridge Rectifier

Dimensions in mm.

2.5x45º

Plastic

Case

3.5

Voltage

100 to 1000 V.

Current

1.5 A.

6.25

1.5

+ 0.05

1.5

suffix

0.5

3.2

13.5

Glass Passivated Junction Chips.

UL recognized under component index file

number E320541.

Lead and polarity identifications.

Case: Molded Plastic.

Ideal for printed circuit board (P.C.B.).

The plastic material carries U/L recognition 94 V-O.

Mounting Instructions

High temperature soldering guaranteed: 260 ºC 10 sc.

Recommended mounting torque: 8 Kg.cm.

Maximum Ratings, according to IEC publication No. 134

FBI1.5B FBI1.5D

5S2

FBI1.5F FBI1.5J FBI1.5L FBI1.5M

5S2

300

210

125

600

420

250

900

630

380

100

700

500

F(AV)

FRM

FSM

stg

Peak Recurrent Reverse Voltage (V)

Maximum RMS Voltage (V)

Recommended Input Voltage (V)

Max. Average forward current with heatsink

without heatsink

Recurrent peak forward current

10 ms. peak forward surge current

t value for fusing (t = 10 ms)

Dielectric strength

(terminals to case, AC 1 min.)

Operating temperature range

Storage temperature range

Max. forward voltage drop per element at I

= 1

Max. reverse current per element at V

RRM

MAXIMUM THERMAL

Junction-Case. With Heatsink.

Junction-Ambient. Without Heatsink.

100

200

140

4.0 A at 65 ºC

1.5 A at 25 ºC

10 A

50 A

12 A

sec

1500 V

40 to + 150 °C

40 to +150 ºC

1.1 V

5µA

12 ºC/W

45 ºC/W

Electrical Characteristics at Tamb = 25°C

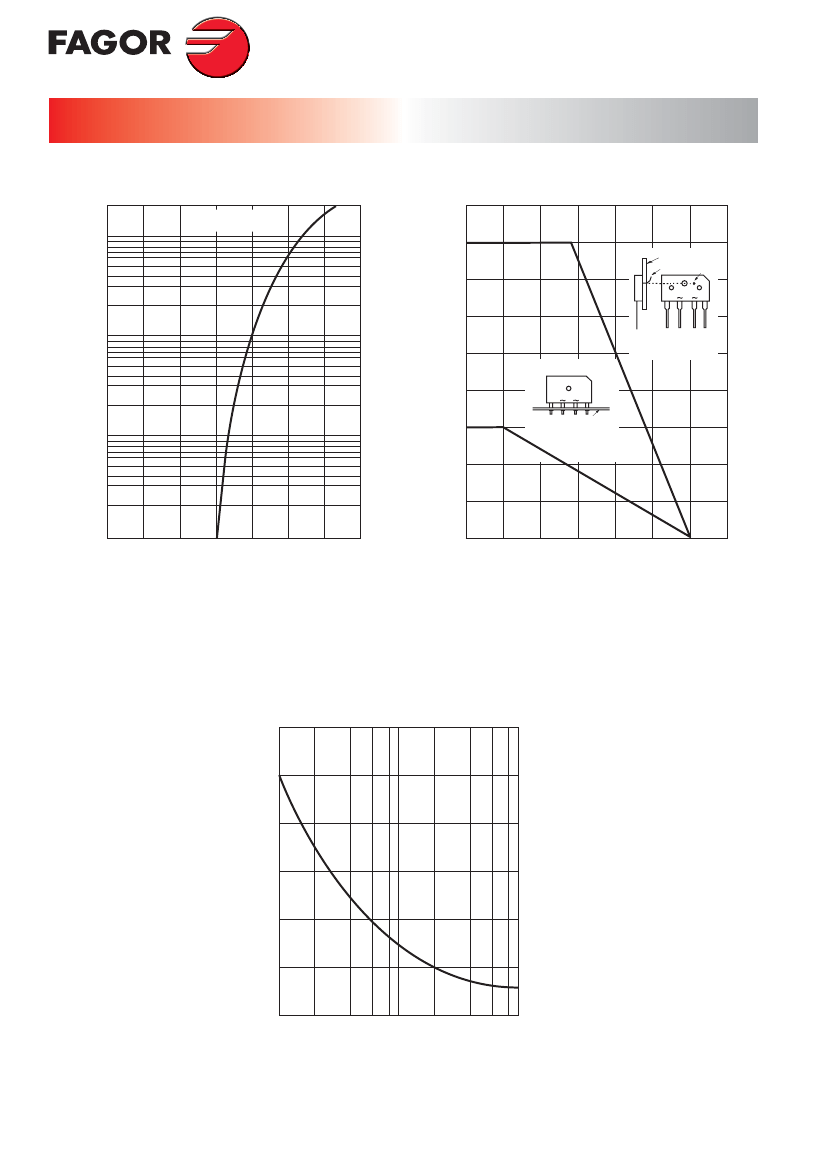

Dec - 08
