Datasheet> All Categories > Discrete semiconductor> diode> FBI4D7M1

Preview

FBI4D7M1: DescriptionBridge Rectifier Diode, 1 Phase, 3A, 200V V(RRM), Silicon, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size27KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

FBI4D7M1 Overview

Bridge Rectifier Diode, 1 Phase, 3A, 200V V(RRM), Silicon, PLASTIC PACKAGE-4

FBI4D7M1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	R-PSFM-T4
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JESD-30 code	R-PSFM-T4
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

FBI4A7M1.......FBI4M7M1

4 Amp. Glass Passivated Bridge Rectifier

Dimensions in mm.

25

3.2

Plastic

Case

3.5

Voltage

50 to 1000 V.

Current

4.0 A.

®

_

1

+ 0.05

+

• Glass Passivated Junction Chips.

L

7.5

suffix

–4

1

0.7

•

UL recognized under component index file

•

number E130180.

Lead and polarity identifications.

Case: Molded Plastic.

Ideal for printed circuit board (P

.C.B.).

High surge current capability.

The plastic material carries U/L recognition 94 V-O.

17.5

8

• Mounting Instructions

•

High temperature soldering guaranteed: 260 ºC – 10 sc.

•

Recommended mounting torque: 8 Kg.cm.

Maximum Ratings, according to IEC publication No. 134

FBI4A FBI4B

7M1

FBI4D

7M1

200

140

FBI4G

7M1

400

280

FBI4J

7M1

600

420

FBI4K FBI4M

7M1

800

560

1000

700

V

RRM

V

RMS

I

F(AV)

I

FSM

I

2

t

V

DIS

T

j

T

stg

Peak recurrent reverse voltage (V)

Maximum RMS voltage (V)

Max. average Forward current with heatsink

without heatsink

10 ms. peak forward surge current

(Jedec Method)

Current squared time (rating for fusing)

(1ms.<t<10ms. Tc = 25ºC)

Dielectric strength (terminals to case, AC 1 min.)

Operating temperature range

Storage temperature range

50

35

100

70

4.0 A at 100 ºC

3.0 A at 40 ºC

150 A

2

110 A sec

2000 V

– 55 to + 150 °C

– 55 to +150 ºC

Electrical Characteristics at Tamb = 25°C

V

F

I

R

th (j-c)

R

th (j-a)

Max. forward voltage drop per diode at I

F

= 2.0 A

Max. reverse current at V

RRM

MAXIMUM THERMAL RESISTANCE

Junction-Case. With Heatsink.

Junction-Ambient. Without Heatsink.

0.95 V

5 A

5 ºC/W

22 ºC/W

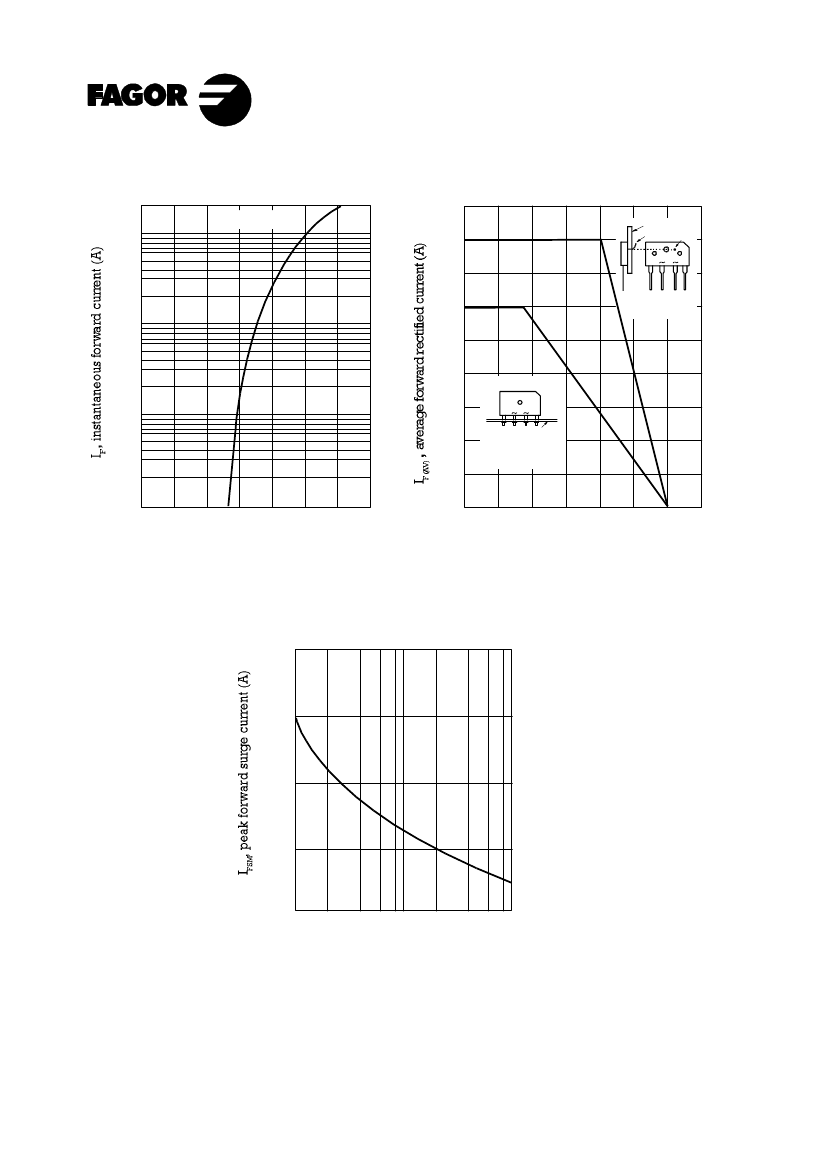

Jan - 00

FBI4D7M1 Related Products

	FBI4D7M1	FBI4M7M1	FBI4J7M1	FBI4B7M1
Description	Bridge Rectifier Diode, 1 Phase, 3A, 200V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 3A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 3A, 600V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 3A, 100V V(RRM), Silicon, PLASTIC PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	R-PSFM-T4	R-PSFM-T4	PLASTIC PACKAGE-4	R-PSFM-T4
Contacts	4	4	4	4
Reach Compliance Code	unknown	unknown	unknow	unknow
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	0.95 V	0.95 V	0.95 V
JESD-30 code	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4
JESD-609 code	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	1000 V	600 V	100 V
surface mount	NO	NO	NO	NO
Terminal surface	TIN	TIN	TIN	TIN
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
