F450FS334H1K6P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> F450FS334H1K6P

F450FS334H1K6P: DescriptionFilm Capacitor, Polypropylene, 1600V, 0.33uF; CategoryPassive components capacitor; File Size2MB，24 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

F450FS334H1K6P Overview

Film Capacitor, Polypropylene, 1600V, 0.33uF

F450FS334H1K6P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.33 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	29 mm
length	31.5 mm
negative tolerance	2.5%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	TR
positive tolerance	2.5%
Rated (AC) voltage (URac)	650 V
Rated (DC) voltage (URdc)	1600 V
Terminal pitch	27.5 mm
width	19 mm
Base Number Matches	1

Preview

Download Datasheet

View All

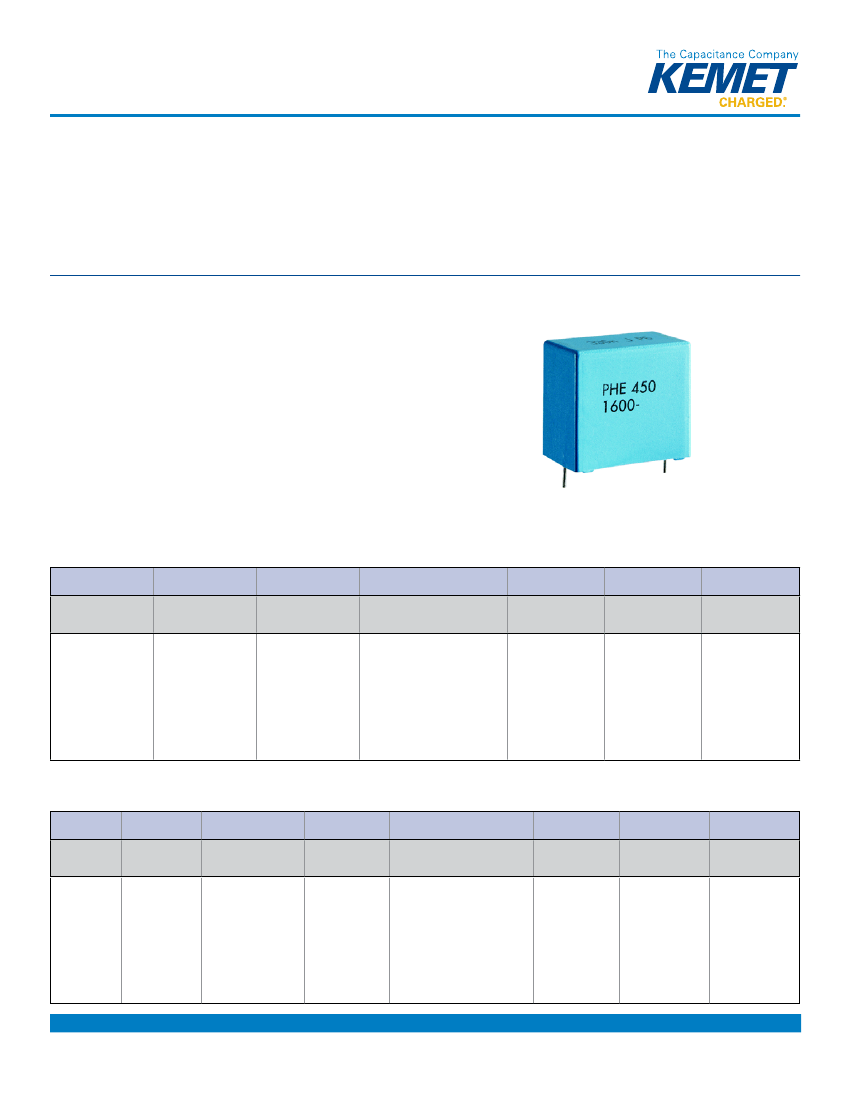

General Purpose, Pulse and DC Transient Suppression

PHE450 Series Double Metallized Polypropylene Film

Overview

The PHE450 Series is a polypropylene dielectric with double

metallized polyester film as electrodes. The capacitor is

encapsulated in self-extinguishing resin in a box of material

meeting the requirements of UL 94 V–0.

Applications

Typical applications include high frequency applications with

high current stress such as deflection circuits in televisions and

protection circuits in switched mode power supply (SMPS) and

electronic ballasts.

Benefits

•

Rated voltage: 250 – 3,000 VDC

Rated voltage: 180 – 1,000 VAC

Capacitance range: 0.00033 – 10 µF

Lead spacing: 7.5 – 37.5 mm

Capacitance tolerance: ±5%, other tolerances on request

Climatic category: 55/105/56, IEC 60068–1

Tape and reel packaging in accordance with IEC 60286–2

RoHS Compliant and lead-free terminations

Category temperature range of -55˚C to +105˚C

Legacy Part Number System

PHE450

Series

Metallized

Polypropylene

5180

Capacitance Code (pF)

Digits 2 – 4 indicate the first

three digits of the capacitance

value.

First digit indicates the number

of zeros to be added.

Capacitance

Tolerance

J = ±5%

On request:

F = ±1%

G = ±2%

H = ±2.5%

K = ±10%

M = ±20%

B04

Optional Box Code

See Dimension

Table

R06

Lead and

Packaging Code

See Ordering

Options Table

Rated Voltage (VDC) Lead Spacing (mm)

H = 250

K = 400

M = 630

P = 1000

R = 1600

S = 2000

T = 2500

X = 3000

K = 7.5

A = 10.0

B = 15.0

D = 22.5

F = 27.5

R = 37.5

New KEMET Part Number System

Capacitor

Class

F = Film

450

Series

Metallized

Polypropylene

Lead Spacing (mm)

K = 7.5

A = 10.0

B = 15.0

D = 22.5

F = 27.5

R = 37.5

Size Code

See Dimension

Table

183

Capacitance Code (pF)

First two digits indicate the

two most significant digits

of the capacitance value in

picofarads. The third digit

is the number of following

zeros.

Capacitance

Tolerance

J = ±5%

On request:

F = ±1%

G = ±2%

H = ±2.5%

K = ±10%

M = ±20%

1K0

Rated Voltage

(VDC)

250 = 250

400 = 400

630 = 630

1K0 = 1000

1K6 = 1600

2K0 = 2000

2K5 = 2500

3K0 = 3000

Lead and

Packaging Code

See Ordering

Options Table

One world. One KEMET

F3033_PHE450 • 4/4/2013
