FBI6K1M1-4: DescriptionBridge Rectifier Diode, 1 Phase, 3A, 800V V(RRM), Silicon, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size32KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

FBI6K1M1-4 Overview

Bridge Rectifier Diode, 1 Phase, 3A, 800V V(RRM), Silicon, PLASTIC PACKAGE-4

FBI6K1M1-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	R-PSFM-T4
Contacts	4
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSFM-T4
JESD-609 code	e3
Maximum non-repetitive peak forward current	170 A
Number of components	1
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
surface mount	NO
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

FBI6A1M1.......FBI6M1M1

6 Amp. Glass Passivated Bridge Rectifier

Dimensions in mm.

25

3.2

3.5

Plastic

Case

Voltage

50 to 1000 V.

Current

6.0 A.

®

_

1

+ 0.05

+

• Glass Passivated Junction Chips.

L

7.5

10

suffix

–4

1

0.7

•

UL recognized under component index file

number E130180.

•

Lead and polarity identifications.

•

Case: Molded Plastic.

Ideal for printed circuit board (P.C.B.).

High surge current capability.

The plastic material carries U/L recognition 94 V-O.

17.5

8

• Mounting Instructions

•

High temperature soldering guaranteed: 260 ºC – 10 sc.

•

Recommended mounting torque: 8 Kg.cm.

Maximum Ratings, according to IEC publication No. 134

FBI6A FBI6B

1M1

FBI6D

1M1

200

140

FBI6G

1M1

400

280

FBI6J

1M1

600

420

FBI6K FBI6M

1M1

800

560

1000

700

V

RRM

V

RMS

I

F(AV)

I

FSM

I

2

t

V

DIS

T

j

T

stg

Peak recurrent reverse voltage (V)

Maximum RMS voltage (V)

Max. Average forward current with heatsink

without heatsink

10 ms. peak forward surge current

(Jedec Method)

Current squared time (rating for fusing)

(1ms.<t<10ms. Tc = 25ºC)

Dielectric strength (terminals to case, AC 1 min.)

Operating temperature range

Storage temperature range

50

35

100

70

6.0 A at 100 ºC

3.0 A at 40 ºC

170 A

140 A sec

2000 V

– 55 to + 150 °C

– 55 to +150 ºC

2

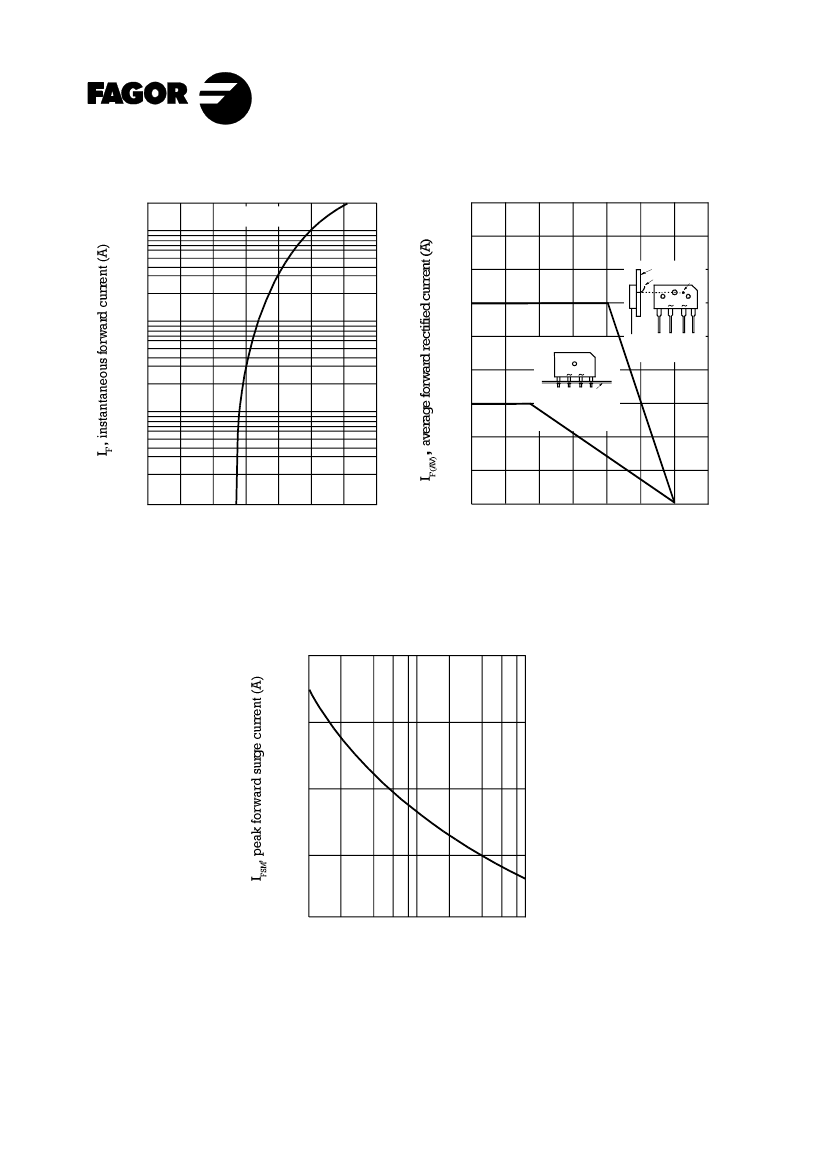

Electrical Characteristics at Tamb = 25°C

V

F

I

R

th (j-c)

R

th (j-a)

Max. forward voltage drop per diode at I

F

= 3.0 A

Max. instantaneous reverse current at V

RRM

MAXIMUM THERMAL RESISTANCE

Junction-Case. With Heatsink.

Junction-Ambient. Without Heatsink.

1.05 V

5 A

2.2 ºC/W

22 ºC/W

Jan - 00
