3PB25

Description
Three Phase 25 Amp Silicon Bridge Rectifier
File Size124KB,1 Pages
ManufacturerEDAL
Websitehttp://www.edal.com/
Download Datasheet Compare View All

3PB25 Overview

Three Phase 25 Amp Silicon Bridge Rectifier

Edal

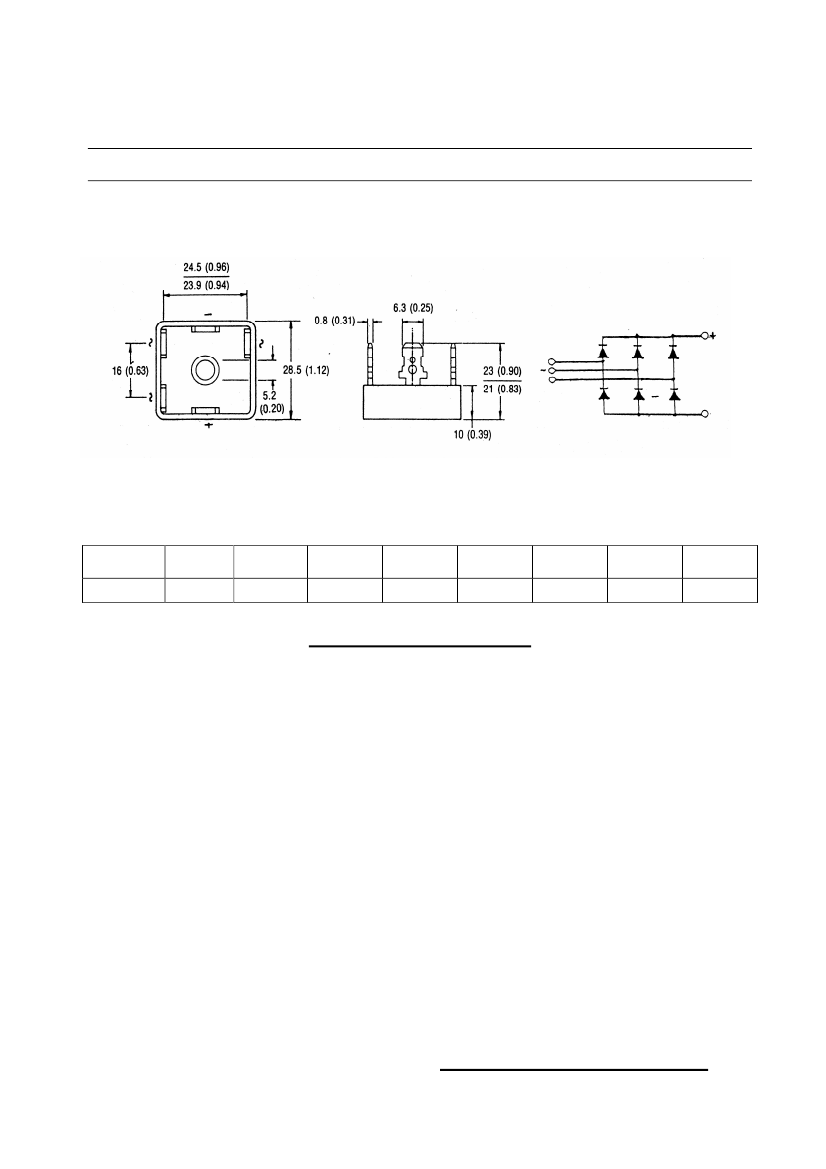

SERIES 3PB25
Three Phase 25 Amp Silicon Bridge Rectifier
PART
NUMBER
PIV/LEG
3PB2505
50 (V)
3PB2510
100 (V)
3PB2520
200 (V)
3PB2540
400 (V)
3PB2560
600 (V)
3PB2580
800 (V)
3PB25100
1000 (V)
3PB25120
1200 (V)
ELECTRICAL RATINGS
MAX. DC OUTPUT CURRENT @ 60o C CASE
MAX. PEAK SINGLE CYCLE NON-REPETITIVE
FORWARD CURRENT @ 8.3 mSec
MAX. FORWARD VOLTAGE DROP @ If = 40 AMPS/LEG, Tj = 25o C
MAX. I2 t FUSING (t = 8.3 mSec) @ Tj = 150o C
THERMAL RESISTANCE (JUNCTION TO CASE)
25 AMPS DC
375 AMPS
1.26 VOLTS
580 AMPS
1.4 K/W
MAX. JUNCTION TEMPERATURE RANGE
MAX. DC REVERSE CURRENT/JUNCTION @ 25o C
RMS ISOLATION VOLTAGE, TERMINAL TO BASE
(203) 467-2591 TEL
(203) 469-5928 FAX
Email: Info@ edal.com
Internet:http://www.edal.com
-40 TO +150o C
100 u AMPS
2500 VOLTS
