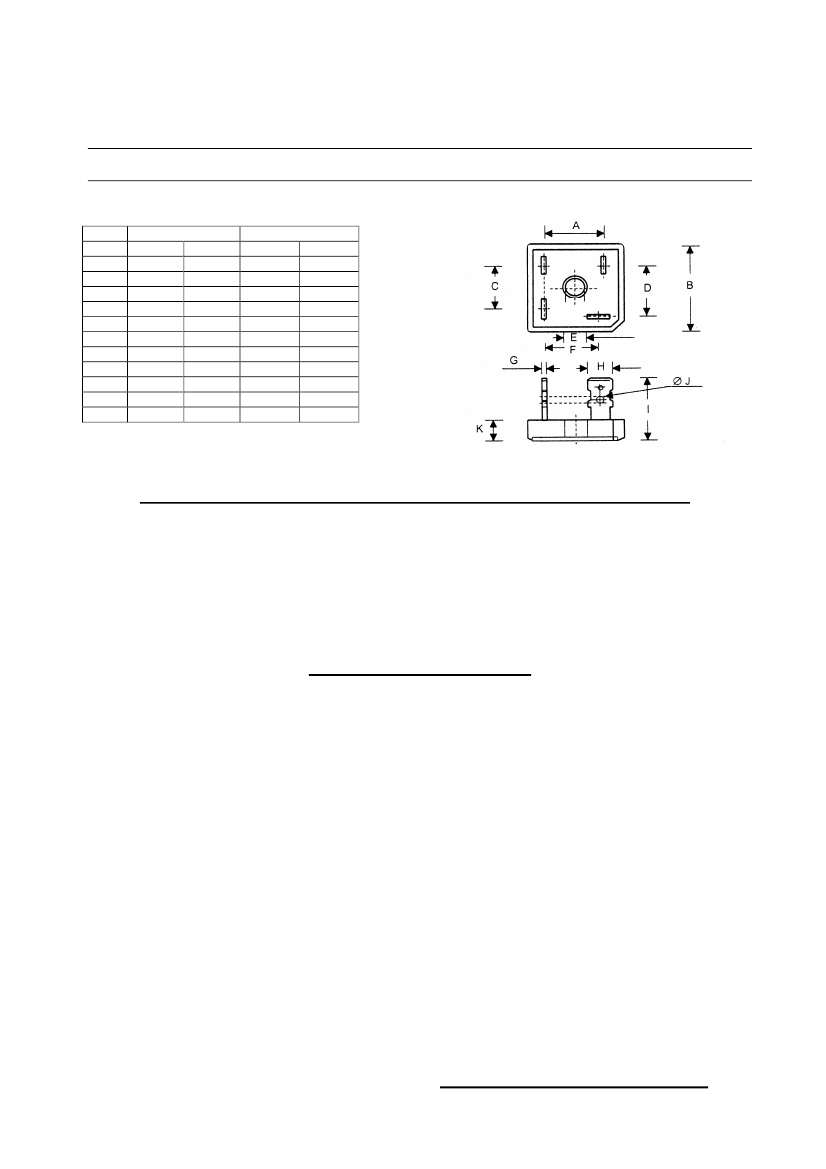

SERIES B1203

Silicon Bridge Rectifier

DIM.

INCHES

MIN.

MAX.

0.688

0.728

1.12

1.13

0.53

0.57

0.618

0.658

0.20

0.21

0618

0.658

0.030

0.134

0.248

0.252

0.826

0.905

0.09

0.10

0.28

0.31

MILLIMETERS

MIN.

MAX.

17.5

18.5

28.4

28.7

13.5

14.5

15.7

16.7

5.1

5.3

15.7

16.7

0.76

0.86

6.3

6.4

21.0

23.0

2.4

2.6

7.30

7.90

PART NUMBER

B1203-5

B1203-10

B1203-20

B1203-30

B1203-40

B1203-50

PIV/LEG

100

200

300

400

500

PART NUMBER

B1203-60

B1203-70

B1203-80

B1203-100

B1203-120

PIV/LEG

600

700

800

1000

1200

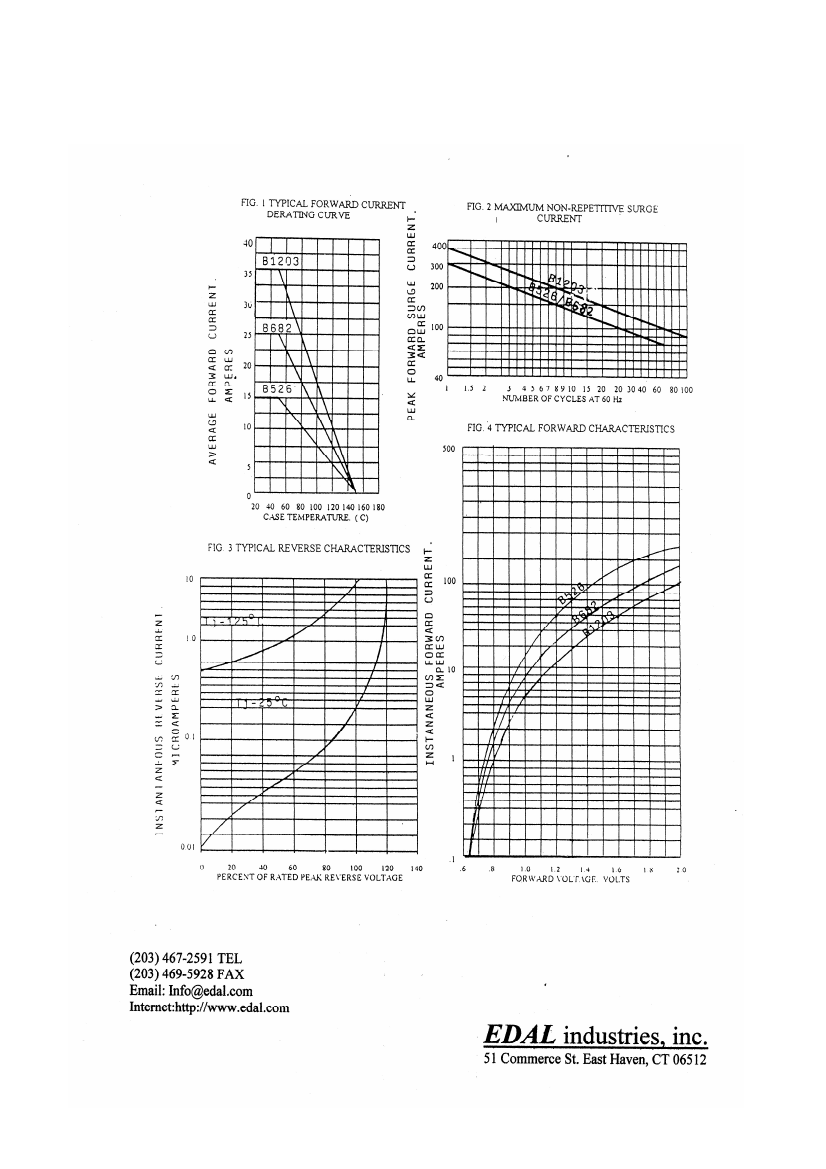

ELECTRICAL RATINGS

MAXIMUM FORWARD CURRENT SINGLE PHASE,

FULL WAVE @ 50o C

MAXIMUM SINGLE CYCLE SURGE CURRENT (AMPS)

MAXIMUM FORWARD VOLTAGE DROP @ 25o C

Io AMPS (FULL WAVE)

V VOLTS (PER SECTION)

MAXIMUM REVERSE CURRENT @ PIV @ 25o C

THERMAL RESISTANCE, JUNCTION TO CASE @ RATED LOAD

MAXIMUM JUNCTION TEMPERATURE

RECOGNIZED UNDER UL FILE # E57830

35.0 AMPS

400 AMPS

17.5

1.1

10.0 uA

1.85o C o C/W

175o C

(203) 467-2591 TEL

(203) 469-5928 FAX

Email: Info@ edal.com

Internet:http://www.edal.com

EDAL

industries, inc.

51 Commerce St. East Haven, CT 06512
