M5 SERIES
P14SG-XXXXEM 1 KV ISOLATED 3 W REGULATED SINGLE OUTPUT DIP24
Available Inputs:
5, 12 and 24 VDC
Available Outputs:
3.6, 5, 7.2, 9, 12, 15 and 18 VDC
Other specifications please enquire.
Electrical Specifications
(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)
Input Specifications
Voltage range
Filter
Isolation Specifications
Rated voltage
Leakage current
Resistance
Capacitance
Output Specifications
Voltage accuracy
Ripple and noise (at 20 MHz BW)
Short circuit protection
Line voltage regulation
Load voltage regulation
Temperature coefficient
General Specifications
Efficiency
Switching frequency
Environmental Specifications
Operating temperature (ambient)
Storage temperature
Derating
Humidity
Cooling
Physical Characteristics
Dimensions
Weight
Case material
+/- 10 %
Pi Network
1000 Vdc
1 mA
10
9
Ohm
60 pF typ.
+/- 2 %, max.
75 mV p-p, max.
Continuous , restart automatic
+/- 0,5 % max.
+/- 0,5 % max.
+/- 0,02 % / °C
65 % to 85 %
125 KHz, typ.
-25°C to +71°C
- 55 °C to + 125 °C
See graph
Up to 90 %, non condensing
Free air convection
31,75 x 20,32 x 10,16 mm
1,25 x 0,80 x 0,40 inches
14,5 g
Nickel Coated Copper
Examples of Partnumbers/Modelcode
PART
NO.
INPUT
VOLTAGE
(VDC)
Nominal
INPUT
CURRENT
NO LOAD
INPUT
CURRENT
FULL
LOAD
OUTPUT
VOLTAGE
(VDC)
OUTPUT
CURRENT
(max. mA)
EFFICIENCY FULL LOAD
(% TYP.)
P14SG-0505EM
P14SG-0512EM
P14SG-1205EM
P14SG-1209EM
P14SG-1212EM
P14SG-2405EM
5
5
12
12
12
24
68
65
58
55
54
24
938
910
376
362
357
192
5
12
5
9
12
5
600
250
600
333
250
600
64
66
66
69
70
65
M5 SERIES
P14SG-XXXXEM 1 KV ISOLATED 3 W REGULATED SINGLE OUTPUT DIP24

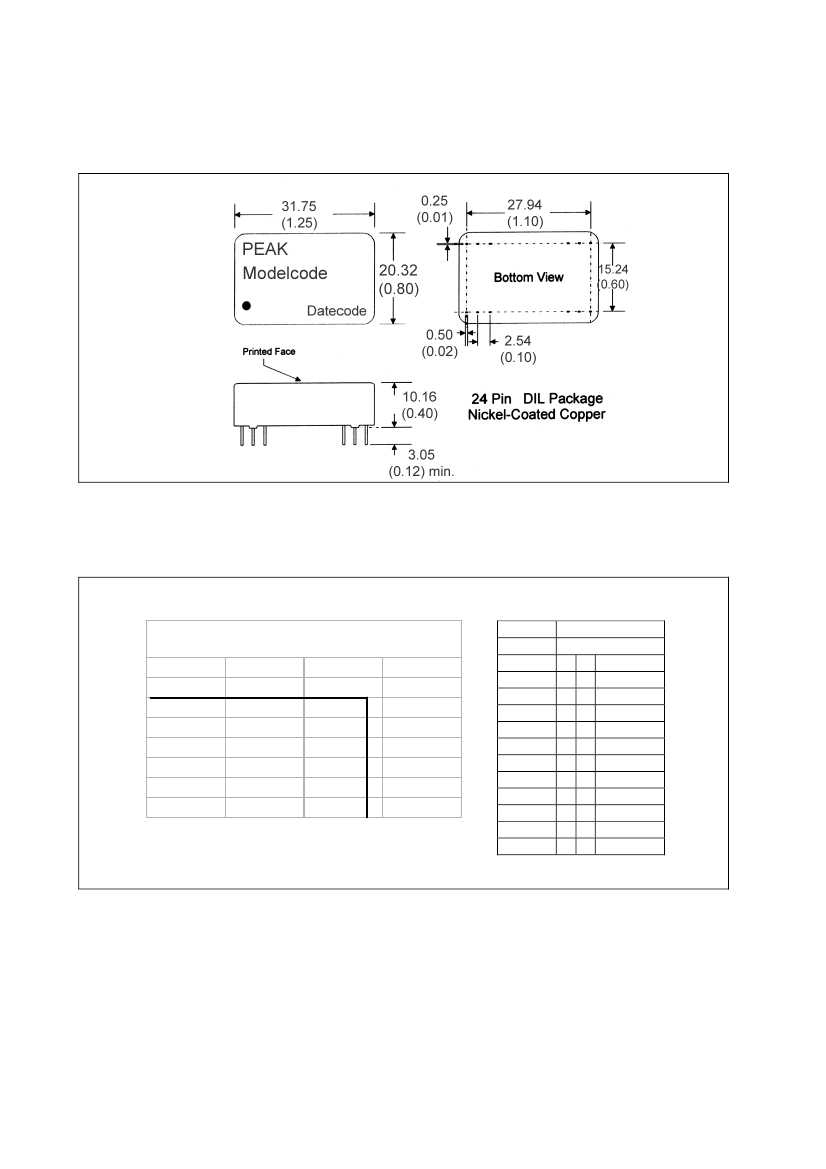

Dimensions
Derating Graph and Pinning
Output
Temperature Derating Graph
Ambient Temperature ° C
71
3.00 W
Safe Operating Area
-25
0
40
80
100
Pin
#
1
2
3
10
11
12
13
14
15
22
23
24
Connection
Single
+ V Input
NC
NC
- V Output
+ V Output
- V Input
- V Input
+ V Output
- V Output
NC
NC
+ V Input
Specification can be changed without notice.
REV:2 / 09.2001
Copyright PEAK electronics GmbH
