F3B3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> F3B3

F3B3: Description30 A, SILICON, RECTIFIER DIODE, DO-5; CategoryDiscrete semiconductor diode; File Size837KB，2 Pages; ManufacturerEDAL; Websitehttp://www.edal.com/

Download Datasheet Parametric View All

F3B3 Overview

30 A, SILICON, RECTIFIER DIODE, DO-5

F3B3 Parametric

Parameter Name	Attribute value
Maker	EDAL
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	POWER
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-5
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	300 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	190 °C
Minimum operating temperature	-65 °C
Maximum output current	30 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	1000 µA
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

Preview

Download Datasheet

View All

Edal

SERIES F3, F4, F5, F6, F7

Silicon Power Rectifiers

Edal Series F power rectifiers are stud mounted DO-5 packages. Because the silicon junction is carefully fitted within a glass-to-metal

hermetically sealed case, reliable operation is assured, even with extreme humidity and under other severe environmental conditions. The series F

power rectifiers are completely corrosion resistant. A double diffused, passivated junction technique is utilized to provide stable uniform

electrical characteristics. Inherent in their design is very low leakage currents and excellent surge handling capability. Standard, bulk avalanche

and fast recovery types in voltage ratings from 50 to 1500 volts PIV are available. Series F power rectifiers are also available in reverse polarity

offering extended application parameters. Edal Series F power rectifiers are ideal for a broad range of commercial and military uses including

power supplies, ultrasonic systems, inverters, welders, emergency generators, battery chargers, DC motors, and motor controls

Specifications

PIV

VOLTS

100

200

250

300

350

400

500

600

700

800

1000

1200

1500

AMP

F3A3

F3B3

F3C3

F3D3

F3E3

F3F3

F3G3

F3H3

F3K3

F3M3

F3N3

F3P3

F3R3

F3S3

AMP

F4A3

F4B3

F4C3

F4D3

F4E3

F4F3

F4G3

F4H3

F4K3

F4M3

F4N3

F4P3

F4R3

F4S3

AMP

F5A3

F5B3

F5C3

F5D3

F5E3

F5F3

F5G3

F5H3

F5K3

F5M3

F5N3

F5P3

F5R3

F5S3

AMP

F6A3

F6B3

F6C3

F6D3

F6E3

F6F3

F6G3

F6H3

F6K3

F6M3

F6N3

F6P3

F6R3

F6S3

AMP

F7A3

F7B3

F7C3

F7D3

F7E3

F7F3

F7G3

F7H3

F7K3

F7M3

F7N3

F7P3

F7R3

F7S3

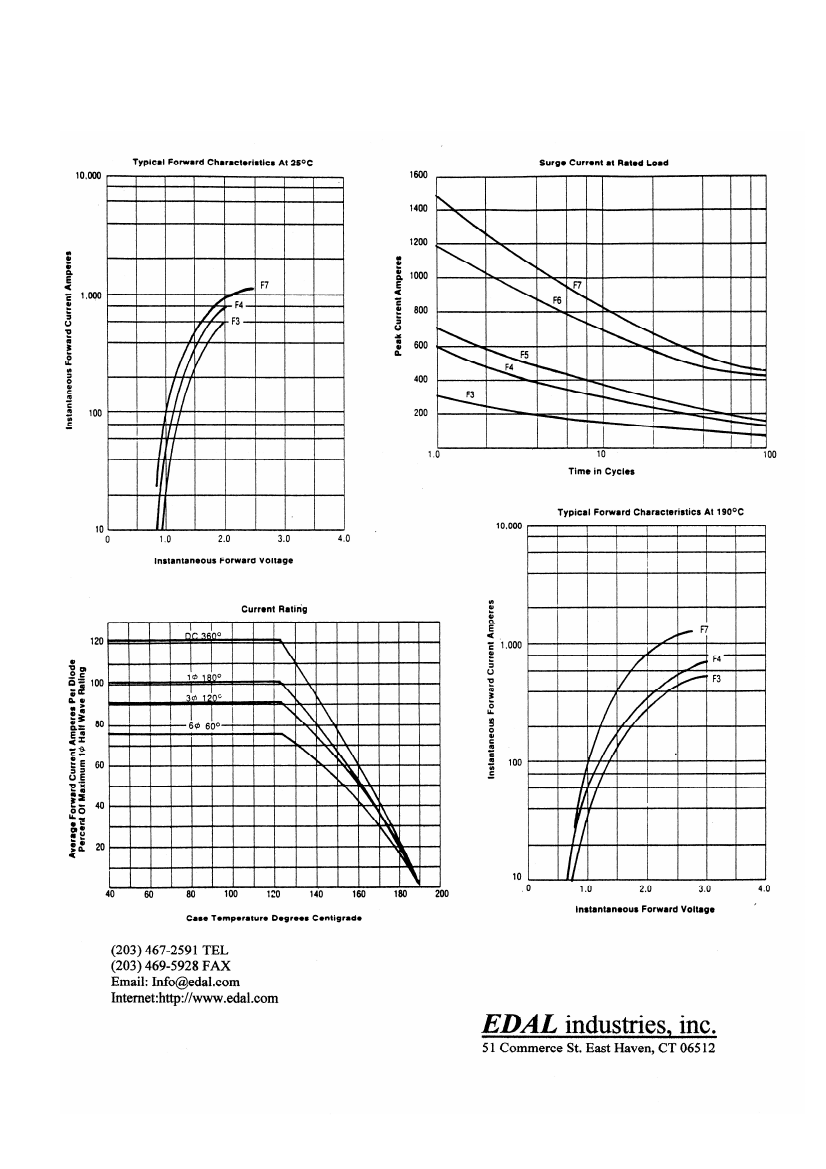

ELECTRICAL RATINGS

Maximum Forward Current Single Phase Half Wave

Case Temperature oC

Io AMPS

Maximum Surge Current

Single Cycle Amps

Maximum Forward Drop @ 25oC Case

Io Amps

Vf Volts

Maximum Reverse Current

FCA @ 150oC ma

Maximum I2T (less than 8ms)

Amps2-Sec

Reverse Power for Bulk Avalanche (Joules)

Storage Temperature oC

Operating Temperature oC

Thermal Impedance Maximum

(Junction to Case) oC/Watt Maximum

Jedec Style

124

300

1.3

1.0

350

0.6

-65 to 200

-65 to 190

1.8

DO5

123

600

1.2

2.0

1500

0.6

-65 to 200

-65 to 190

1.5

DO5

122

700

1.15

2.0

2100

0.6

-65 to 200

-65 to 190

1.25

DO5

138

1200

200

1.29

2.0

6000

0.6

-65 to 200

-65 to 190

0.65

DO5

132

1500

200

1.2

2.0

9300

0.6

-65 to 200

-65 to 190

0.6

DO5
