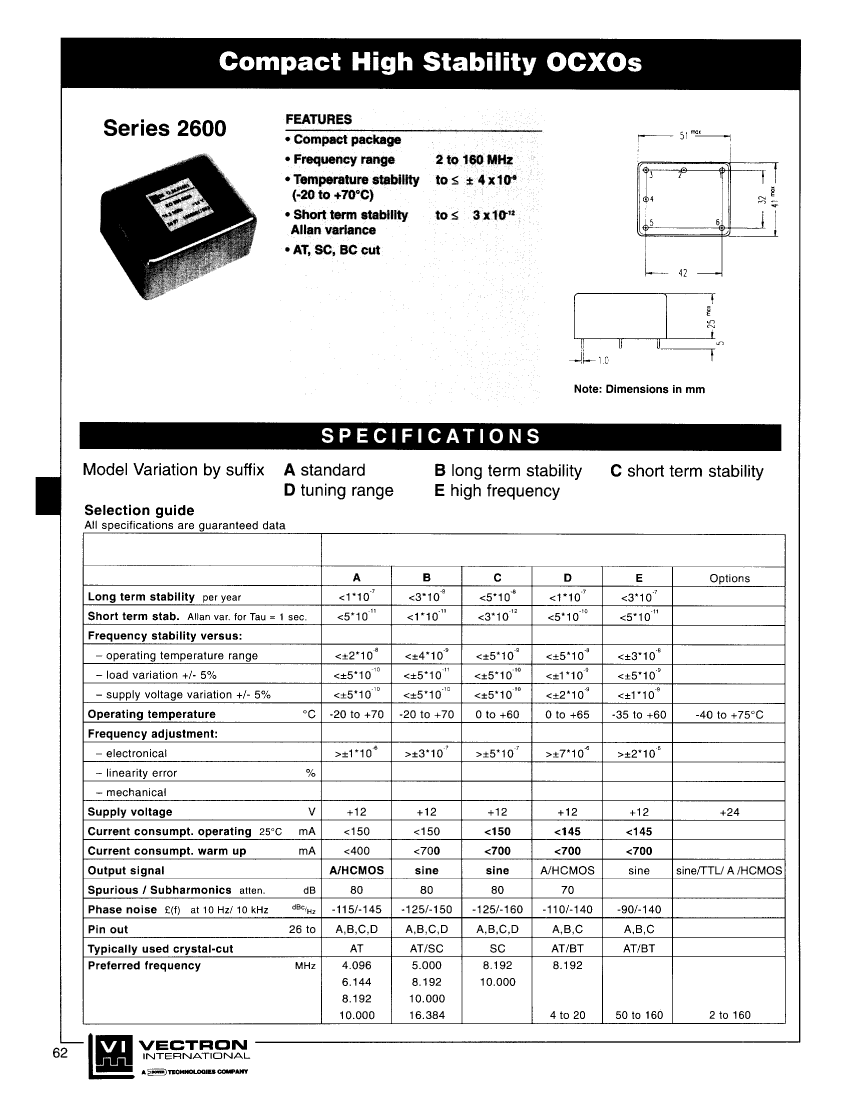

Preview

OC-2600D@FREQ-OUT31: DescriptionHCMOS/ACMOS Output Clock Oscillator, 4MHz Min, 20MHz Max; CategoryPassive components oscillator; File Size79KB，1 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric Compare View All

OC-2600D@FREQ-OUT31 Overview

HCMOS/ACMOS Output Clock Oscillator, 4MHz Min, 20MHz Max

OC-2600D@FREQ-OUT31 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	AT/BT CUT CRYSTAL
Ageing	0.1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.05%
Frequency Stability - Voltage	0.002 ppm
input power	1.74 W
Manufacturer's serial number	2600
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	20 MHz
Minimum operating frequency	4 MHz
Maximum operating temperature	65 °C
Minimum operating temperature
Oscillator type	HCMOS/ACMOS
Oven power supply voltage	12V
physical size	51mm x 41mm x 25mm
Nominal supply voltage	12 V
surface mount	NO
Preheating power	8.4 W
Base Number Matches	1

Preview

Download Datasheet

View All

OC-2600D@FREQ-OUT31 Related Products

	OC-2600D@FREQ-OUT31	OC-2600D@8.192MHZ	OC-2600E@FREQ-OUT1	OC-2600A@6.144MHZ	OC-2600B@5.000MHZ	OC-2600C@10.000MHZ
Description	HCMOS/ACMOS Output Clock Oscillator, 4MHz Min, 20MHz Max	HCMOS/ACMOS Output Clock Oscillator, 8.192MHz Nom	Sine Output Oscillator, 50MHz Min, 160MHz Max	HCMOS/ACMOS Output Clock Oscillator, 6.144MHz Nom	Sine Output Oscillator, 5MHz Nom	Sine Output Oscillator, 10MHz Nom
Reach Compliance Code	compliant	unknown	compliant	unknown	unknown	unknown
Other features	AT/BT CUT CRYSTAL	AT/BT CUT CRYSTAL	AT/BT CUT CRYSTAL	AT CUT CRYSTAL	AT/SC CUT CRYSTAL	SC CUT CRYSTAL
Ageing	0.1 PPM/YEAR	0.1 PPM/YEAR	0.3 PPM/YEAR	0.1 PPM/YEAR	0.03 PPM/YEAR	0.05 PPM/YEAR
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO
frequency stability	0.05%	0.05%	0.03%	0.02%	0.004%	0.005%
Frequency Stability - Voltage	0.002 ppm	0.002 ppm	0.001 ppm	0.0005 ppm	0.0005 ppm	0.0005 ppm
input power	1.74 W	1.74 W	1.74 W	1.8 W	1.8 W	1.8 W
Manufacturer's serial number	2600	2600	2600	2600	2600	2600
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	65 °C	65 °C	60 °C	70 °C	70 °C	60 °C
Oscillator type	HCMOS/ACMOS	HCMOS/ACMOS	SINE	HCMOS/ACMOS	SINE	SINE
Oven power supply voltage	12V	12V	12V	12V	12V	12V
physical size	51mm x 41mm x 25mm	51mm x 41mm x 25mm	51mm x 41mm x 25mm	51mm x 41mm x 25mm	51mm x 41mm x 25mm	51mm x 41mm x 25mm
Nominal supply voltage	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	NO	NO	NO	NO	NO	NO
Preheating power	8.4 W	8.4 W	8.4 W	4.8 W	8.4 W	8.4 W
Base Number Matches	1	1	1	1	-	-
Nominal operating frequency	-	8.192 MHz	-	6.144 MHz	5 MHz	10 MHz
