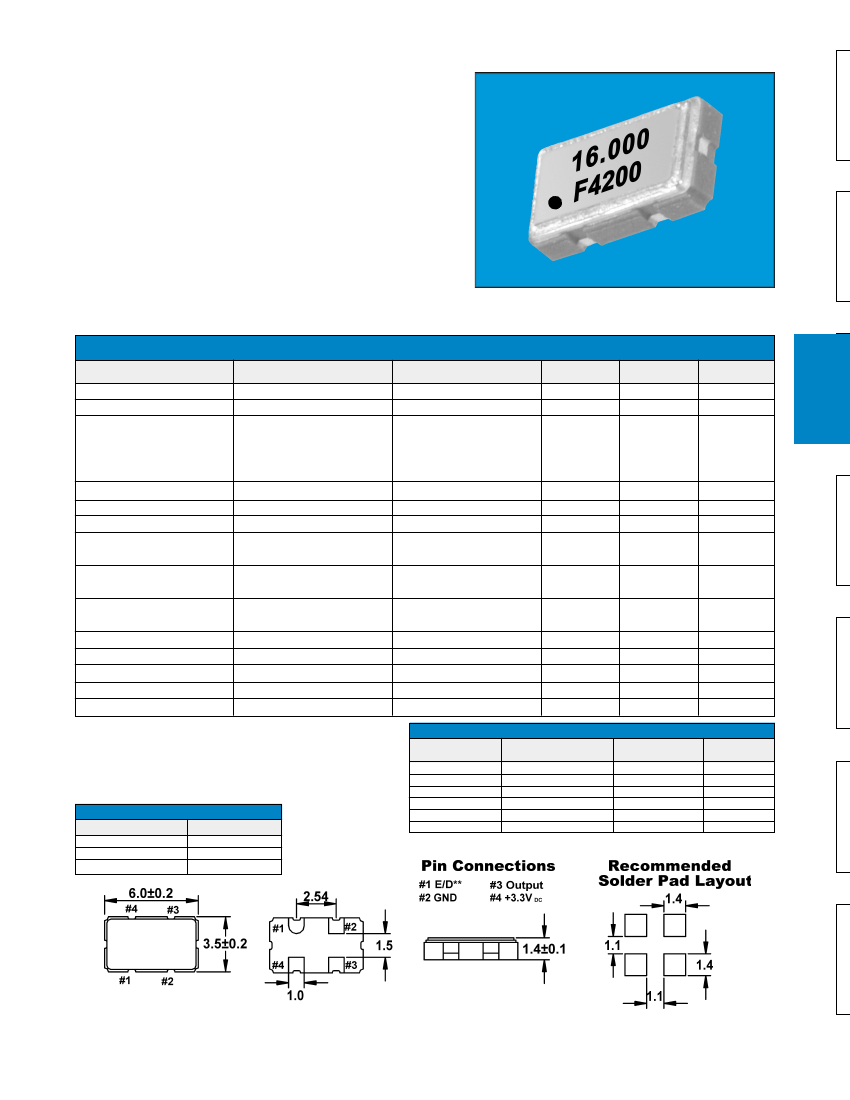

ULTRA MINIATURE 3.3V HCMOS SMD OSCILLATOR

F4200

FEATURES

State of the art 3.3V technology appears in the newest edition to the

Fox surface mount oscillator line, the F4200. With its ultra miniature

ceramic package 6.0 x 3.5 x 1.5mm, it offers one of the smallest footprints

in the industry.

3.3V Operation

Ultra-Miniature SMD Package

Low Current

Standby Function

(10µA MAX)

Tape and Reel

(2,000 pcs. STD)

• ELECTRICAL CHARACTERISTICS (V

DD

= 3.3V, C

L

= 15pF)

PARAMETERS

Frequency Range (Fo)

Frequency Stability

Temperature Range

Operating

(T

OPR

)

Storage

Supply Voltage

Input Current

Output Symmetry

Rise Time

Fall Time

Output Voltage

Output Current

(T

STG

)

(V

DD

)

(I

DD

)

(T

R

)

(T

F

)

(V

OL

)

(V

OH

)

(I

OL

)

(I

OH

)

FREQUENCY RANGE

1.544 ~ 50.000

CONDITIONS

All Conditions

1

'R' Version

1.544

~

50.000

MIN

1.544

-100

-10

-40

-30

+2.97

40

MAX

50.000

+100

+70

+85

+3.63

20

60

6

0.33

2

-2

15

10

150

10

Frequency Range

(MHz)

1.544 ~ 50.000

OSCILLATORS

UNITS

MHz

PPM

ºC

V

mA

%

ns

V

mA

pF

µA

mS

nS

mS

1.544 ~ 50.000

Output Load

Standby Current

Output Enable Time

Output Disable Time

Start-up Time

(T

S

)

1

1.65V

0.33V to 2.97V

2.97V to 0.33V

I

OL

= 2 mA

I

OH

= -2 mA

V

OL

= 0.33 V

V

OH

= 2.97 V

HCMOS

V

IL

£

0.99 V

See Table

2

See Table

2

2.97

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change,

aging, shock, and vibration.

2

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

NOTE: A 0.01µF capacitor should be placed between V

DD

(Pin 4 and GND (Pin 2) to minimize

power supply line noise.

See page 44 for mechanical specifications, test circuits, and output waveform.

All specifications subject to change without notice. Rev. 12/04/01

MODEL NUMBER SELECTION

Frequency Stability

(PPM)

1

±100

±50

±25

Operating Temperature

(ºC)

-10 ~ +70

-40 ~ +85

-10 ~ +70

-40 ~ +85

-10 ~ +70

-40 ~ +85

Model Number

F4200

F4200R

F4205

F4205R

F4206

F4206R

• ENABLE / DISABLE FUNCTION

Pin 1

OPEN

'1' Level V

IH

³

2.31 V

'0' Level V

IL

£

0.99 V

2

OUTPUT (Pin 3)

ACTIVE

High Z

All dimensions are in millimeters.

See page 74 for tape and reel specifications.

FOXElectronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

941-693-0099

FAX 941-693-1554

http://www.foxonline.com

59
