QS74LCX162H244PV datasheet, PDF

Datasheet> All Categories > logic> logic> QS74LCX162H244PV

QS74LCX162H244PV: DescriptionBus Driver, LVC/LCX/Z Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48,; Categorylogic logic; File Size198KB，7 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS74LCX162H244PV Overview

Bus Driver, LVC/LCX/Z Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48,

QS74LCX162H244PV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SSOP, SSOP48,.4
Reach Compliance Code	unknown
Other features	BUS HOLD INPUTS ELIMINATE THE NEED FOR EXTERNAL PULLUP RESISTORS
Control type	ENABLE LOW
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
Load capacitance (CL)	30 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.018 A
Number of digits	4
Number of functions	4
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP48,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3.3 V
Prop。Delay @ Nom-Sup	4.5 ns
propagation delay (tpd)	5.2 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Base Number Matches	1

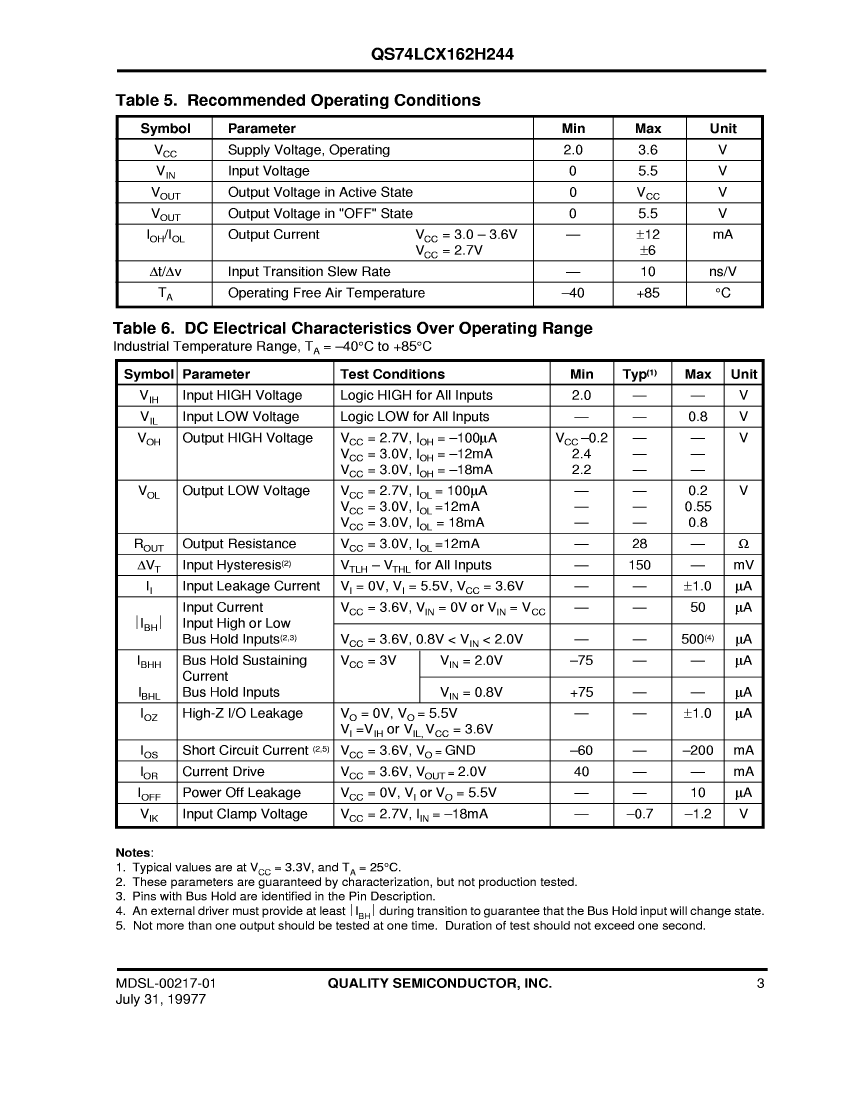

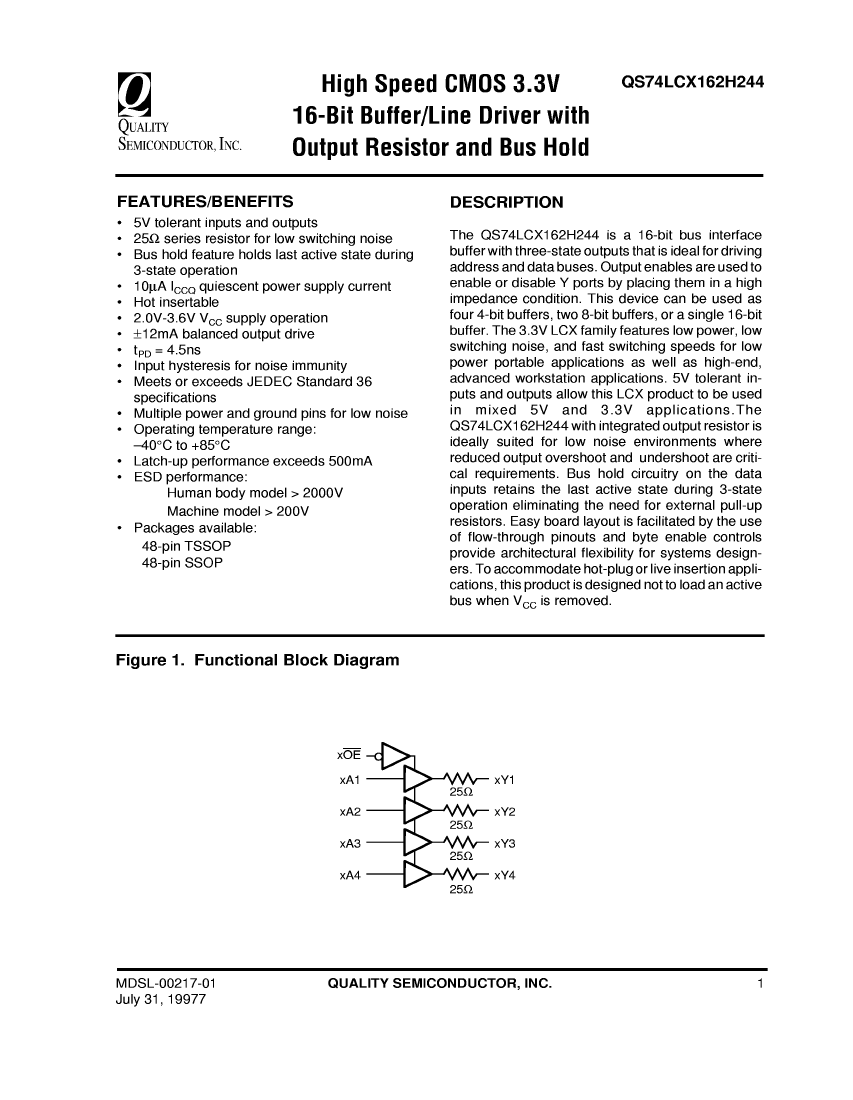

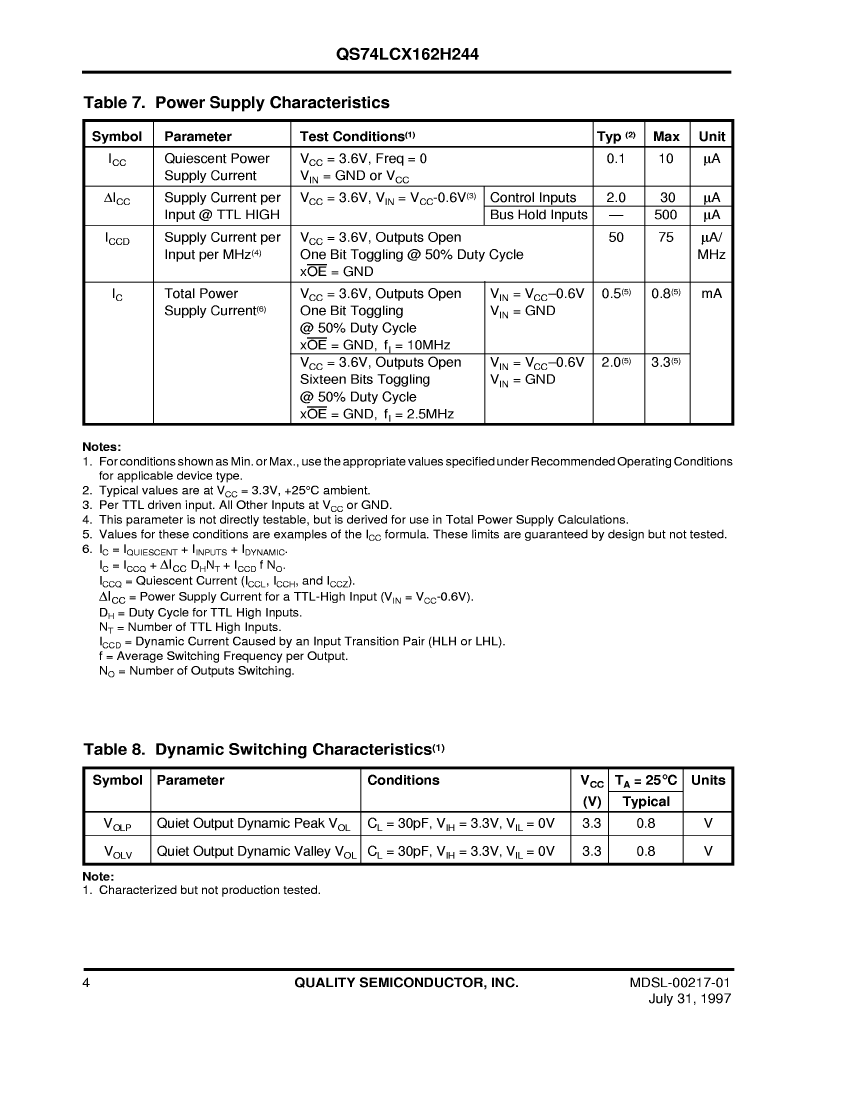

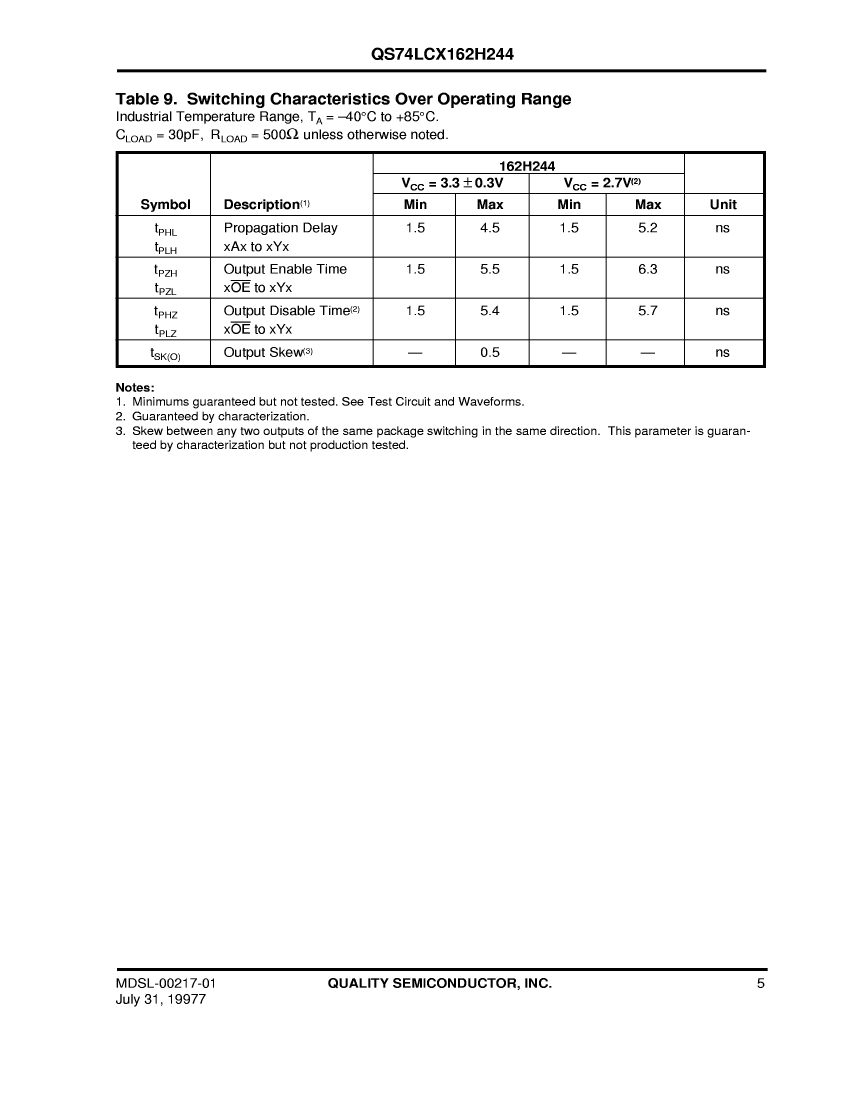

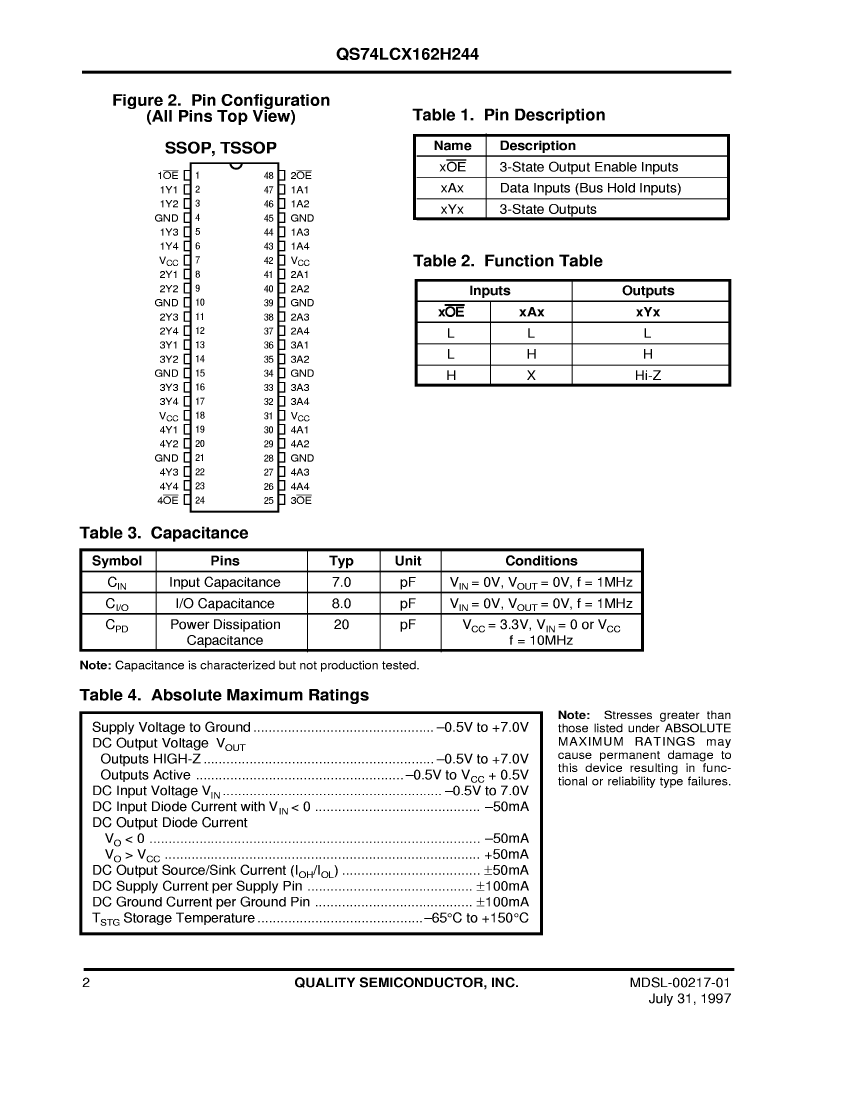

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

QS74LCX162H244PV Related Products

	QS74LCX162H244PV	QS74LCX162H244PA
Description	Bus Driver, LVC/LCX/Z Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48,	Bus Driver, LVC/LCX/Z Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48,
Is it Rohs certified?	incompatible	incompatible
package instruction	SSOP, SSOP48,.4	TSSOP, TSSOP48,.3,20
Reach Compliance Code	unknown	unknown
Other features	BUS HOLD INPUTS ELIMINATE THE NEED FOR EXTERNAL PULLUP RESISTORS	BUS HOLD INPUTS ELIMINATE THE NEED FOR EXTERNAL PULLUP RESISTORS
Control type	ENABLE LOW	ENABLE LOW
series	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0
Load capacitance (CL)	30 pF	30 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.018 A	0.018 A
Number of digits	4	4
Number of functions	4	4
Number of ports	2	2
Number of terminals	48	48
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP
Encapsulate equivalent code	SSOP48,.4	TSSOP48,.3,20
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	4.5 ns	4.5 ns
propagation delay (tpd)	5.2 ns	5.2 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
