74HCT9046AP datasheet, PDF - EEWORLD Datasheet

74HCT9046AP: DescriptionIC PHASE LOCKED LOOP, PDIP16, PLL or Frequency Synthesis Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size895KB，36 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

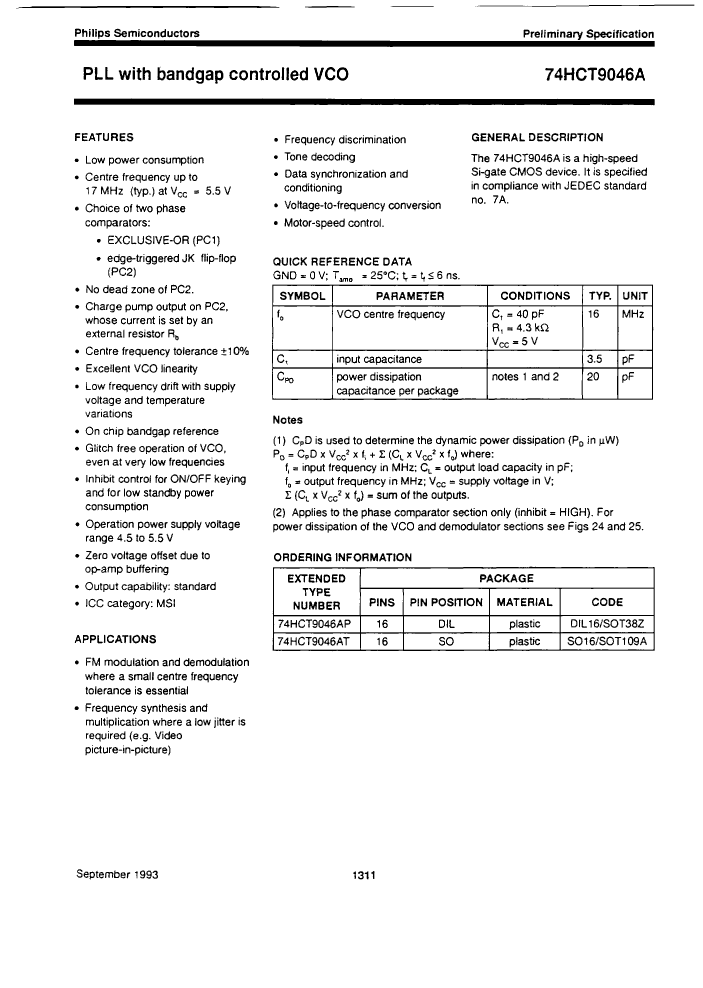

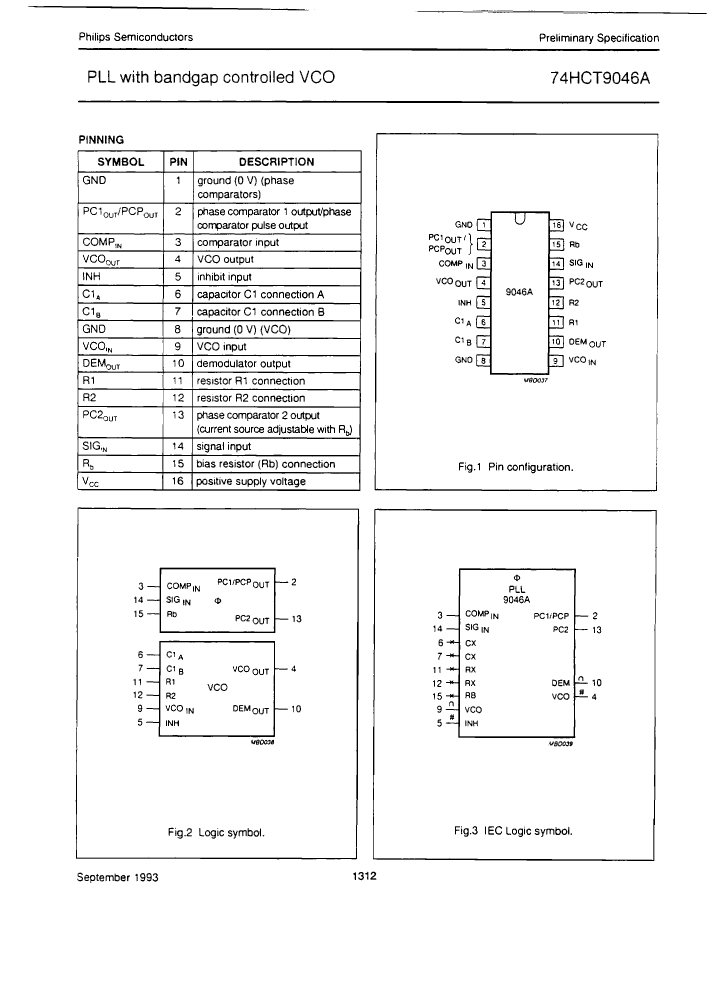

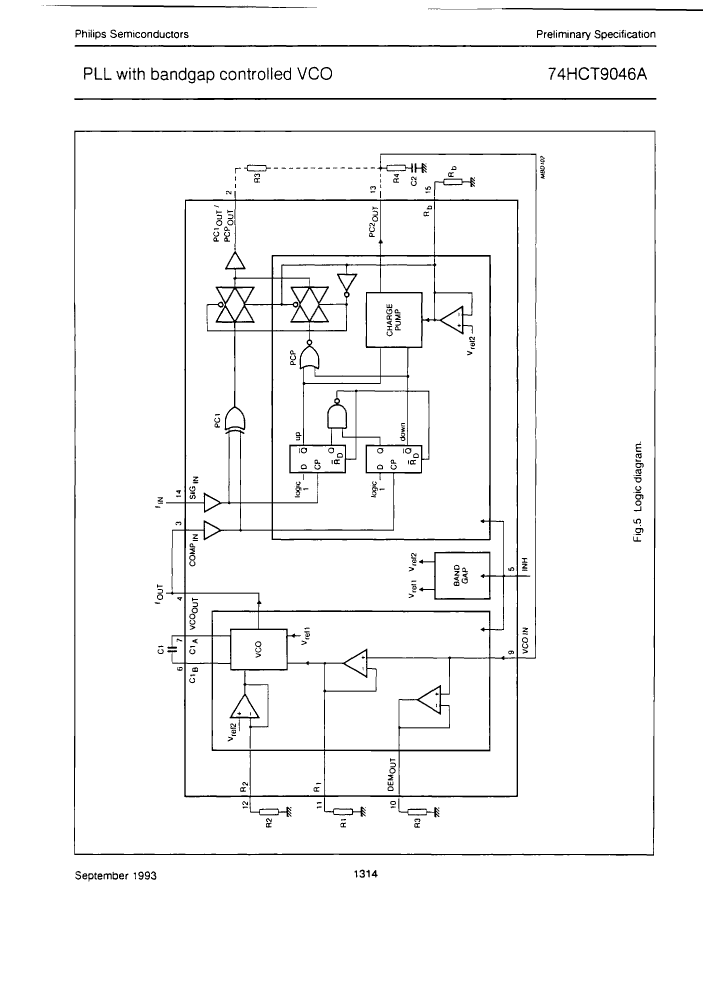

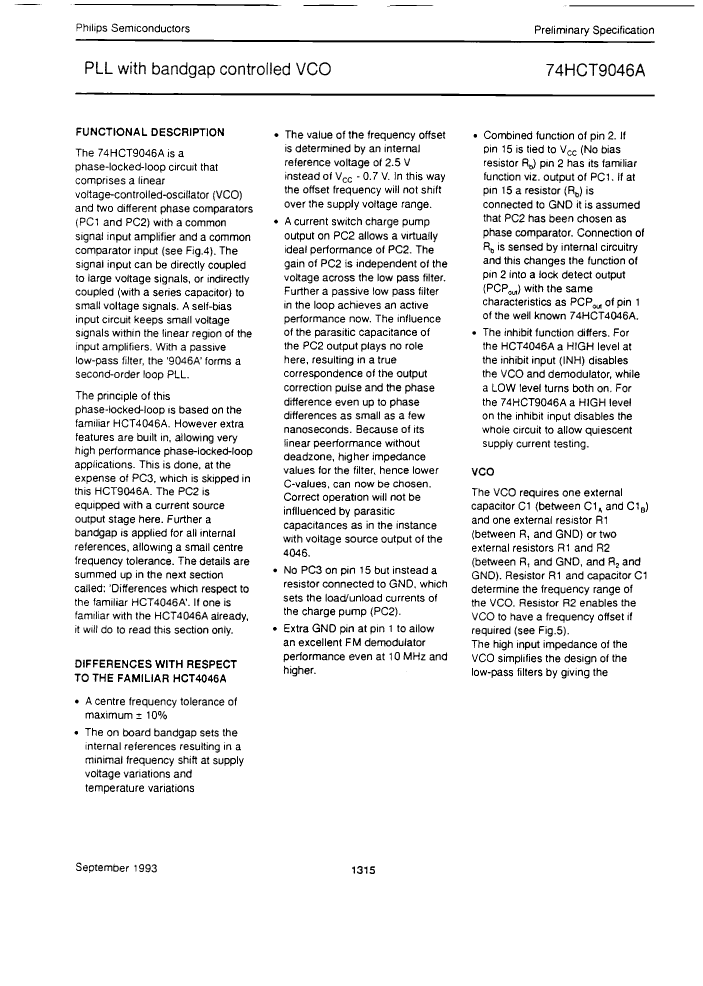

74HCT9046AP Overview

IC PHASE LOCKED LOOP, PDIP16, PLL or Frequency Synthesis Circuit

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
Other features	WITH TWO PHASE COMPARATORS
Analog Integrated Circuits - Other Types	PHASE LOCKED LOOP
JESD-30 code	R-PDIP-T16
length	19.025 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	74HCT9046AP	74HCT9046AT-T	74HCT9046AT
Description	IC PHASE LOCKED LOOP, PDIP16, PLL or Frequency Synthesis Circuit	IC PHASE LOCKED LOOP, PDSO16, PLL or Frequency Synthesis Circuit	IC PHASE LOCKED LOOP, PDSO16, PLL or Frequency Synthesis Circuit
package instruction	DIP,	SOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH TWO PHASE COMPARATORS	WITH TWO PHASE COMPARATORS	WITH TWO PHASE COMPARATORS
Analog Integrated Circuits - Other Types	PHASE LOCKED LOOP	PHASE LOCKED LOOP	PHASE LOCKED LOOP
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
length	19.025 mm	9.9 mm	9.9 mm
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.2 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	3.9 mm	3.9 mm
Base Number Matches	1	1	1
