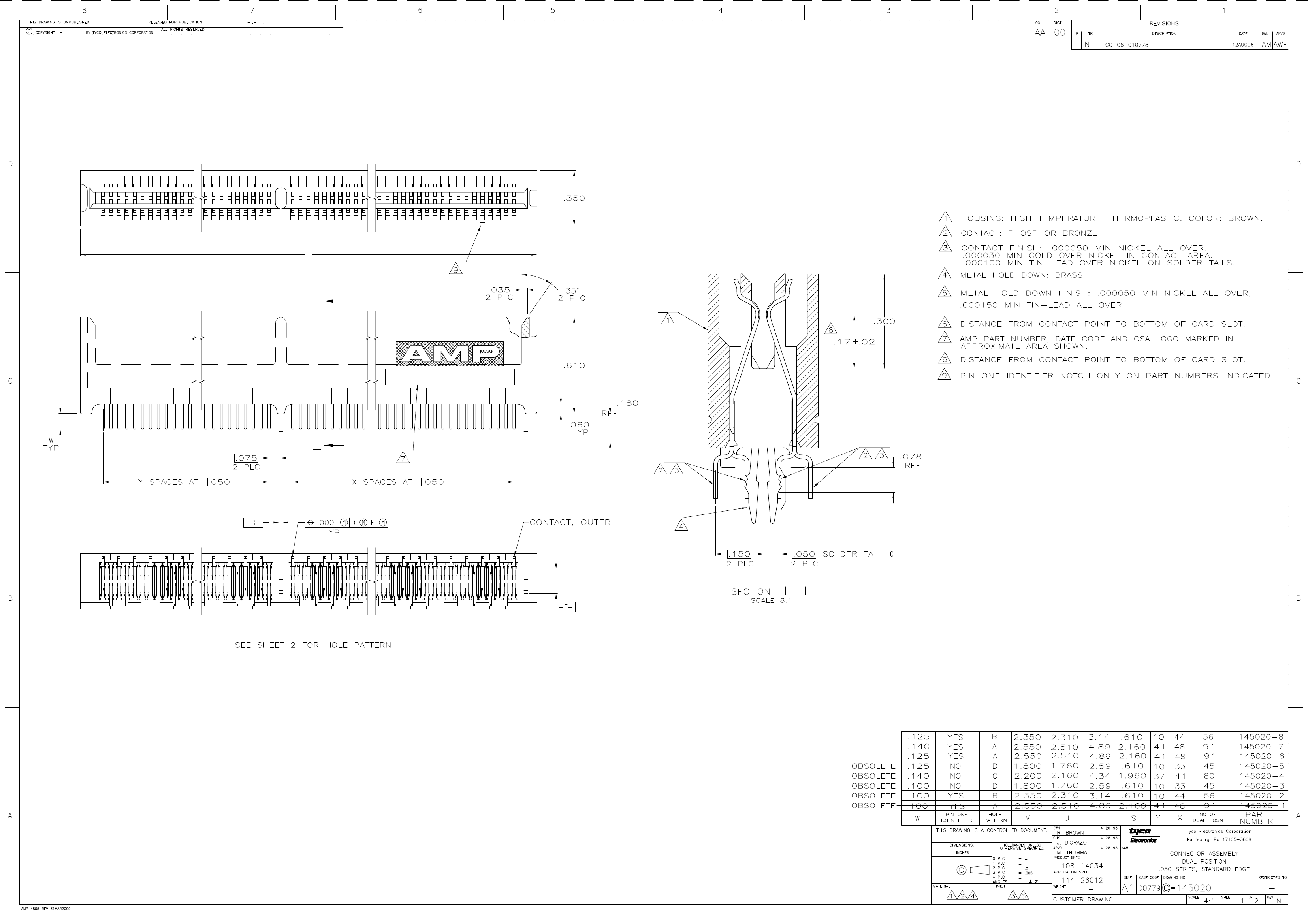

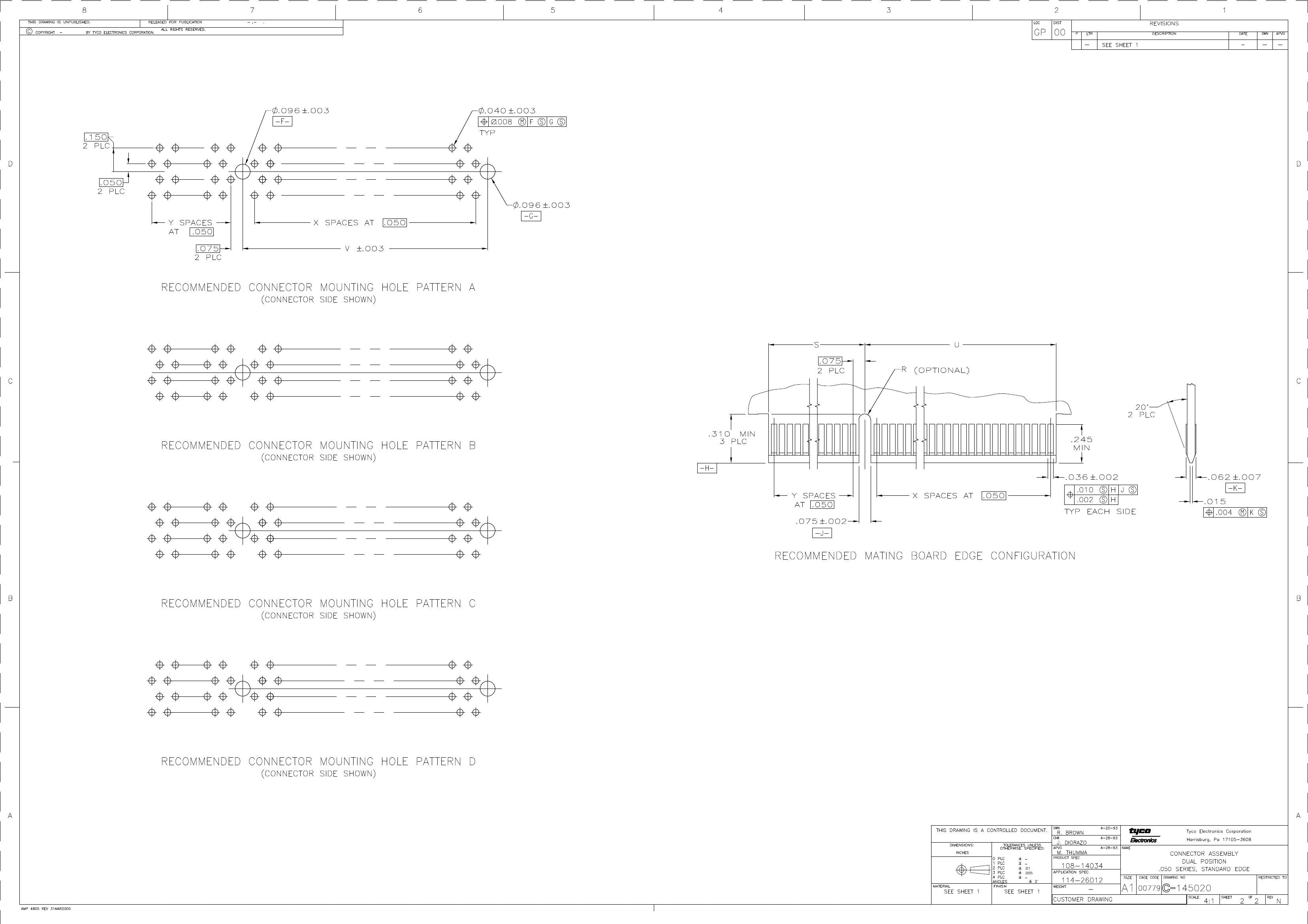

EDGE CONNECTOR,PCB MNT,RECEPT,112 CONTACTS,0.05 PITCH,PC TAIL TERMINAL
| Parameter Name | Attribute value |
| Reach Compliance Code | unknow |
| Other features | 1KEY-2 METAL HOLDDOWNS |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.35 inch |
| subject depth | 0.61 inch |
| body length | 3.14 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 30 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 500VAC V |
| Durability | 100 Cycles |
| maximum insertion force | .695 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BROWN |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | 145 |
| Plug contact pitch | 0.05 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.1 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 112 |
| Evacuation force-minimum value | .139 N |
| Base Number Matches | 1 |
| 145020-2 | 145020-1 | 145020-4 | 145020-6 | 145020-3 | |
|---|---|---|---|---|---|
| Description | EDGE CONNECTOR,PCB MNT,RECEPT,112 CONTACTS,0.05 PITCH,PC TAIL TERMINAL | EDGE CONNECTOR,PCB MNT,RECEPT,182 CONTACTS,0.05 PITCH,PC TAIL TERMINAL | 160 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER | 182 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER | EDGE CONNECTOR,PCB MNT,RECEPT,90 CONTACTS,0.05 PITCH,PC TAIL TERMINAL |
| Reach Compliance Code | unknow | unknown | unknown | unknown | unknown |
| Other features | 1KEY-2 METAL HOLDDOWNS | 1KEY-2 METAL HOLDDOWNS | STAGGERED CONFIGURATION | STAGGERED CONFIGURATION | 1KEY-2 METAL HOLDDOWNS |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Manufacturer's serial number | 145 | 145 | 145020 | 145020 | 145 |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 112 | 182 | 160 | 182 | 90 |
| Board mount options | SPLIT BOARD LOCK | SPLIT BOARD LOCK | - | - | SPLIT BOARD LOCK |
| body width | 0.35 inch | 0.35 inch | - | - | 0.35 inch |
| subject depth | 0.61 inch | 0.61 inch | - | - | 0.61 inch |
| body length | 3.14 inch | 4.89 inch | - | - | 2.59 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | - | - | RECEPTACLE |
| Contact to complete cooperation | AU ON NI | AU ON NI | - | - | AU ON NI |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | - | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | - | - | RECTANGULAR |
| Contact resistance | 30 mΩ | 30 mΩ | - | - | 30 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | - | - | BELLOWED TYPE |
| Dielectric withstand voltage | 500VAC V | 500VAC V | - | - | 500VAC V |
| Durability | 100 Cycles | 100 Cycles | - | - | 100 Cycles |
| maximum insertion force | .695 N | .695 N | - | - | .695 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | - | - | 1000000000 Ω |
| Insulator color | BROWN | BROWN | - | - | BROWN |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | - | - | THERMOPLASTIC |
| Plug contact pitch | 0.05 inch | 0.05 inch | - | - | 0.05 inch |
| Number of connectors | ONE | ONE | - | - | ONE |
| PCB row number | 4 | 4 | - | - | 4 |
| Minimum operating temperature | -55 °C | -55 °C | - | - | -55 °C |
| PCB contact pattern | STAGGERED | STAGGERED | - | - | STAGGERED |
| PCB contact row spacing | 2.54 mm | 2.54 mm | - | - | 2.54 mm |
| Plating thickness | 30u inch | 30u inch | - | - | 30u inch |
| Rated current (signal) | 1 A | 1 A | - | - | 1 A |
| Guideline | UL, CSA | UL, CSA | - | - | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | - | - | COMMERCIAL |
| Terminal length | 0.1 inch | 0.1 inch | - | - | 0.1 inch |
| Evacuation force-minimum value | .139 N | .139 N | - | - | .139 N |
| Objectid | - | 302309208 | 1416350996 | 1416351008 | 302309204 |
