BWP-12/125-D48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BWP-12/125-D48

BWP-12/125-D48: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,; CategoryPower/power management The power supply circuit; File Size250KB，4 Pages; ManufacturerC&D

Download Datasheet Parametric Compare View All

BWP-12/125-D48 Overview

DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,

BWP-12/125-D48 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP12/24,.6
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ALSO HAVE ANOTHER OUTPUT OF -12V
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	18 V
Nominal input voltage	48 V
JESD-30 code	R-PDMA-P12
JESD-609 code	e0
Maximum load regulation	0.5%
Number of functions	1
Output times	2
Number of terminals	12
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
Maximum output current	0.125 A
Maximum output voltage	12.12 V
Minimum output voltage	11.88 V
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP12/24,.6
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	3 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

A SUBSIDIARY OF C&D TECHNOLOGIES

Dual Output

BWP Models

DIP-Packaged, Standard-Pinout

3 Watt, DC/DC Converters

Features

■

Low cost! High quality!

Highly reliable, 100% SMT construction

Standard DIP package and pinout

No external components required

±5, ±12 or ±15 Volt outputs

Choice of 3 wide input ranges:

4.5-9 Volts

9-18 Volts

18-72 Volts

Guaranteed efﬁciencies to 75%

Fully isolated, 500Vdc guaranteed

Internal input/output ﬁltering

Output current limiting

–40 to +75°C operation with no derating

UL1950/C22.2 No. 950/IEC950 certiﬁed

Modiﬁcations and customs for OEM’s

■

The proven cost-effectiveness, quality and long-term reliability that has come to

deﬁne DATEL’s standard, 3W, dual-output, DIP-packaged DC/DC converters (see

BST 3W Models) is now available in the "other standard pinout" (see next page)

made popular by off-shore suppliers. These newly designed BWP Models exploit

totally automated SMT assembly techniques and do not contain any trimpots, "wet"

aluminum electrolytic capacitors, or manually soldered "ﬂying" leads. Their made-

in-the-USA quality and affordable pricing are rapidly making them the converters of

choice in many existing applications.

BWP DC/DC converters bring true component-like convenience to design-

ers of modern distributed power systems. Exploiting an efﬁcient, high-frequency

(170-200kHz), ﬂyback topology and high-density SMT assembly techniques, BWP

DC/DC’s have enough space to include input (pi type) and output ﬁlters within their

package. They are fully isolated (500Vdc guaranteed) and do not require any exter-

nal components to meet published speciﬁcations. They operate, without derating,

over the full –40 to +75°C temperature range.

Output voltages are either ±5, ±12 or ±15 Volts. Input voltage ranges are either

4.5-9V ("D5" models), 9-18V ("D12" models) or an ultra-wide 18-72V ("D48" mod-

els). Output transient response time is a quick 200µsec, and output ripple and noise

are typically 75mVp-p. All models are certiﬁed to UL1950, CSA 22.2 No. 950 and

IEC950. Full EMI/EMC characterizations are currently in progress.

DATEL’s BWP Model 3W DC/DC’s are ideal replacements for other more costly,

less reliable power converters as well as excellent choices for new design-ins in

systems demanding small size, low cost and high reliability.

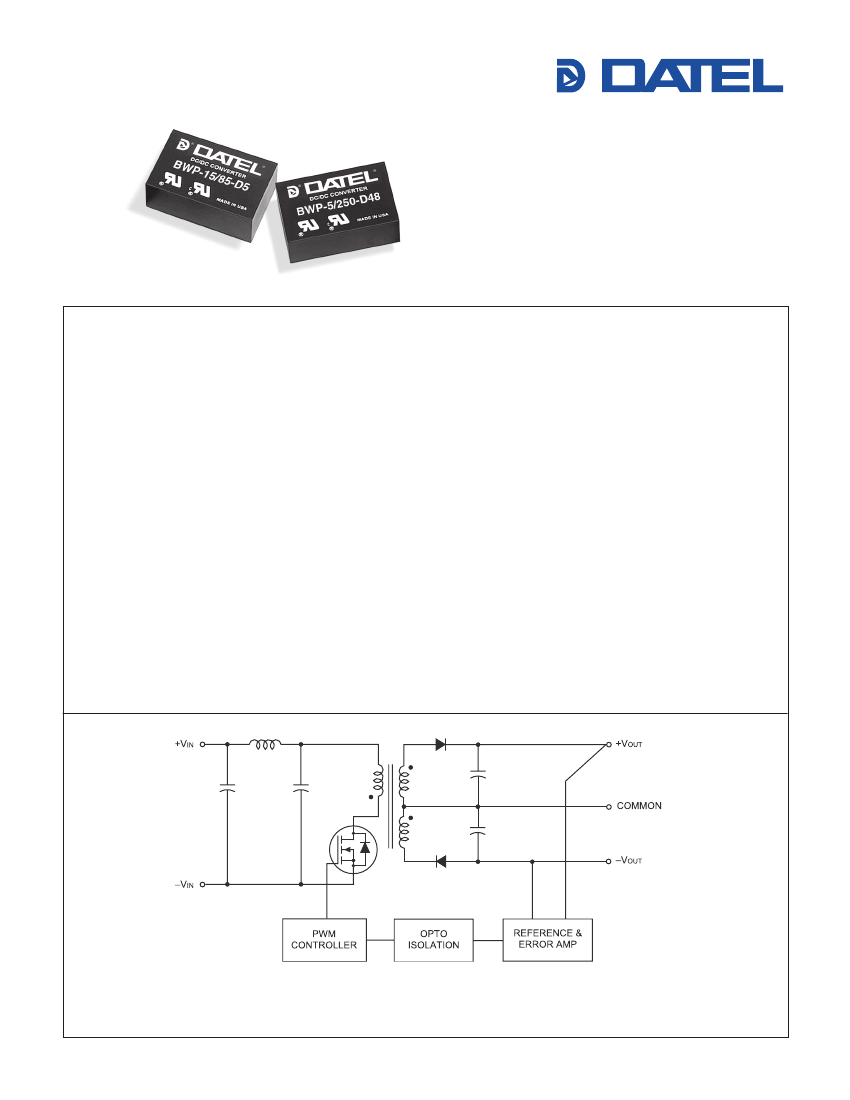

Figure 1. Simpliﬁed Schematic

DATEL, Inc., Mansﬁeld, MA 02048 (USA)

•

Tel: (508)339-3000, (800)233-2765 Fax: (508)339-6356

•

Email: sales@datel.com

•

Internet: www.datel.com

BWP-12/125-D48 Related Products

	BWP-12/125-D48	BWP-15/100-D12	BWP-5/250-D48	BWP-15/100-D48	BWP-15/85-D5	BWP-12/125-D12	BWP-5/250-D12	BWP-12/105-D5
Description	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 3W, Hybrid,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ALSO HAVE ANOTHER OUTPUT OF -12V	ALSO HAVE ANOTHER OUTPUT OF -15V	ALSO HAVE ANOTHER OUTPUT OF -5V	ALSO HAVE ANOTHER OUTPUT OF -15V	ALSO HAVE ANOTHER OUTPUT OF -15V	ALSO HAVE ANOTHER OUTPUT OF -12V	ALSO HAVE ANOTHER OUTPUT OF -5V	ALSO HAVE ANOTHER OUTPUT OF -12V
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V	18 V	72 V	72 V	9 V	18 V	18 V	9 V
Minimum input voltage	18 V	9 V	18 V	18 V	4.5 V	9 V	9 V	4.5 V
Nominal input voltage	48 V	12 V	48 V	48 V	5 V	12 V	12 V	5 V
JESD-30 code	R-PDMA-P12	R-PDMA-P12	R-PDMA-P12	R-PDMA-P12	R-PDMA-P12	R-PDMA-P12	R-PDMA-P12	R-PDMA-P12
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum load regulation	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
Number of functions	1	1	1	1	1	1	1	1
Output times	2	2	2	2	2	2	2	2
Number of terminals	12	12	12	12	12	12	12	12
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	0.125 A	0.1 A	0.25 A	0.1 A	0.085 A	0.125 A	0.25 A	0.105 A
Maximum output voltage	12.12 V	15.15 V	5.05 V	15.15 V	15.15 V	12.12 V	5.05 V	12.12 V
Minimum output voltage	11.88 V	14.85 V	4.95 V	14.85 V	14.85 V	11.88 V	4.95 V	11.88 V
Nominal output voltage	12 V	15 V	5 V	15 V	15 V	12 V	5 V	12 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP12/24,.6	DIP12/24,.6	DIP12/24,.6	DIP12/24,.6	DIP12/24,.6	DIP12/24,.6	DIP12/24,.6	DIP12/24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	3 W	3 W	3 W	3 W	3 W	3 W	3 W	3 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO
package instruction	DIP, DIP12/24,.6	DIP, DIP12/24,.6	DIP, DIP12/24,.6	DIP, DIP12/24,.6	DIP, DIP12/24,.6	DIP, DIP12/24,.6	DIP, DIP12/24,.6	-
Maker	-	C&D	-	C&D	C&D	C&D	C&D	C&D
