Satellite Radio Low Noise Amplifier
2.2 - 2.4 GHz
Features
•
•
•
•
•
•
•
•
•
•
•
Low Noise Figure: 0.9 dB
High Gain: 17 dB
Adjustable Current
Single +3 V to +5 V Bias
Output Power: +10 dBm
50
Ω
Input / Output Match
Lead-Free SOT-26 Package
100% Matte Tin Plating over Copper
Halogen-Free “Green” Mold Compound
260°C Reflow Compatible
RoHS* Compliant Version of MAALSS0013
MAALSS0033
V2
Functional Schematic
VDD 1
VDD 2
GND
RF OUT
Description
M/A-COM’s MAALSS0033 LNA is a GaAs MMIC low
noise amplifier in a lead-free SOT-26 surface mount
plastic package. The MAALSS0033 employs a
monolithic 2-stage design featuring a convenient
50-ohm input/output impedance that minimizes the
number of external components required. The
device typically runs off a single 3 volt to 5 volt
supply and has an off chip resistor that can be used
to improve the linearity performance. The design
provides excellent performance from 2.2 to 2.4 GHz.
The MAALSS0033 is fabricated using M/A-COM’s
E/D process to realize low noise and high dynamic
range. The process features full passivation for
increased performance and reliability.
RF IN
GND
Pin Configuration
Pin
1
2
3
4
5
6
Pin Name
V
DD1
GND
RF IN
GND
RF OUT
V
DD2
Description
Stage 1 Voltage
Ground
RF input
Ground
RF output
Stage 2 Voltage
Absolute Maximum Ratings
2,3
Ordering Information
1
Part Number
MAALSS0033
MAALSS0033TR-3000
MAALSS0033SMB
Parameter
Package
Bulk Packaging
Input Power
Operating Voltages
Operating Temperature
Storage Temperature
Absolute Maximum
+8 dBm
+6 Volts
-40°C to +85°C
-40°C to +150°C
3000 Piece Tape and Reel
Sample Test Board
(Includes 5 Samples)
1. Reference Application Note M513 for reel size information.
2. Exceeding any one or combination of these limits may cause
permanent damage to this device.
3. M/A-COM does not recommend sustained operation near
these survivability limits.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RoHS
Compliant
Satellite Radio Low Noise Amplifier
2.2 - 2.4 GHz
Electrical Specifications: T
A
= 25°C, V
DD
= 5 V, Z
0
= 50Ω
Parameter
Gain
Noise Figure
Input Return Loss
Output Return Loss
1 dB Compression
Output IP3
Current
MAALSS0033
V2
Frequency
2.3 GHz
2.3 GHz
2.3 GHz
2.3 GHz
2.3 GHz
2.3 GHz
—
Units
dB
dB
dB
dB
dBm
dBm
mA
Min.
15
—
—
—
—
20
—
Typ.
17
0.9
12
13
10
26
26
Max.
19
1.5
—
—
—
—
30
Lead-Free

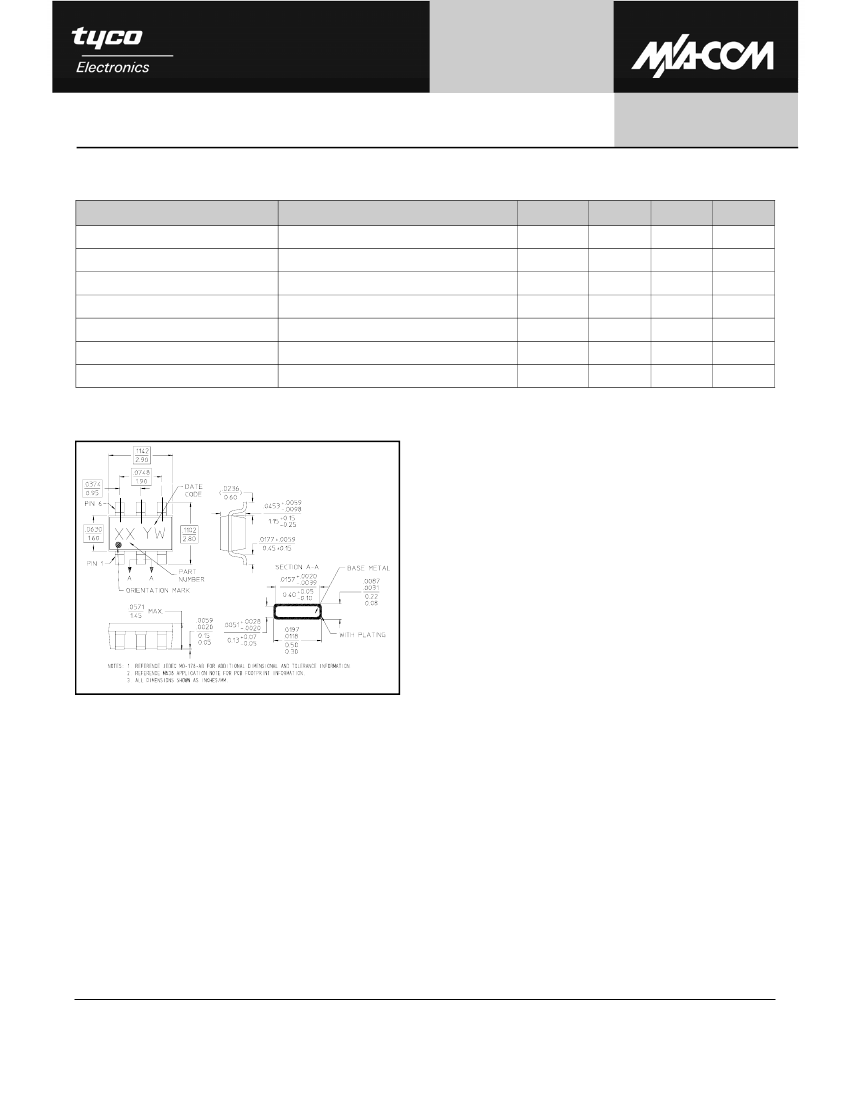

SOT-26 Plastic Package
†
Operating the MAALSS0033
To operate the device, follow these steps:
1. Ramp V
DD
to desired voltage, typically 3 to 5 V.
2. Set RF input.
3. Power down in reverse sequence.
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
†
Reference Application Note M538 for lead-free solder reflow
recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
2
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RoHS
Compliant
Satellite Radio Low Noise Amplifier
2.2 - 2.4 GHz
Application Schematic
Component List - Broadband
Part
C1
V
DD1
C3
V
DD2
C4
V
DD
MAALSS0033
V2
Value
0.5 pF
0.1 µF
5.6 nH
22.1KΩ
Case Size
0402
0402
0402
0402
Manufacturer
Murata
Murata
Coilcraft
Panasonic
C2-C4
L1
4
R1
GND
RF
OUT
RF
OUT
R1
5
RF
IN
L1
RF
IN
C2
C1
GND
Component List - Satellite Radio @ 5 V
Part
C1
C2
Value
0.5 pF
3.9 pF
0.01 µF
5.6 nH
22.1KΩ
Case Size
0402
0402
0402
0402
0402
Manufacturer
Murata
Murata
Murata
Coilcraft
Panasonic
Recommended PCB Configuration
C3-C4
L1
4
R1
5
4. Must have a tolerance of 2%.
5. Must have a tolerance of 1%.
C4
R1
C2
C3
L1
C1
3
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RoHS
Compliant
Satellite Radio Low Noise Amplifier
2.2 - 2.4 GHz
Application Schematic
MAALSS0033
V2
Component List - Satellite Radio @ 3.3 V
Part
C1
Value
0.5 pF
3.9 pF
0.01 µF
5.6 nH
100 nH
Case Size
0402
0402
0402
0402
0402
Manufacturer
Murata
Murata
Murata
Coilcraft
Coilcraft
V
DD1
C3
V
DD2
C4
V
DD
C2
C3-C4
L2
GND
RF
OUT
RF
OUT
L1
6
L2
RF
IN
L1
RF
IN
C2
C1
GND
6. Must have a tolerance of 1%.
Recommended PCB Configuration
C4
L2
C2
C3
L1
C1
4
M/A-COM Inc. and its affiliates reserve the right to make changes to the
product(s) or information contained herein without notice. M/A-COM makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does M/A-COM assume any liability
whatsoever arising out of the use or application of any product(s) or
information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Visit www.macom.com for additional data sheets and product information.
RoHS
Compliant
Satellite Radio Low Noise Amplifier
2.2 - 2.4 GHz

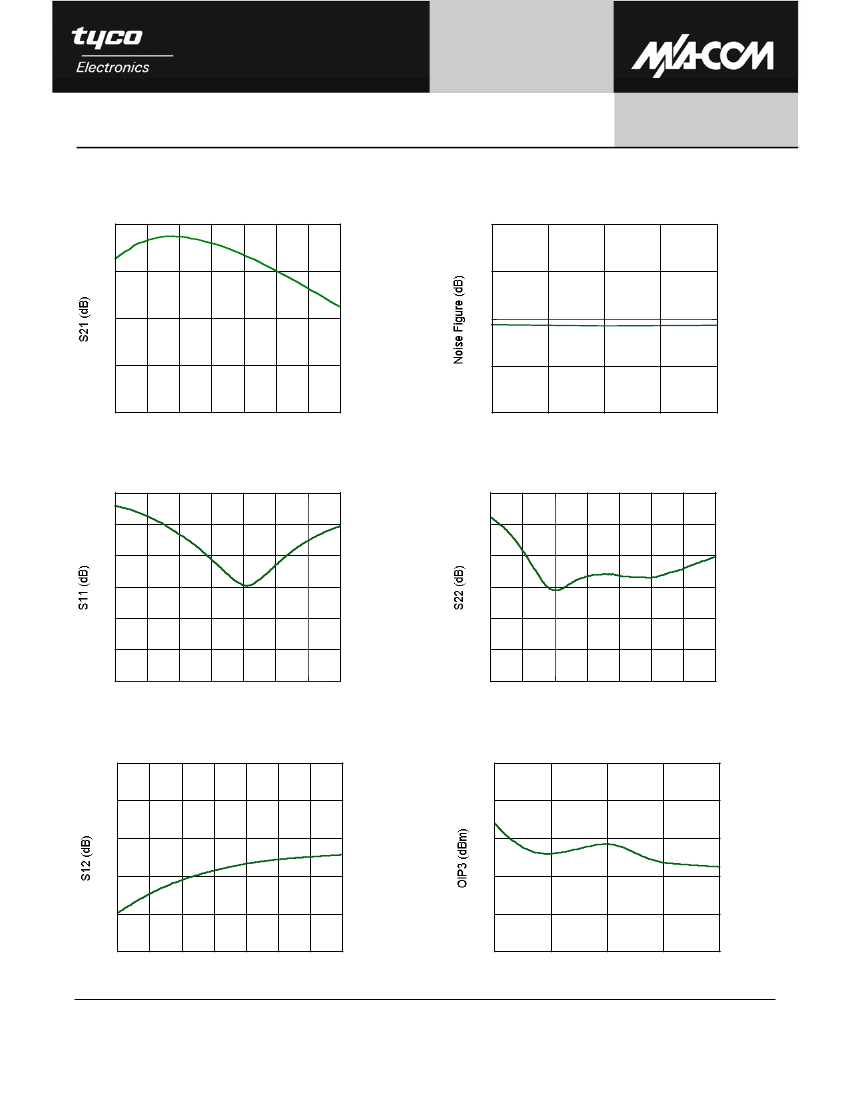

Typical Performance Curves: Broadband Tuning, 5 Volts, +25°C
