8388-16-08-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8388-16-08-1

8388-16-08-1: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.07 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8388-16-08-1 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.07 inch Pitch, Solder Terminal

8388-16-08-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	0.098 inch
subject depth	0.157 inch
body length	0.568 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8388
Plug contact pitch	0.07 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.163 inch
Terminal pitch	1.778 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

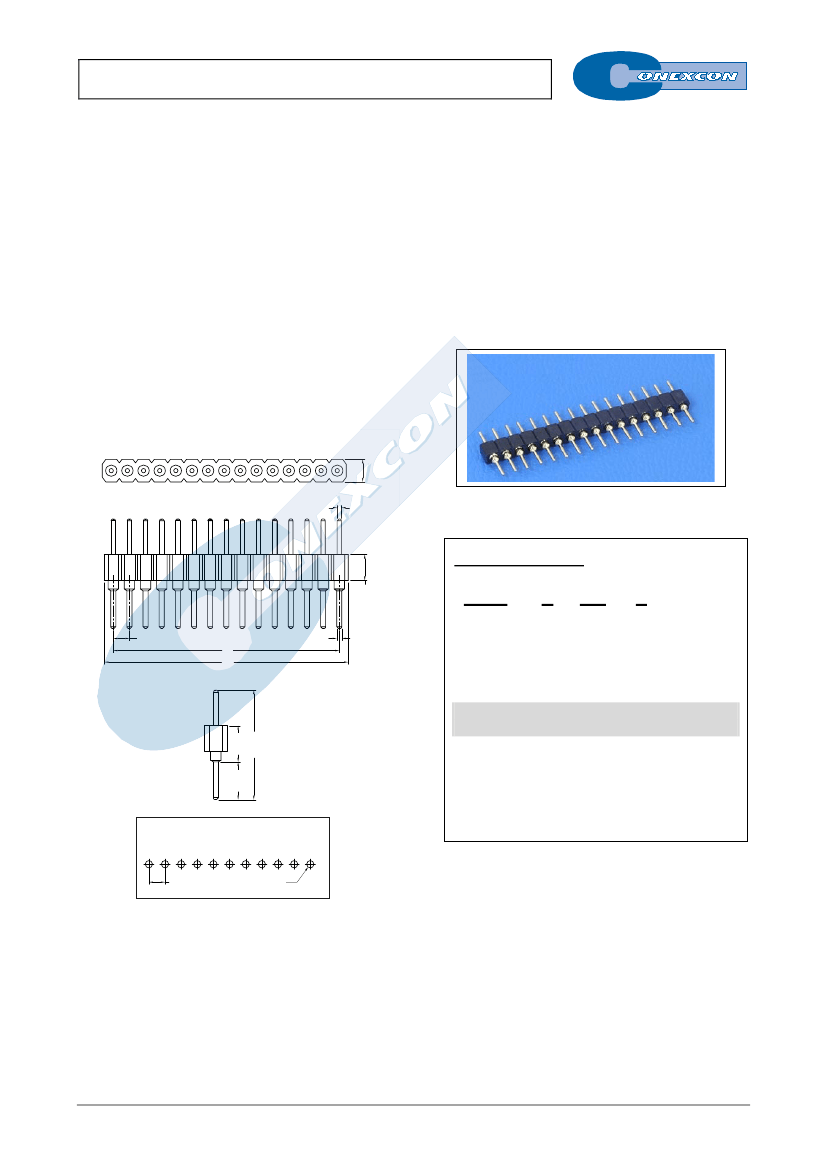

SINGLE ROW VERTICAL PIN HEADER

8388 SERIES.

1.78 mm. (0.070”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits

Mates with sockets 1.78 mm. pitch 8387 series

0.47 mm round pin in contact area

Machined contact with different plating



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Durability: 500 Cycles

Dimension Information

ø0.47

2.50±0.15

Ordering Information:

2.85±0.15

8388 -

T-

XX-

1.778±0.10

ø0.56

1. Connector Series

2. (T) Contact Plating



T =

gold flash over 30-50µ" Ni overall

12.07

4.00

Recommended Finish



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

4.15



Available in 2 through 40 circuits

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05)

1.778

ø 0.80

Dimensions:

(In mm.)

= 1.778 x (XX*-1)

= 1.778 x (XX*)+0.20

* XX

(Number of circuits)

A-XX
