1-1478904-1 datasheet, PDF - EEWORLD Datasheet

1-1478904-1: DescriptionSMA CONNECTOR, PLUG; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

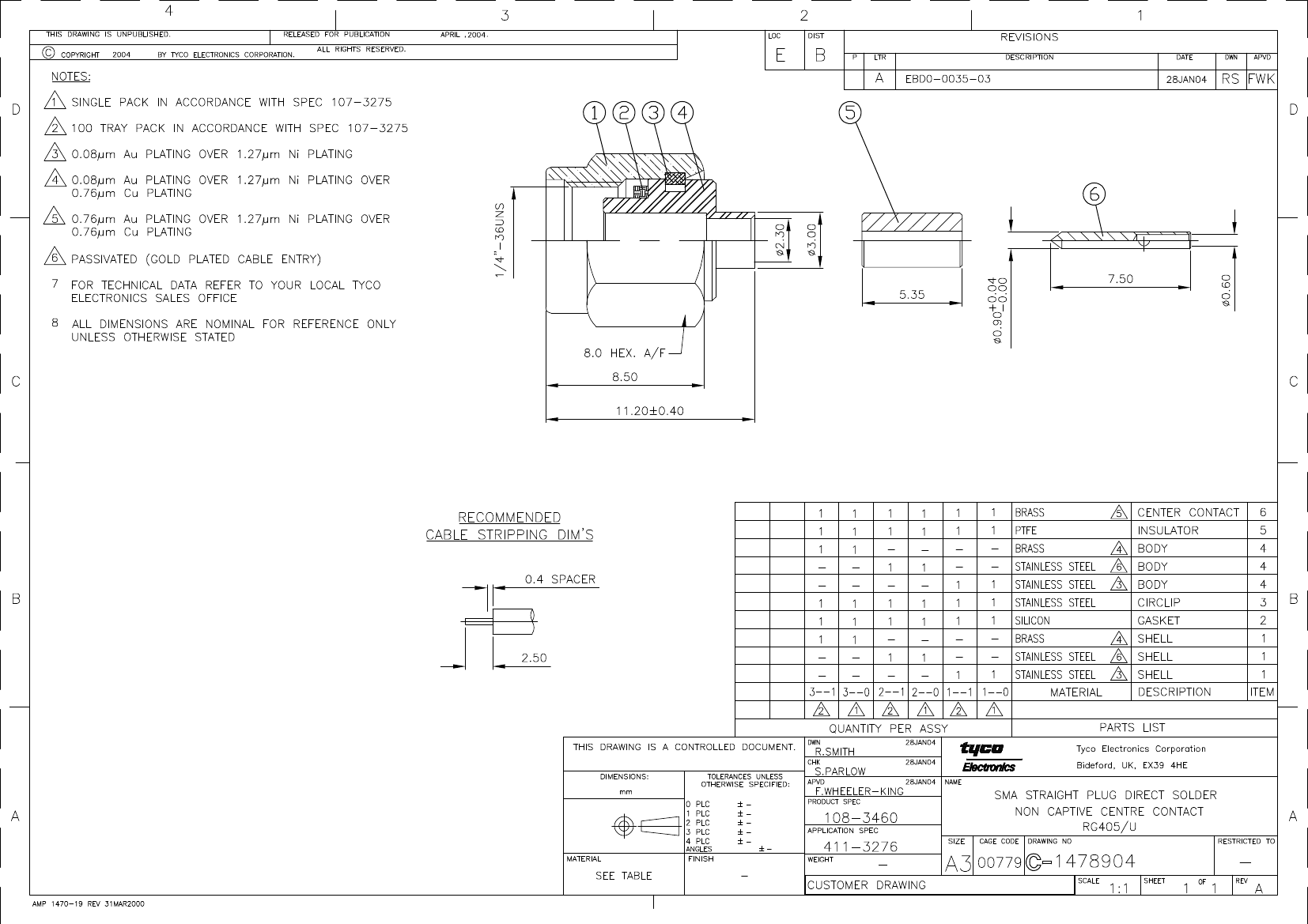

1-1478904-1 Overview

SMA CONNECTOR, PLUG

Parameter Name	Attribute value
Objectid	2027103596
Reach Compliance Code	unknown
YTEOL	8
subject depth	0.44 inch
Body/casing type	PLUG
Cable type	RG-405/U
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	MALE
Contact resistance	5 mΩ
Contact style	COAX
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
MIL compliance	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Shell material	STAINLESS STEEL
Termination type	SOLDER
Total number of contacts	1

	1-1478904-1	2-1478904-1
Description	SMA CONNECTOR, PLUG	SMA CONNECTOR, PLUG
Reach Compliance Code	unknown	unknown
subject depth	0.44 inch	0.44 inch
Body/casing type	PLUG	PLUG
Cable type	RG-405/U	RG-405/U
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact point gender	MALE	MALE
Contact resistance	5 mΩ	5 mΩ
Contact style	COAX	COAX
DIN compliance	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V
Durability	500 Cycles	500 Cycles
IEC compliance	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
MIL compliance	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	PANEL	PANEL
Number of ports	1	1
Maximum operating frequency	18 GHz	18 GHz
Maximum operating temperature	165 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
reliability	COMMERCIAL	COMMERCIAL
Shell material	STAINLESS STEEL	STAINLESS STEEL
Termination type	SOLDER	SOLDER LUG
Total number of contacts	1	1
