AM26LS30CN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS30CN

AM26LS30CN: DescriptionIC QUAD LINE DRIVER, PDIP16, PLASTIC, DIP-16, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size189KB，7 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

AM26LS30CN Overview

IC QUAD LINE DRIVER, PDIP16, PLASTIC, DIP-16, Line Driver or Receiver

AM26LS30CN Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	YES
Number of drives	4
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422; EIA-423
JESD-30 code	R-PDIP-T16
length	19.09 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.06 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
maximum transmission delay	200 ns
width	7.62 mm
Base Number Matches	1

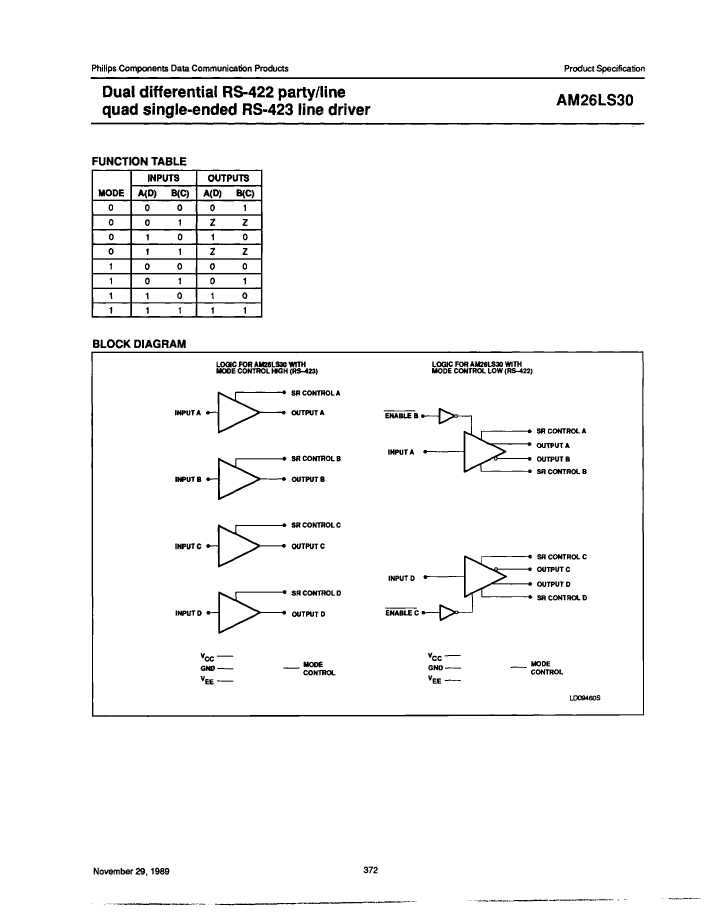

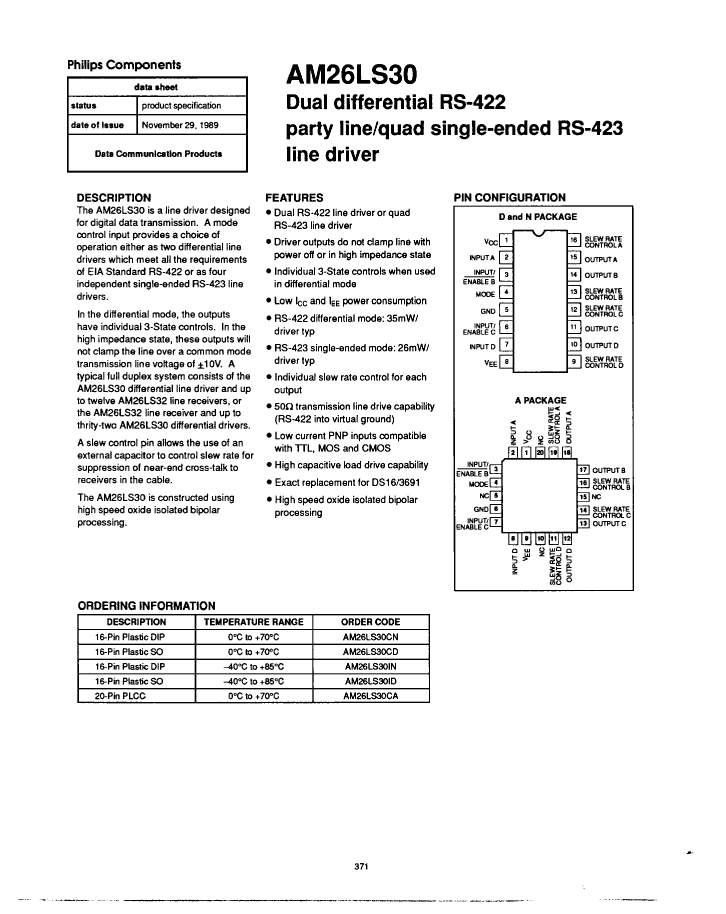

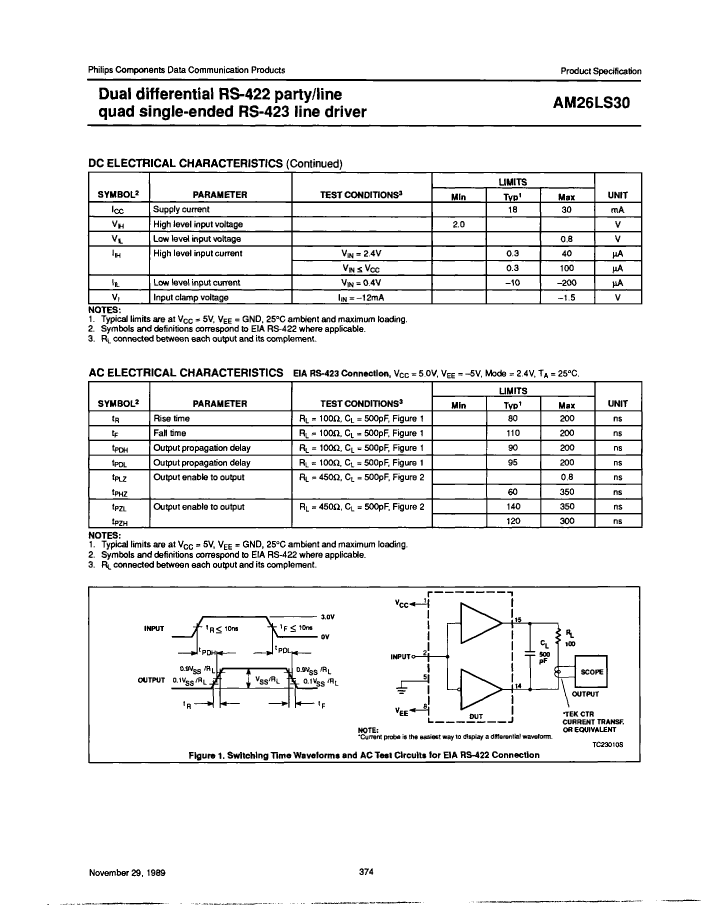

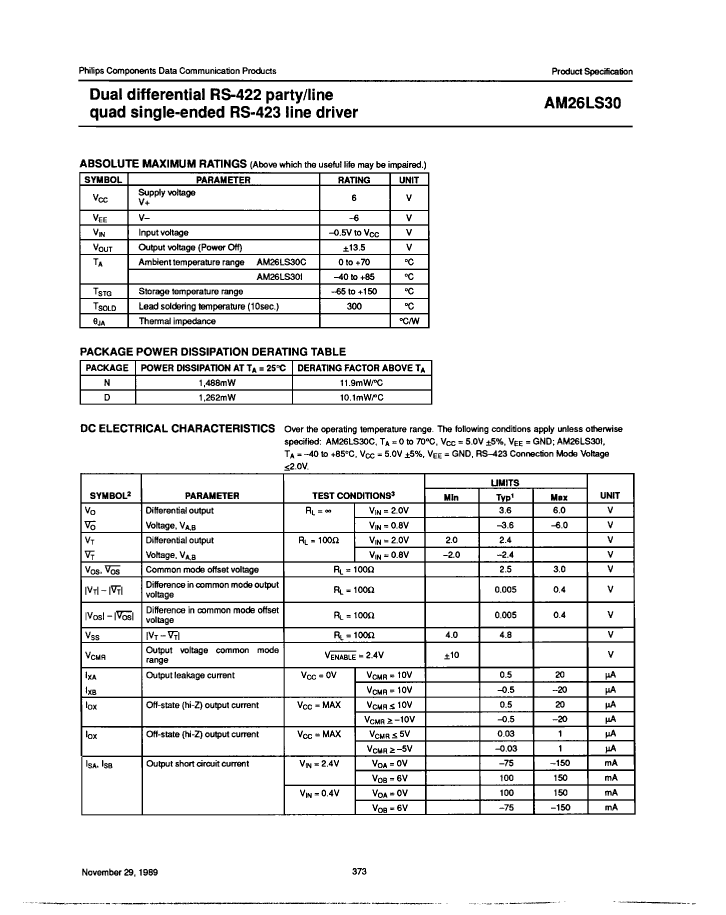

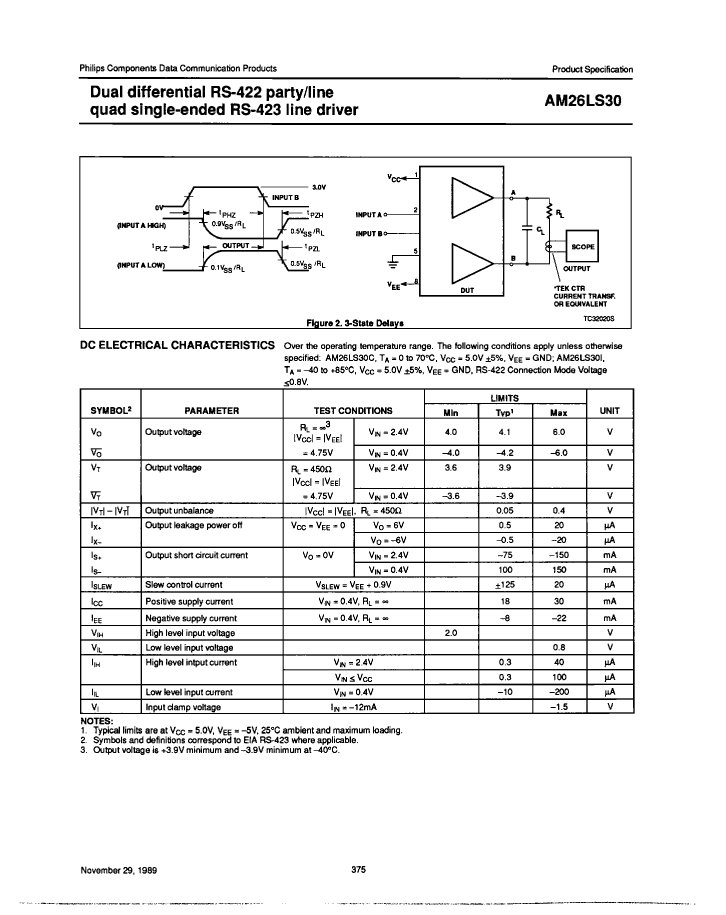

Preview

Download Datasheet

View All

AM26LS30CN Related Products

	AM26LS30CN	AM26LS30IN	AM26LS30CA-T	AM26LS30CA	AM26LS30CD-T	AM26LS30CD	AM26LS30ID-T	AM26LS30ID
Description	IC QUAD LINE DRIVER, PDIP16, PLASTIC, DIP-16, Line Driver or Receiver	IC QUAD LINE DRIVER, PDIP16, PLASTIC, DIP-16, Line Driver or Receiver	IC QUAD LINE DRIVER, PQCC20, PLASTIC, LCC-20, Line Driver or Receiver	IC QUAD LINE DRIVER, PQCC20, PLASTIC, LCC-20, Line Driver or Receiver	IC QUAD LINE DRIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver	IC QUAD LINE DRIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver	IC QUAD LINE DRIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver	IC QUAD LINE DRIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver
Parts packaging code	DIP	DIP	QLCC	QLCC	SOIC	SOIC	SOIC	SOIC
package instruction	DIP,	DIP,	QCCJ,	QCCJ,	SOP,	SOP,	SOP,	SOP,
Contacts	16	16	20	20	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES	YES	YES	YES	YES
Number of drives	4	4	4	4	4	4	4	4
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	EIA-422; EIA-423	EIA-422; EIA-423	EIA-422	EIA-422	EIA-422; EIA-423	EIA-422; EIA-423	EIA-422; EIA-423	EIA-422; EIA-423
JESD-30 code	R-PDIP-T16	R-PDIP-T16	S-PQCC-J20	S-PQCC-J20	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	19.09 mm	19.09 mm	8.9662 mm	8.9662 mm	9.9 mm	9.9 mm	9.9 mm	9.9 mm
Number of functions	4	4	4	4	4	4	4	4
Number of terminals	16	16	20	20	16	16	16	16
Maximum operating temperature	70 °C	85 °C	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	QCCJ	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.06 mm	4.06 mm	4.57 mm	4.57 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	TTL	TTL	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL
maximum transmission delay	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns	200 ns
width	7.62 mm	7.62 mm	8.9662 mm	8.9662 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
Output characteristics	3-STATE	3-STATE	-	-	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	COMPLEMENTARY	COMPLEMENTARY	-	-	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Maker	-	-	NXP	NXP	NXP	NXP	NXP	NXP
