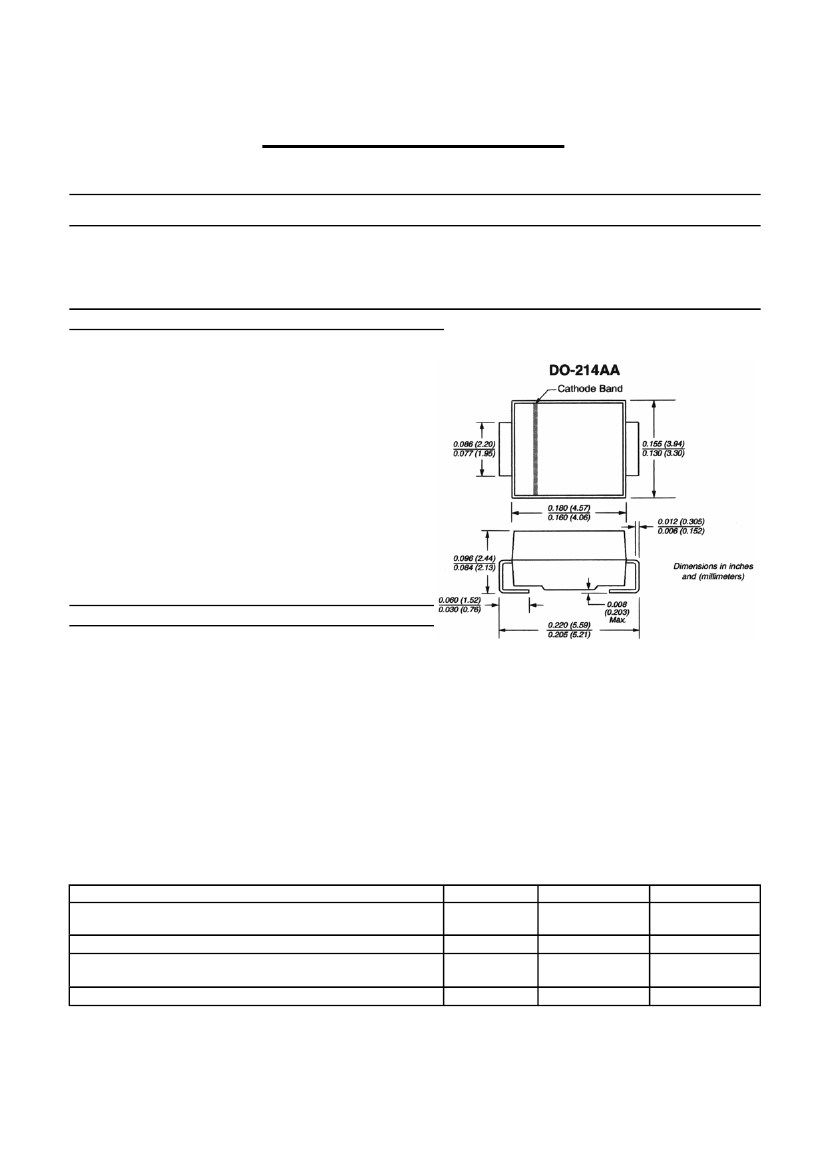

SMBJ SERIES
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE-5.0 TO 440 Volts
600 Watt Peak Pulse Power
FEATURES
• For surface mounted applications in order to
optimize board space
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Excellent clamping capability
• Repetition rate (duty cycle):0.01%
• Fast response time: typically less than
1.0 ps from 0 volts to BV for unidirectional types
• Typical IR less than 1µA above 10V
• High temperature soldering:
250°C/10 seconds at terminals
• Plastic package has Underwriters Laboratory
Flammability Classification 94 V-O
MECHANICAL DATA
Case: JEDEC DO214AA. Molded plastic over glass
passivated junction
Terminals: Solder plated, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode)
except Bidirectional
Standard Packaging: 12mm tape (EIA STD RS-481)
Weight: 0.003 ounces, 0.093 grams)
Dimensions in inches (millimeters)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types SMBJ5.0 thru types SMBJ440 (e.g. SMBJ5.0C, SMBJ440CA)
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
RATING
SYMBOL
VALUE
UNITS
Peak Pulse Power Dissipation on 10/1000 µs
P
PPM
Minimum 600
Watts
waveform
(NOTE 1, 2, Fig.1)
I
PPM
SEE TABLE 1
Amps
Peak Pulse Current of on 10/1000 µs waveform
(Note 1,Fig 3)
Peak Forward Surge Current, 8.3ms Single Half Sine-wave
I
FSM
100
Amps
Superimposed on Rated Load,
(JEDEC Method)(Note2, 3)
Operatings and Storage Temperature Range
T
J
, T
STG
-55 +150
°C
NOTES:
1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.
2. Mounted on Copper Pad area of 0.8x0.8" (20x20mm) per Fig.5.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum.
Certified RoHS Compliant
UL File # E223026
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel: 760-564-8656 • Fax: 760-564-2414
1-800-831-4881 Email: sales@mdesemicondutor.com Web: www.mdesemiconductor.com

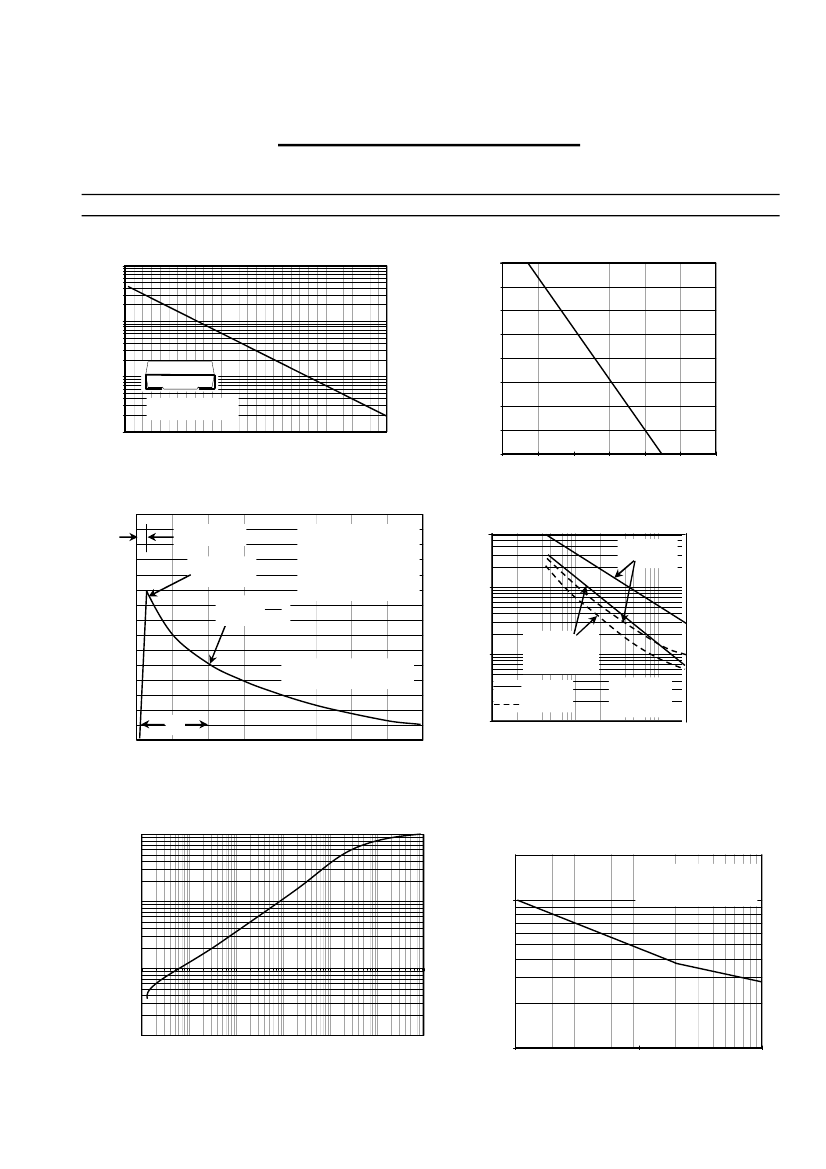

RATING AND CHARACTERISTIC CURVES SMBJ SERIES
Fig. 1 - Peak Pulse Power Rating Curve
Peak Pulse Power (P ) or Current (I
PP
)
PP
Derating in Percentage,%
100
Fig.2 - Pulse Derating
100
87.5
P
PPM
-Peak Pulse Power (kW)
75
10
62.5
50
1
37.5
0.2x0.2"(5.0x5.0mm)
Copper Pad Areas
0.1
25
12.5
0.1µs
1.0µs
10µs
100µs
1.0ms
10ms
t
d
- Pulse Width (sec.)
0
0
0.2
0.4
0.6
0.8
1
1.2
T
A
- Ambient Temperature
Fig.3 - Pulse Waveform
150
10000
I
PPM
- Peak Pulse Current,% I
RSM
t
r
= 10µsec.
Peak Value
I
PPM
100
Half Value- I
PPM
2
T
J
= 25°C
6000
Fig.4 - Typical Junction
C
it
Measured at
Zero Bias
C
J
- Junction Capacitance(pF)
Pulse Width(td)is defined
as the point where the
peak current decays to
50% of I
PPM
1000
100
50
t-
10/1000µsec.Waveform
Time(ms)
by R.E.A.
as defined
V
R
,Measured at
Stand-Off
Voltage, V
WM
Uni-Directional
Bi-Directional
T
J
= 25°C
f = 1.0MH
Z
Vsig = 50mVp-
100
200
t
d
0
0
1.0
2.0
3.0
3.0
10
1.0
1
1000
V
WM
4.0
4.0
- Reverse Stand-Off Voltage (V)
Fig. 5 - Typ.Transient Thermal Impedance
100
Fig.6 - Maximum Non-Repetitive Peak
Forward Surge Current
I
FSM
-Peak Forward Surge Current (A)
200
8.3ms Single Half Sine-Wave
(JEDEC Method)
Unidirectional Only
100
Transient Thermal Impedance
(
℃
/W)
10
1
1.0
0.1
0.001
0.01
0.1
1
10
100
1000
10
1
10
100
t
p
-Pulse Duration (sec)
Number of Cycles at 60 Hz
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel: 760-564-8656 • Fax: 760-564-2414
1-800-831-4881 Email: sales@mdesemicondutor.com Web: www.mdesemiconductor.com
600 Watt Surface Mount TVS
UNI-POLAR
BI-POLAR
DEVICE
MARKING
CODE
REVERSE
REVERSE BREAKDOWN BREAKDOWN
MAXIMUM
TEST
PEAK
VOLTAGE CURRENT CLAMPING
STANDOFF VOLTAGE
PULSE LEAKAGE
V
BR
(V)
V
BR
(V)
VOLTAGE
VOLTAGE CURRENT @ V
RWM
(I
T
)
V
RWM
(V)
@I
PP
V
C
(V)
I
PP
(A)
MIN. @ I
T
MAX. @ I
T
I
R
(µA)
mA
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146
162
177
193
209
243
259
275
292
324
356
405
486
567
648
713
65.3
58.3
53.6
50.0
46.6
44.2
41.7
39.0
35.3
33.0
30.2
28.0
25.9
24.6
23.1
21.8
20.6
18.6
16.9
15.5
14.3
13.3
12.4
11.3
10.4
9.3
8.7
8.3
7.8
7.3
6.9
6.5
6.2
5.9
5.3
5.0
4.8
4.4
4.1
3.7
3.4
3.1
2.9
2.5
2.3
2.2
2.1
1.9
1.7
1.5
1.3
1.1
0.9
0.9
800
800
500
200
100
50
20
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
UNI
BI
5.00
6.40
7.00
SMBJ5.0A
SMBJ5.0CA
KE
AE
6.00
6.67
7.37
SMBJ6.0A
SMBJ6.0CA
KG
AG
6.50
7.22
7.98
SMBJ6.5A
SMBJ6.5CA
KK
AK
7.00
7.78
8.60
SMBJ7.0A
SMBJ7.0CA
KM
AM
7.50
8.33
9.21
SMBJ7.5A
SMBJ7.5CA
KP
AP
8.00
8.89
9.83
SMBJ8.0A
SMBJ8.0CA
KR
AR
8.50
9.44
10.40
SMBJ8.5A
SMBJ8.5CA
KT
AT
9.00
10.00
11.10
SMBJ9.0A
SMBJ9.0CA
KV
AV
10.00
11.10
12.30
SMBJ10A
SMBJ10CA
KX
AX
11.00
12.20
13.50
SMBJ11A
SMBJ11CA
KZ
AZ
12.00
13.30
14.70
SMBJ12A
SMBJ12CA
LE
BE
13.00
14.40
15.90
SMBJ13A
SMBJ13CA
LG
BG
14.00
15.60
17.20
SMBJ14A
SMBJ14CA
LK
BK
15.00
16.70
18.50
SMBJ15A
SMBJ15CA
LM
BM
16.00
17.80
19.70
SMBJ16A
SMBJ16CA
LP
BP
17.00
18.90
20.90
SMBJ17A
SMBJ17CA
LR
BR
18.00
20.00
22.10
SMBJ18A
SMBJ18CA
LT
BT
20.00
22.20
24.50
SMBJ20A
SMBJ20CA
LV
BV
22.00
24.40
26.90
SMBJ22A
SMBJ22CA
LX
BX
24.00
26.70
29.50
SMBJ24A
SMBJ24CA
LZ
BZ
26.00
28.90
31.90
SMBJ26A
SMBJ26CA
ME
CE
28.00
31.10
34.40
SMBJ28A
SMBJ28CA
MG
CG
30.00
33.30
36.80
SMBJ30A
SMBJ30CA
MK
CK
33.00
36.70
40.60
SMBJ33A
SMBJ33CA
MM
CM
36.00
40.00
44.20
SMBJ36A
SMBJ36CA
MP
CP
40.00
44.40
49.10
SMBJ40A
SMBJ40CA
MR
CR
43.00
47.80
52.80
SMBJ43A
SMBJ43CA
MT
CT
45.00
50.00
55.30
SMBJ45A
SMBJ45CA
MV
CV
48.00
53.30
58.90
SMBJ48A
SMBJ48CA
MX
CX
51.00
56.70
62.70
SMBJ51A
SMBJ51CA
MZ
CZ
54.00
60.00
66.30
SMBJ54A
SMBJ54CA
NE
DE
58.00
64.40
71.20
SMBJ58A
SMBJ58CA
NG
DG
60.00
66.70
73.70
SMBJ60A
SMBJ60CA
NK
DK
64.00
71.10
78.60
SMBJ64A
SMBJ64CA
NM
DM
70.00
77.80
86.00
SMBJ70A
SMBJ70CA
NP
DP
75.00
83.30
92.10
SMBJ75A
SMBJ75CA
NR
DR
78.00
86.70
95.80
SMBJ78A
SMBJ78CA
NT
DT
85.00
94.40
104.00
SMBJ85A
SMBJ85CA
NV
DV
90.00
100.00
111.00
SMBJ90A
SMBJ90CA
NX
DX
100.00
111.00
123.00
SMBJ100A SMBJ100CA
NZ
DZ
110.00
122.00
135.00
SMBJ110A SMBJ110CA
PE
EE
120.00
133.00
147.00
SMBJ120A SMBJ120CA
PG
EG
130.00
144.00
159.00
SMBJ130A SMBJ130CA
PK
EK
SMBJ150A SMBJ150CA
167.00
185.00
150.00
PM
EM
SMBJ160A SMBJ160CA
160.00
178.00
197.00
PP
EP
SMBJ170A SMBJ170CA
189.00
209.00
170.00
PR
ER
SMBJ180A SMBJ180CA
201.00
222.00
180.00
PT
ET
SMBJ200A SMBJ200CA
224.00
247.00
200.00
PV
EV
SMBJ220A SMBJ220CA
246.00
272.00
220.00
PX
EX
SMBJ250A SMBJ250CA
279.00
309.00
250.00
PZ
EZ
SMBJ300A SMBJ300CA
335.00
371.00
300.00
QE
FE
SMBJ350A SMBJ350CA
391.00
432.00
350.00
QG
FG
SMBJ400A SMBJ400CA
447.00
494.00
400.00
QK
FK
SMBJ440A SMBJ440CA
492.00
543.00
440.00
QM
FM
For bidirectional type having Vrwm of 10 volts and less, the IR limit is double
For parts without A , the VBR is ± 10%
Certified RoHS Compliant
UL File # E223026
