SRN6487: Description10 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size204KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

SRN6487 Overview

10 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN

SRN6487 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

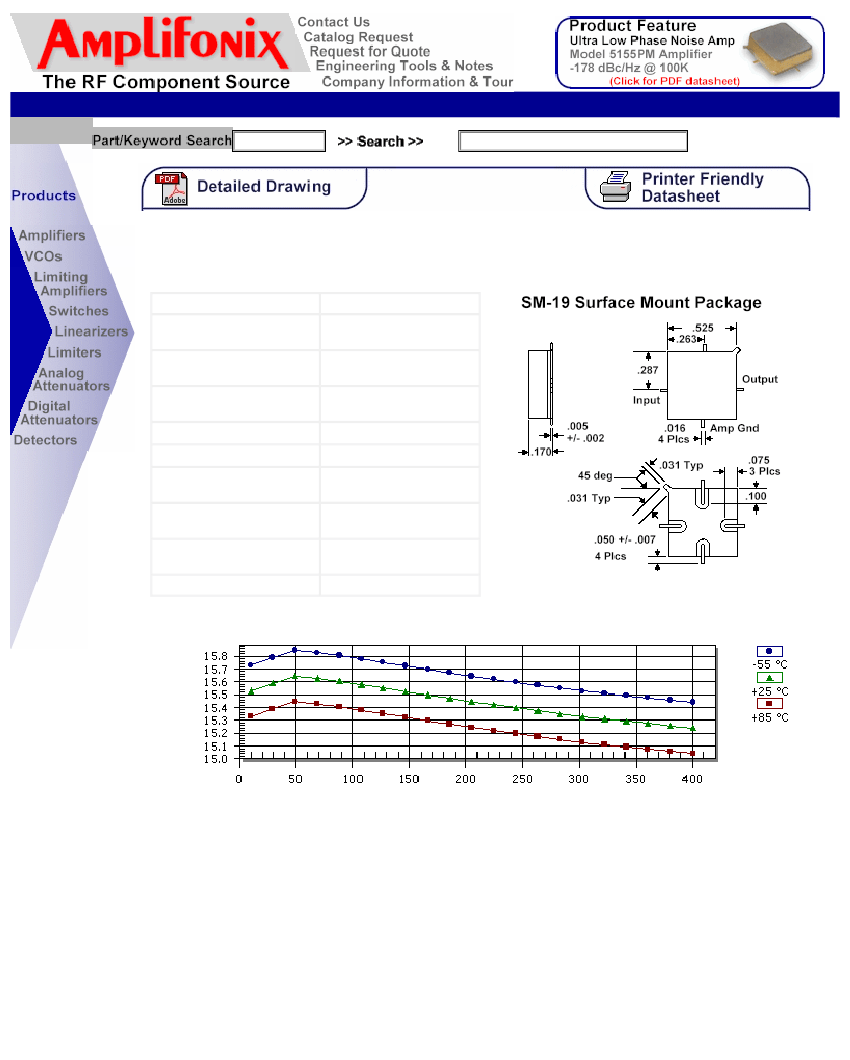

Preview

Download Datasheet

View All

Cross Reference Guide

RN6487 / SRN6487*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 400.0 MHz

15.5 dB Typical

14.0 dB Min

3.2 dB Typical

5.0 dB Max

17.5 dBm Typical

15.0 dBm Min

32.0 dBm Typical

45.0 dBm Typical

1.5/2.0 Input Typ/Max

1.7/2.0 Output Typ/Max

-20.0 dB Typical

-18.0 dB Min

15.0 Volts

33.0 mA

-55.0 - 85.0 °C

Package Drawing

Gain

Frequency (MHz)

Noise Figure
