CER0675-0105-BM001

Description
19 CONTACT(S), ALUMINUM ALLOY, MALE, CIRCULAR CONNECTOR, SOLDER, SOCKET
CategoryThe connector    The connector
File Size57KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

CER0675-0105-BM001 Overview

19 CONTACT(S), ALUMINUM ALLOY, MALE, CIRCULAR CONNECTOR, SOLDER, SOCKET

CER0675-0105-BM001 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresPOLARIZED
Back shell typeSOLID
Body/casing typeSOCKET
Connector typeCIRCULAR CONNECTOR
Contact point genderMALE
Coupling typeBAYONET
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberCER0675
Mixed contactsNO
Installation typePANEL
OptionsGENERAL PURPOSE
Shell materialALUMINUM ALLOY
Termination typeSOLDER
Total number of contacts19
Base Number Matches1

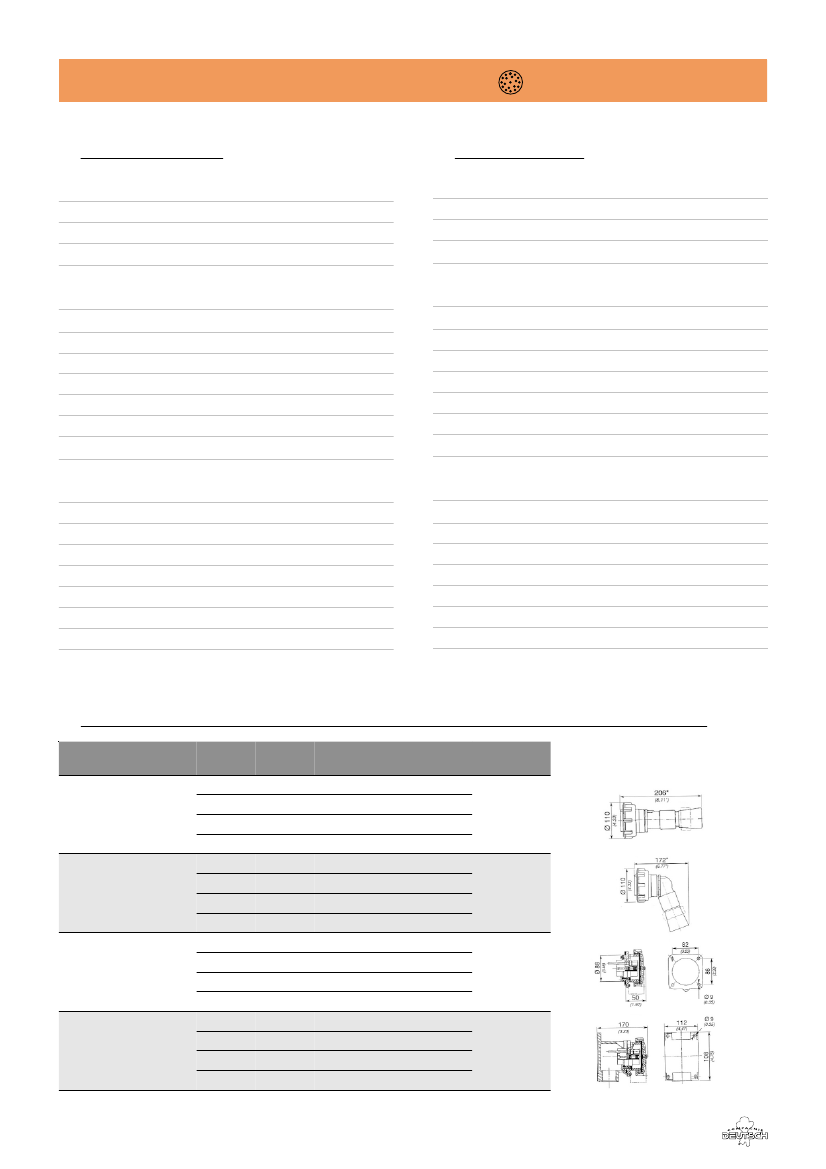

CER0675
s
Caractéristiques
Electriques
Résistance d’isolement : Ph/Ph : 1 000 GΩ - Ph/T : 300 GΩ
Ligne de fuite : Ph/Ph - Ph/T : 7 mm
Distance dans l’air : Ph/Ph - Ph/T : 6 mm
15 A - 48/380 V ~
s
Characteristics
Electrical
Insulation strength : Ph/Ph : 1 000 G
- Ph/T : 300 G
Creepage distance : Ph/Ph - Ph/T : 7 mm
Clearance distance : Ph/Ph - Ph/T : 6 mm
Mécaniques
Matière carcasse : aluminium
Matière contact : laiton argenté
Matière serre-câble standard : aluminium
Matière isolant : thermodurcissable
Indice de protection : IP 55 IK 7
Classe de température : -40°C +80C
Possibilité de détrompage : 15
Mechanical
Housing material : aluminium
Contact material : silver plated brass
Standard cable-clamp material : aluminium
Insulator material : thermo-setting
Protection index : IP 55 IK 7
Temperature range : -40°C +80°C
Keyway variants : 15
Contacts et câbles
Calibre contact : 4 mm
Alésage du fût : 3,5 mm
Type de raccordement : soudure
Type de contact : manchon
Câble ext. max. : 36 mm
Câble section max. : 6 mm
2
Câble Ø max env. isolante : 5,5 mm
Contacts and cables
Contact size : 4 mm
Contact stem size : 3,5 mm
Terminaison : soldering
Contact type : sleeve
Max O.D. : 36 mm
Max cross-section : 6 mm
2
Max Ø cable over insulation : 5,5 mm
s
Références et encombrements
(mm/inch)
/
Part numbers and dimensions
(mm/inch)
Article
Item
18 + T
Fiche droite Ø36
Straight plug
18 + T
19
19
18 + T
Fiche 70° Ø36
70° angled plug
18 + T
19
19
18 + T
Embase semi-encastrée
Semi-recessed socket
18 + T
19
19
18 + T
Socle PG36
Wall mounting socket
18 + T
19
19
Type
Mâle
Femelle
Mâle
Femelle
Mâle
Femelle
Mâle
Femelle
Femelle
Mâle
Femelle
Mâle
Femelle
Mâle
Femelle
Mâle
Référence
Part number
CER0675-0108-0M000
CER0675-0108-AM002
CER0675-0108-AM001
CER0675-0108-BM001
CER0675-0078-0M000
CER0675-0078-AM002
CER0675-0078-AM001
CER0675-0078-BM001
CER0675-0099-0M000
CER0675-0099-AM002
CER0675-0099-AM001
CER0675-0099-BM001
CER0675-0105-0M000
CER0675-0105-AM002
CER0675-0105-AM001
CER0675-0105-BM001
Poids
Weight
1,1 kg
1,1 kg
1,2 kg
3,3 kg
Modèles non présentés : Socle de connecteur - Prolongateur - Socle à 2 entrées PG36 - Fiche 25°
Models not represented : Appliance inlet - Connector - Wall mounting socket with 2 entry PG36 - 25° angled plug
15
* Suivant le raccord arrière / According to the backshell used
