F-119G

Description
4 ELEMENT, 28 uH, GENERAL PURPOSE INDUCTOR, SMD
CategoryPassive components    inductor
File Size36KB,1 Pages
ManufacturerRhombus Industries, Inc.
Websitehttp://www.rhombus-ind.com/
Download Datasheet Parametric Compare View All

F-119G Overview

4 ELEMENT, 28 uH, GENERAL PURPOSE INDUCTOR, SMD

F-119G Parametric

Parameter NameAttribute value
MakerRhombus Industries, Inc.
Reach Compliance Codeunknow
ECCN codeEAR99
DC Resistance0.2 Ω
Nominal inductance(L)28 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberF-119
Number of functions4
Number of terminals16
self resonant frequency12 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL IN-LINE
Terminal shapeGULL WING
Test frequency0.1 MHz

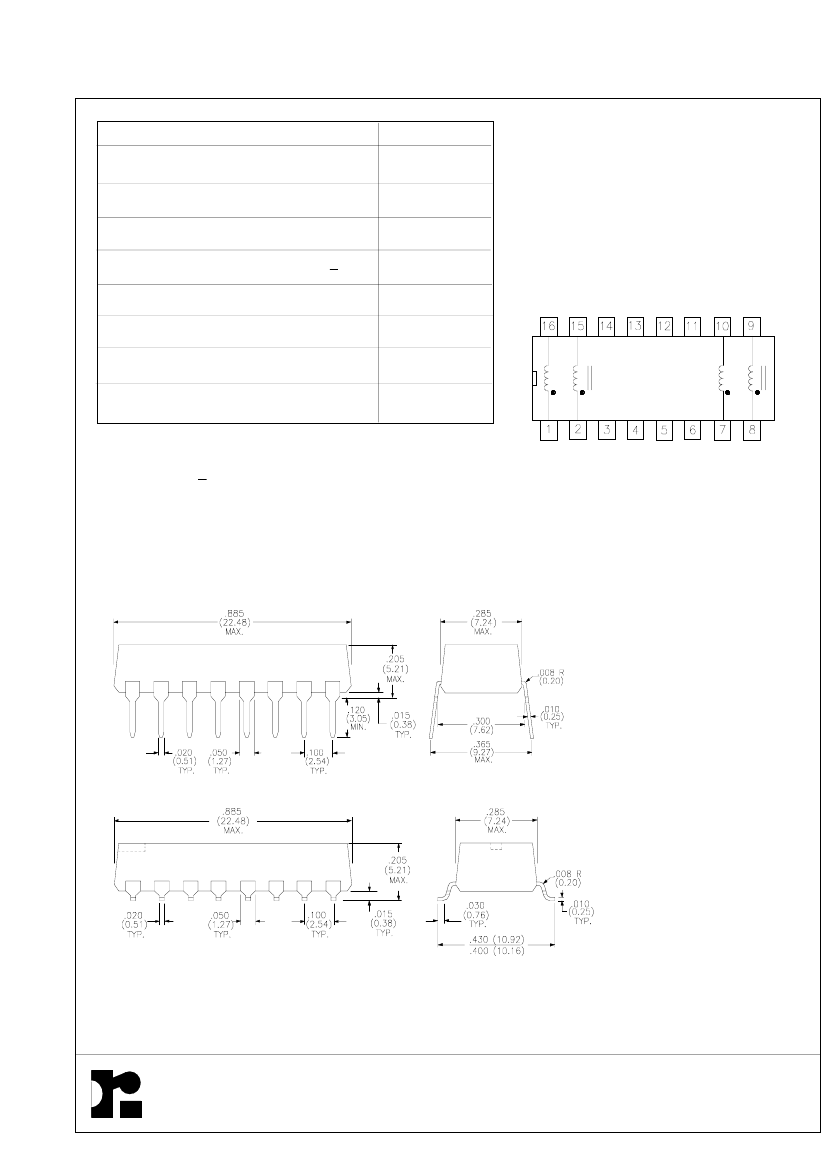

PARAMETER
1
UNITS
Inductance Min.
Leakage Inductance
Interwinding Capacitance
28
0.2 Max.
12 Max.
0.20 +15%
500 Min.
12
10k Min.
250
µH
µH
pF
V
RMS
MHz
MΩ
mW
1
High Frequency
Data Line Filter
(4 Lines - Two Coils)
Schematic Diagram
1
DC Resistance
Isolation (HI-POT)
SRF (Ref.)
Insulation Resistance
Power Rating
1
Tested at 100KHz and 100 mV
RMS
Turns ratio 1:1
+
1%
Physical Dimensions in inches (mm)
Thru-hole DIP
P/N F-119
Gullwing SMD
P/N F-119G
10/17/96
Rhombus
Industries Inc.
Transformers & Magnetic Products
15801 Chemical Lane, Huntington Beach, CA 92649
Phone: (714) 898-0960
FAX: (714) 896-0971
www.rhombus-ind.com

F-119G Related Products

F-119G F-119
Description 4 ELEMENT, 28 uH, GENERAL PURPOSE INDUCTOR, SMD 4 ELEMENT, 28 uH, GENERAL PURPOSE INDUCTOR
