BPP-2N Series
BIPHASEMO
DULATO S
R
10 to 2000 MHz / ECL & TTL Compatible / Fast Switching / Hermetic Package
PRINCIPAL SPECIFICATIONS
Model
Number
BPP-2N-500
BPP-2N-1500
Frequency
Range,
MHz
10 – 500
500 – 1000
1000 – 2000
Insertion
Loss, dB,
Max. Typ.
3
4
6
2
3
5
Amplitude
Balance, dB,
Max. Typ.
0.3
0.5
0.75
0.20
0.20
0.25
Phase
Balance
Max. Typ.
±
3°
±
4°
±
5°
±
1°
±
2°
±
2°
Carrier
Suppression,
Typ.
– 40 dBc
– 35 dBc
– 30 dBc

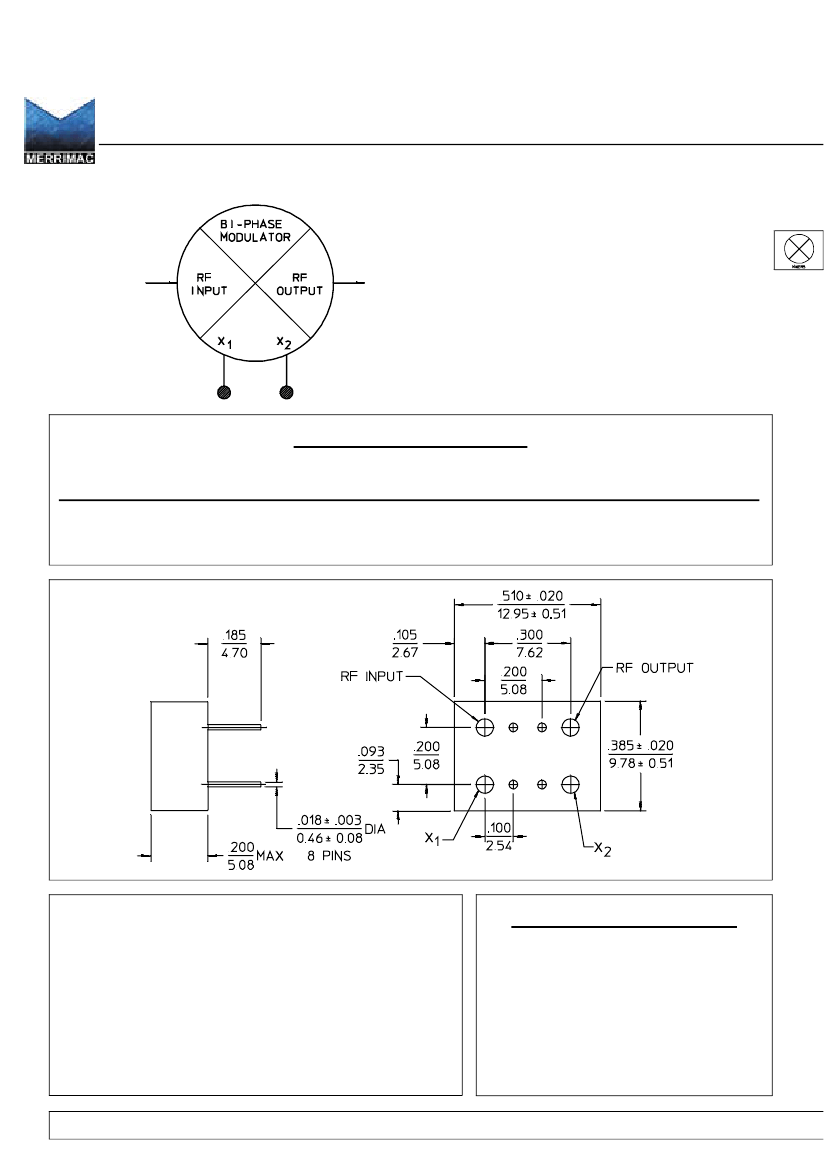

N-Merripac
TM
Outline
NOTES:1. Tolerance on 3 place decimals
±
0.010 (0.25) except as noted.
2. Dimensions in inches over millimeters.
3. Lead Dimensions apply only at body.
4. All unmarked pins are case ground.
General Notes:
1. The BPP-2N series of Biphase Modulators covers the frequency range
of 10 to 2000 MHz with sub-nanosecond switching times in the higher
frequency units.
2. Customized versions are available for special frequency bands matched
to your special applications.
3. The BPP-2N series can be driven directly by either TTL or ECL drivers.
Most units are available in a variety of alternative packages such as the
TO-8, flatpack or connectorized packages. TTL or ECL drivers may be
included in the larger packages.
4. All units comply with applicable sections of MIL-M-28837 and may be
supplied screened for compliance with additional specifications for military
and space applications requiring the highest reliability.
24May96
GENERAL SPECIFICATIONS
Impedance:
RF Input Level:
VSWR:
Switching Speed:
Data Levels:
Logic 1:
Logic 0:
Weight, nominal:
Operating Temperature:
50
Ω
nom.
– 3 dBm max.
2.0:1 max.
2 nS typ.
+15 mA
– 15 mA
0.1 oz (2.8 g)
– 55° to +85°C
F further inform
or
ation contact
MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 /
973-575-1300 / FAX 973-575-0531
