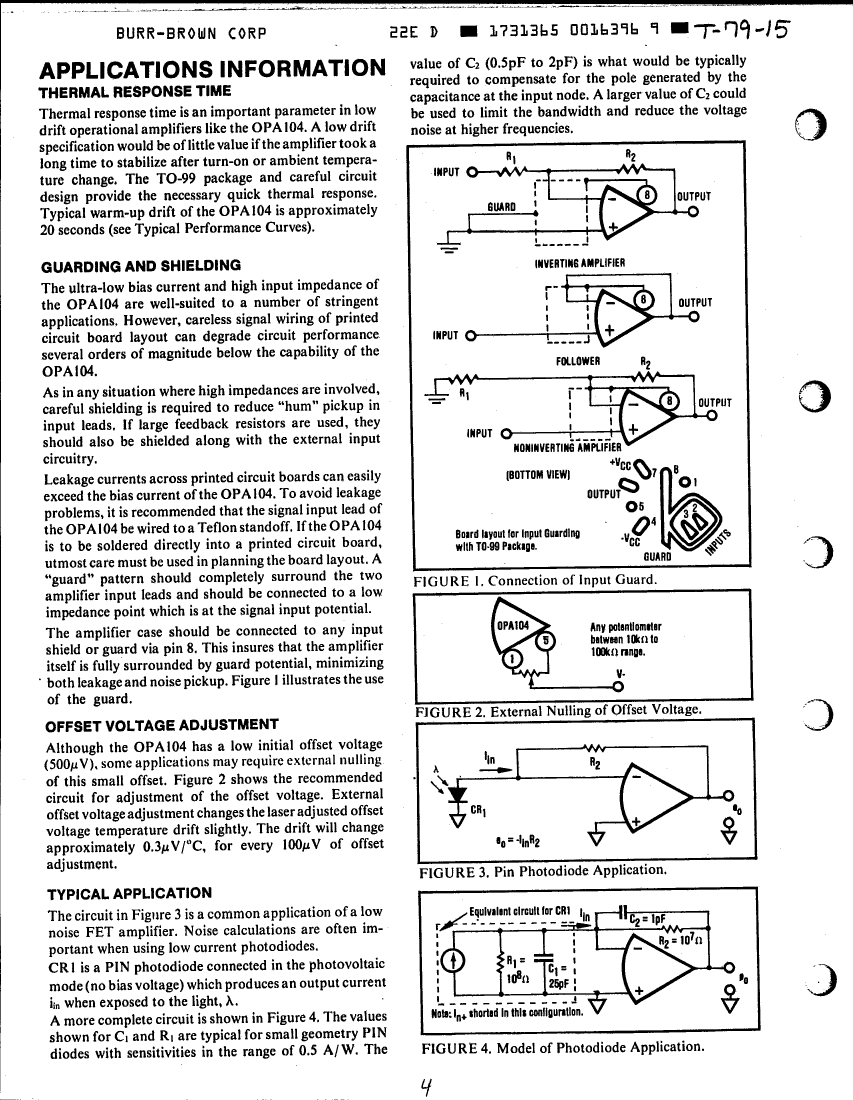

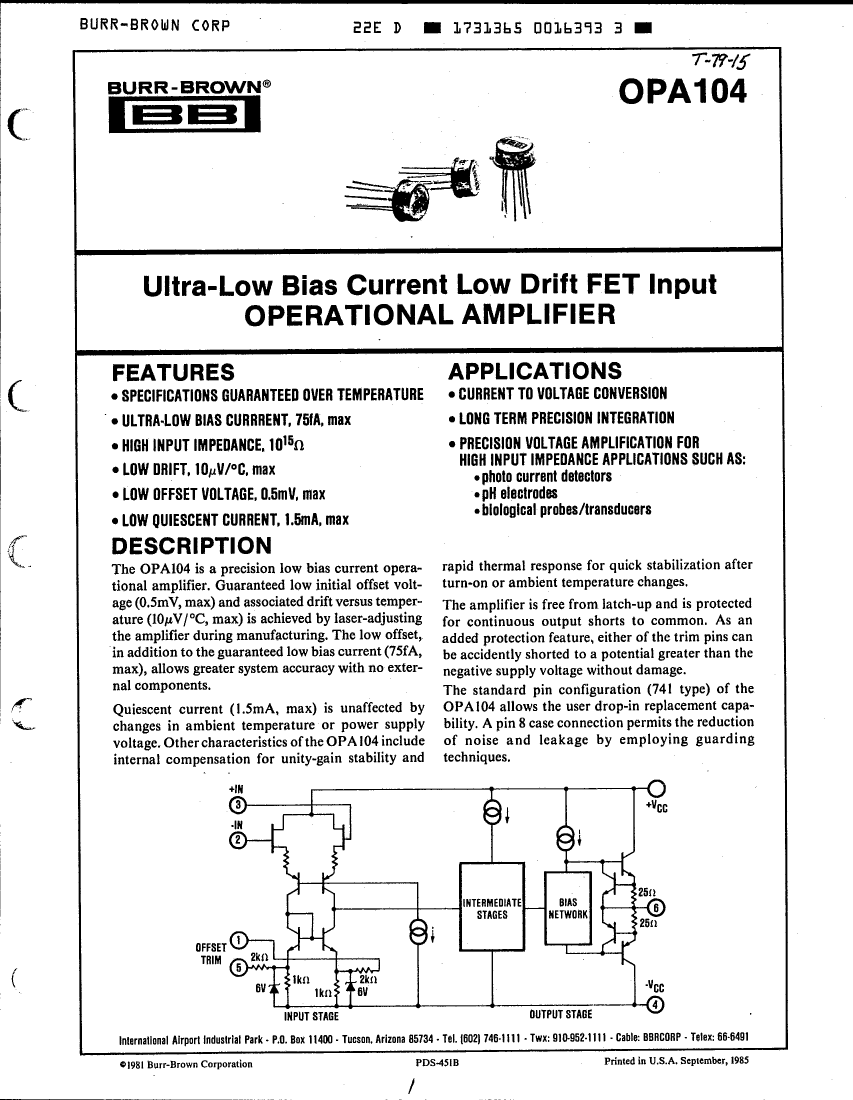

OPA104AM amplifier basic information:
OPA104AM is an OPERATIONAL AMPLIFIER.
OPA104AM amplifier core information:
The minimum operating temperature of the OPA104AM is -25 °C and the maximum operating temperature is 85 °C. Maximum bias current at 25°C: 3e-7 µA
The maximum slew rate of the OPA104AM given by the manufacturer is 3 mA, while the minimum slew rate is 1.6 V/us. Its minimum voltage gain is 40000.
The nominal supply voltage of the OPA104AM is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of the OPA104AM is 1000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

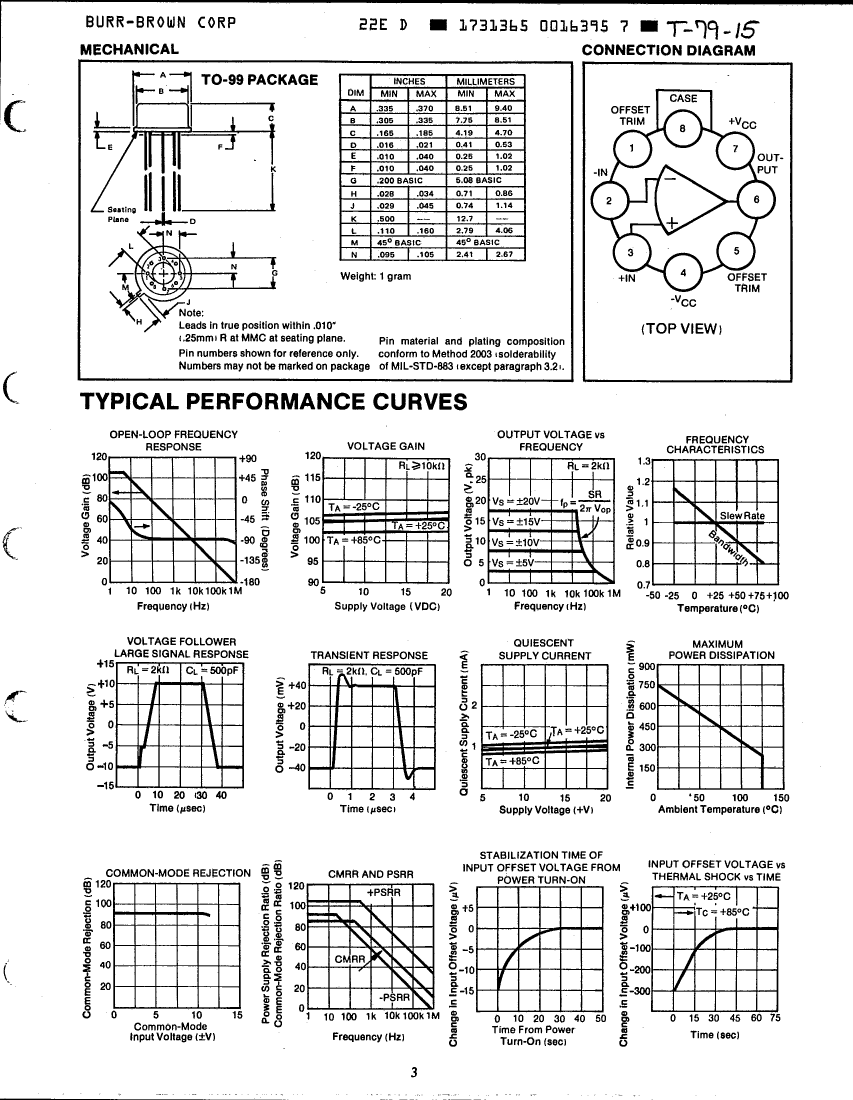

Related dimensions of OPA104AM:
OPA104AM has 8 terminals. Its terminal position type is: BOTTOM.
OPA104AM amplifier additional information:
OPA104AM adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of OPA104AM is: YES. Its temperature grade is: OTHER.
OPA104AM is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the OPA104AM package are mostly METAL. And its package shape is ROUND.
The OPA104AM package pin form is: CYLINDRICAL. Its terminal form is: WIRE.
OPA104AM amplifier basic information:
OPA104AM is an OPERATIONAL AMPLIFIER.
OPA104AM amplifier core information:
The minimum operating temperature of the OPA104AM is -25 °C and the maximum operating temperature is 85 °C. Maximum bias current at 25°C: 3e-7 µA
The maximum slew rate of the OPA104AM given by the manufacturer is 3 mA, while the minimum slew rate is 1.6 V/us. Its minimum voltage gain is 40000.
The nominal supply voltage of the OPA104AM is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of the OPA104AM is 1000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of OPA104AM:
OPA104AM has 8 terminals. Its terminal position type is: BOTTOM.
OPA104AM amplifier additional information:
OPA104AM adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of OPA104AM is: YES. Its temperature grade is: OTHER.
OPA104AM is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the OPA104AM package are mostly METAL. And its package shape is ROUND.
The OPA104AM package pin form is: CYLINDRICAL. Its terminal form is: WIRE.

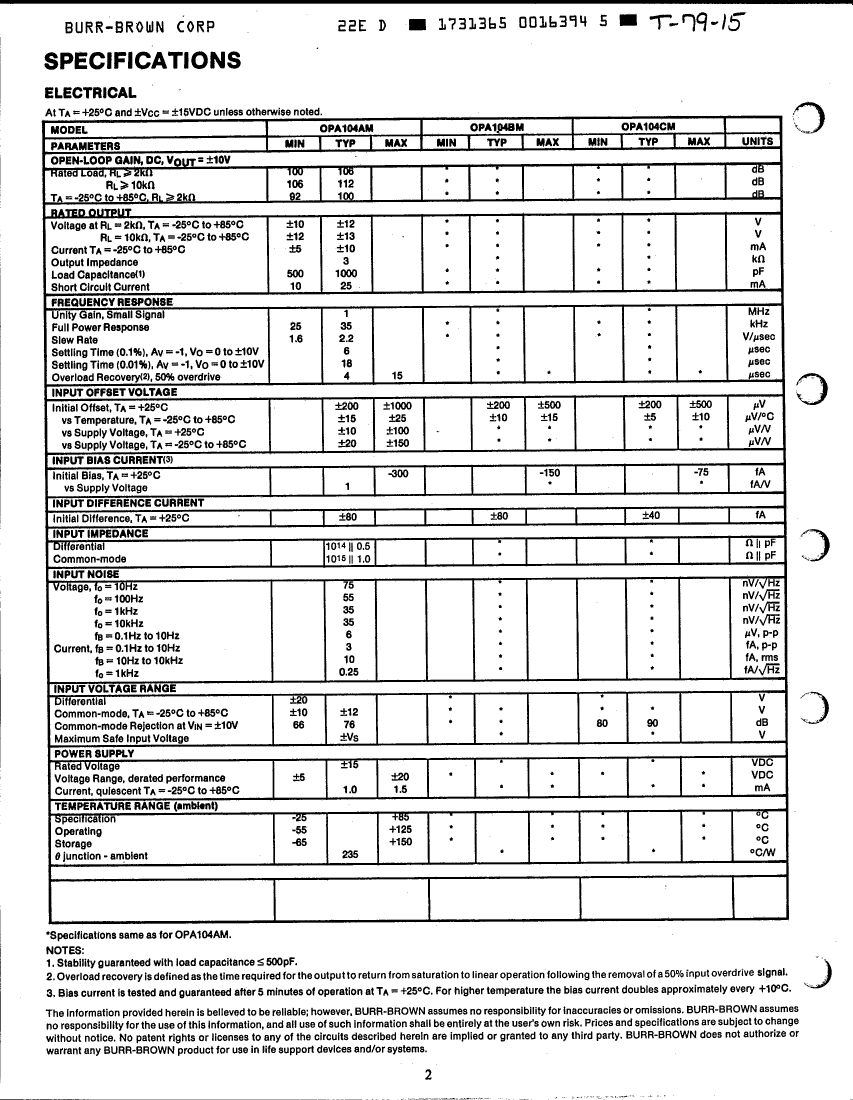

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 3e-7 µA |
| frequency compensation | YES |
| Maximum input offset voltage | 1000 µV |
| JESD-30 code | O-MBCY-W8 |
| JESD-609 code | e0 |
| low-bias | YES |
| low-dissonance | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Package body material | METAL |
| Encapsulate equivalent code | CAN8,.2 |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| power supply | +-15 V |
| Certification status | Not Qualified |
| minimum slew rate | 1.6 V/us |
| Maximum slew rate | 3 mA |
| Nominal supply voltage (Vsup) | 15 V |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Minimum voltage gain | 40000 |
| Base Number Matches | 1 |
| OPA104AM | OPA104BM | |
|---|---|---|
| Description | Operational Amplifier, 1 Func, 1000uV Offset-Max, MBCY8, | Operational Amplifier, 1 Func, 1170uV Offset-Max, MBCY8, |
| Is it Rohs certified? | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 3e-7 µA | 1.5e-7 µA |
| frequency compensation | YES | YES |
| Maximum input offset voltage | 1000 µV | 1170 µV |
| JESD-30 code | O-MBCY-W8 | O-MBCY-W8 |
| JESD-609 code | e0 | e0 |
| low-bias | YES | YES |
| low-dissonance | NO | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V |
| Number of functions | 1 | 1 |
| Number of terminals | 8 | 8 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -25 °C | -25 °C |
| Package body material | METAL | METAL |
| Encapsulate equivalent code | CAN8,.2 | CAN8,.2 |
| Package shape | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL |
| power supply | +-15 V | +-15 V |
| Certification status | Not Qualified | Not Qualified |
| minimum slew rate | 1.6 V/us | 1.6 V/us |
| Maximum slew rate | 3 mA | 3 mA |
| Nominal supply voltage (Vsup) | 15 V | 15 V |
| Temperature level | OTHER | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM |
| Minimum voltage gain | 40000 | 40000 |
| Base Number Matches | 1 | 1 |
