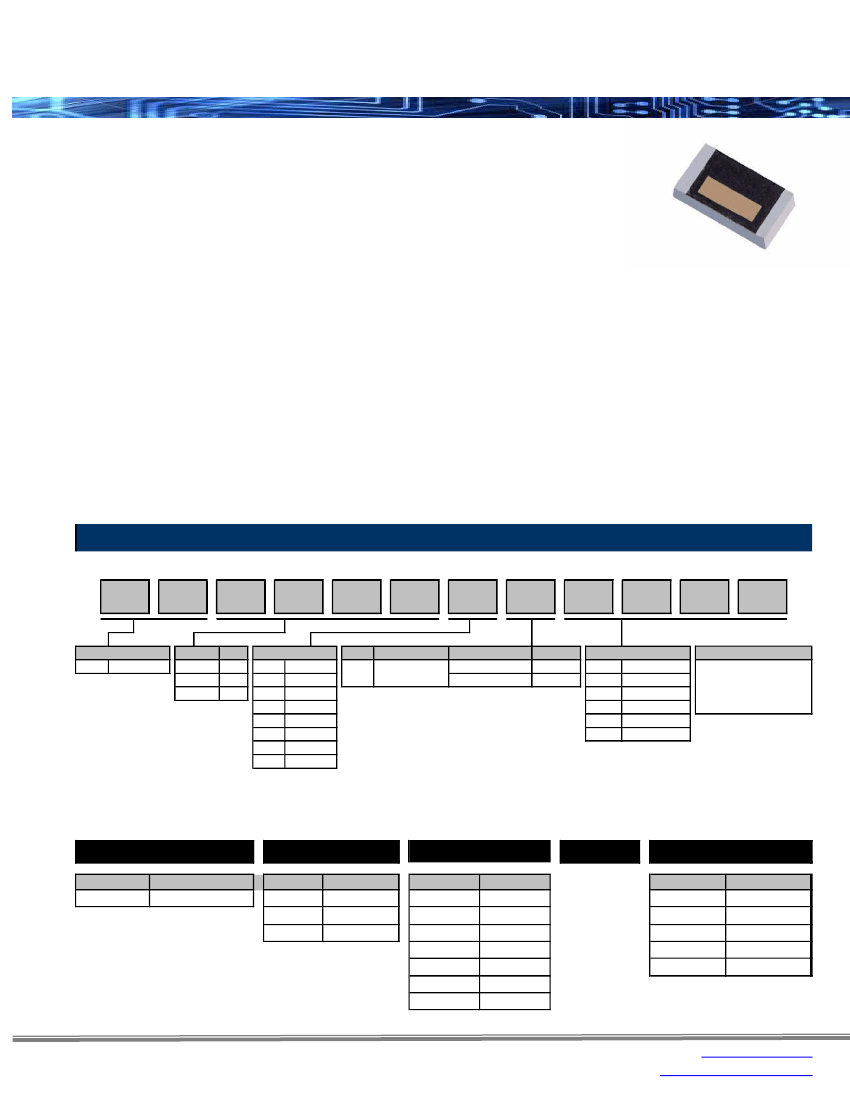

AL Series
Thin Film Chip Inductor
Features:
•
•
•
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
A photo lithographic single layer ceramic chip
Provides high SRF, excellent Q, superior temperature stability
SRF controlled within 10%
Stable inductance in high frequency circuits
Highly stable design for critical needs
Tight tolerances of ±1% down to ±0.1nH available
For inductance values outside those listed in the datasheet, contact
factory
Find frequency curves, environmental and packaging specifications in
relevant supplemental documents
•
•
•
•
Cellular phones
Pagers
GPS receiver
Bluetooth module
•
•
•
•
•
•
•
VCO and TCXO circuits
RF transceiver modules
Wireless LAN
Communication appliances
1 – 10 nH
0.2 – 33 nH
1 – 100 nH
300 – 80 mA
800 – 75 mA
800 – 100 mA
Applications:
Inductance and Current Ranges:
AL01
AL02
AL02
New Part Number Format:
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
A
L
0
4
0
2
G
T
1
0
N
0
Product Series
Thin Film
AL
Code
0201
0402
0603
Size
01
02
03
Tolerance
Tol
Code
0.1%
B
0.25%
C
0.3%
S
1%
F
2%
G
3%
H
5%
J
Code
T
Description
Tape & Reel
Size
0201, 0402
0603
Quantity
10,000
5,000
Inductance
Code Inductance
0N20
0.2 nH
1N00
1 nH
10N0
10 nH
20N8
20.8 nH
R100
100 nH
Inductance Value
Four characters with
the multiplier used as
the decimal holder.
Legacy Part Number (before January 3, 2011):
SEI Type
Dimensions
Tolerance
Packaging
Inductance
AL
Type
AL
Description
Thin Film
Code
01
02
03
02
EIA
0201
0402
0603
Code
B
C
S
F
G
H
J
G
Tolerance
±0.1 nH
±0.2 nH
±0.3 nH
±1%
±2%
±3%
±5%
T
Code
0N2
1N0
10N
20N8
R10
10N
Inductance
0.2 nH
1 nH
10 nH
20.8 nH
100 nH
Rev Date: 03/30/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
.
1
www.seielect.com
marketing@seielect.com
AL Series
Thin Film Chip Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions

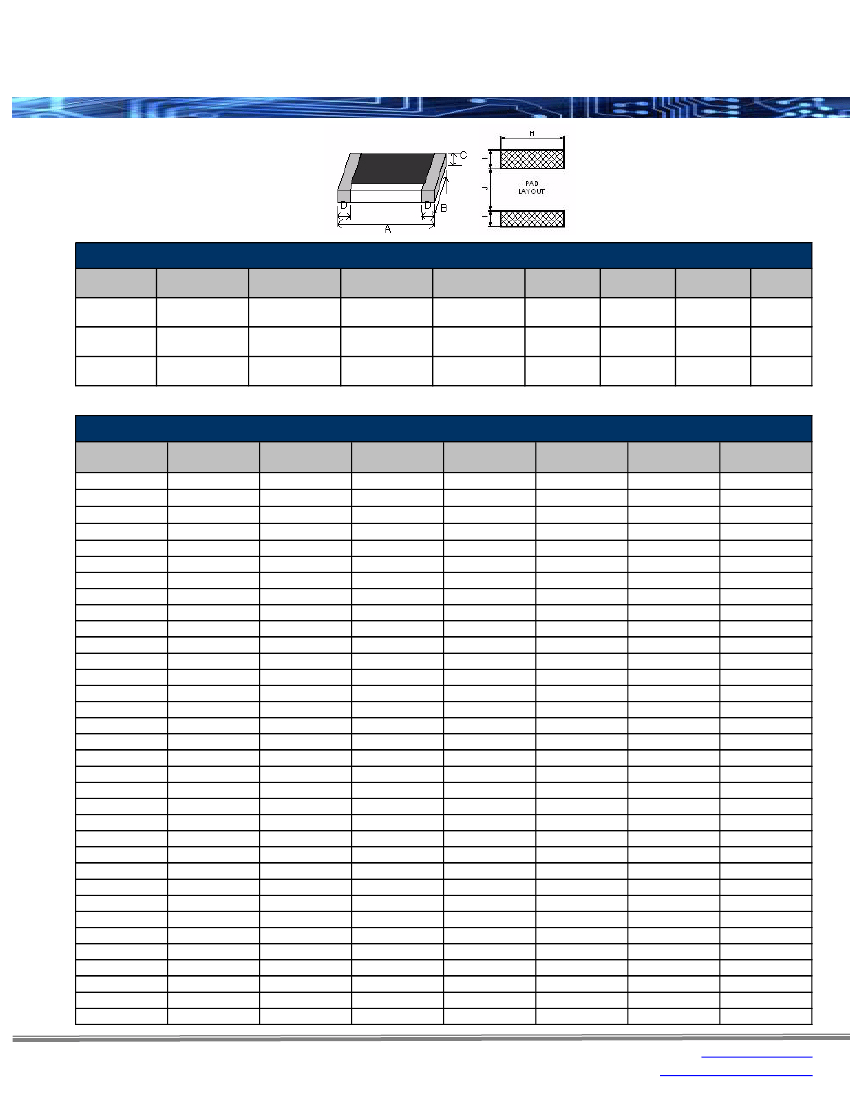

Mechanical Specifications - Standard
Type / Code
AL01
AL02
AL03
A
0.024 ± 0.002
0.60 ± 0.05
0.039 ± 0.002
1.00 ± 0.05
0.063 ± 0.004
1.60 ± 0.10
B
0.012 ± 0.002
0.30 ± 0.05
0.020 ± 0.002
0.50 ± 0.05
0.032 ± 0.004
0.80 ± 0.10
C
0.009 ± 0.002
0.23 ± 0.05
0.013 ± 0.002
0.32 ± 0.05
0.018 ± 0.004
0.45 ± 0.10
D
0.006 ± 0.002
0.15 ± 0.05
0.008 ± 0.004
0.20 ± 0.10
0.012 ± 0.008
0.30 ± 0.20
H
0.02
0.5
0.026
0.66
0.04
1.02
I
0.016
0.4
0.02
0.5
0.025
0.64
J
0.008
0.2
0.018
0.46
0.025
0.64
Units
inches
mm
inches
mm
inches
mm
Electrical Characteristics – AL01
Part
Number
AL01-T1N0
AL01-T1N1
AL01-T1N2
AL01-T1N3
AL01-T1N4
AL01-T1N5
AL01-T1N6
AL01-T1N7
AL01-T1N8
AL01-T1N9
AL01-T2N0
AL01-T2N1
AL01-T2N2
AL01-T2N3
AL01-T2N4
AL01-T2N5
AL01-T2N6
AL01-T2N7
AL01-T2N8
AL01-T2N9
AL01-T3N0
AL01-T3N1
AL01-T3N2
AL01-T3N3
AL01-T3N4
AL01-T3N5
AL01-T3N6
AL01-T3N7
AL01-T3N9
AL01-T4N7
AL01-T5N6
AL01-T6N8
AL01-T8N2
AL01-T10N
L
(nH)
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.9
4.7
5.6
6.8
8.2
10.0
Q Factor
/Min
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
Test Freq
(MHz)
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
Tolerance
(% or nH)
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
2%, 5%
2%, 5%
2%, 5%
2%, 5%
SRF
(GHz)
9
9
9
9
9
9
9
9
9
9
8
8
8
8
8
8
8
8
6
6
6
6
6
6
6
6
6
6
6
6
4
4
3
2
DCR
(Ω) Max
0.30
0.35
0.35
0.45
0.45
0.45
0.55
0.55
0.55
0.55
0.70
0.70
0.70
0.80
0.80
0.80
0.80
0.80
1.00
1.00
1.00
1.00
1.00
1.00
1.20
1.20
1.20
1.20
1.20
1.40
1.80
2.30
3.00
3.50
I DC
(mA) Max
300
300
300
250
250
250
200
200
200
200
200
200
200
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
130
130
110
110
80
Rev Date: 03/30/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
.
2
www.seielect.com
marketing@seielect.com
AL Series
Thin Film Chip Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics – AL02
Part
Number
AL02-T0N2
AL02-T0N4
AL02-T0N8
AL02-T1N0
AL02-T1N1
AL02-T1N2
AL02-T1N3
AL02-T1N4
AL02-T1N5
AL02-T1N6
AL02-T1N7
AL02-T1N8
AL02-T1N9
AL02-T2N0
AL02-T2N1
AL02-T2N2
AL02-T2N3
AL02-T2N4
AL02-T2N5
AL02-T2N6
AL02-T2N7
AL02-T2N8
AL02-T2N9
AL02-T3N0
AL02-T3N1
AL02-T3N2
AL02-T3N3
AL02-T3N4
AL02-T3N5
AL02-T3N6
AL02-T3N7
AL02-T3N8
AL02-T3N9
AL02-T4N7
AL02-T5N6
AL02-T5N9
AL02-T6N8
AL02-T7N2
AL02-T8N0
AL02-T8N2
AL02-T9N1
AL02-T10N
AL02-T12N
AL02-T13N8
AL02-T15N
AL02-T17N
AL02-T18N
AL02-T20N8
AL02-T22N
AL02-T27N
AL02-T33N
L
(nH)
0.2
0.4
0.8
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4.7
5.6
5.9
6.8
7.2
8.0
8.2
9.1
10.0
12.0
13.8
15.0
17.0
18.0
20.8
22.0
27.0
33.0
Q Factor
/Min
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
Test Freq
(MHz)
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
Tolerance
(% or nH)
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
0.1nH, 0.2nH, 0.3nH
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
5%
SRF
(GHz)
14.0
14.0
14.0
12.0
12.0
12.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
5.5
5.5
5.5
4.5
3.7
3.7
3.3
3.1
3.1
2.8
2.8
2.5
2.5
DCR
(Ω) Max
0.10
0.10
0.15
0.15
0.15
0.15
0.25
0.25
0.25
0.25
0.25
0.25
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.45
0.45
0.45
0.45
0.45
0.45
0.55
0.55
0.55
0.55
0.55
0.55
0.65
0.85
0.85
1.05
1.05
1.25
1.25
1.25
1.35
1.55
1.75
1.75
1.95
2.15
2.55
2.65
3.25
4.50
I DC
(mA) Max
800
800
700
700
700
700
700
700
700
560
560
560
560
560
440
440
440
440
440
440
440
380
380
380
380
380
380
380
380
380
340
340
340
320
280
280
260
260
220
220
220
200
180
180
130
100
100
90
90
75
75
Rev Date: 03/30/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
.
3
www.seielect.com
marketing@seielect.com
AL Series
Thin Film Chip Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics – AL03
Part
Number
AL03-T1N0
AL03-T1N2
AL03-T1N5
AL03-T1N8
AL03-T2N2
AL03-T2N7
AL03-T3N3
AL03-T3N9
AL03-T4N7
AL03-T5N6
AL03-T6N8
AL03-T8N2
AL03-T10N
AL03-T12N
AL03-T15N
AL03-T18N
AL03-T22N
AL03-T27N
AL03-T33N
AL03-T39N
AL03-T47N
AL03-T56N
AL03-T68N
AL03-TR10
L
(nH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
100.0
Q Factor
/Min
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
Test Freq
(MHz)
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
Tolerance
(% or nH)
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
0.1nH, 0.2nH
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
1%, 2%, 3%, 5%
2%, 3%, 5%
SRF
(GHz)
13.0
13.0
10.0
10.0
8.0
6.0
6.0
6.0
5.0
5.0
5.0
4.0
4.0
3.0
3.0
2.0
2.0
2.0
1.5
1.5
1.5
1.0
1.0
1.0
DCR
(Ω) Max
0.35
0.35
0.35
0.35
0.35
0.45
0.45
0.45
0.55
0.65
0.75
0.95
0.95
1.05
1.35
1.65
1.95
2.35
2.75
3.00
3.00
5.00
5.00
7.50
I DC
(mA) Max
800
800
800
300
300
300
300
300
300
300
300
300
300
300
300
300
250
250
250
200
200
150
150
100
Rev Date: 03/30/2011
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
.
4
www.seielect.com
marketing@seielect.com
京公网安备 11010802033920号
EEWORLD
