CRG-10B-255: DescriptionBI-DIRECTIONAL COUPLERS; CategoryWireless rf/communication Radio frequency and microwave; File Size59KB，1 Pages; ManufacturerMerrimac Industries（Crane）; Websitehttp://www.craneae.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CRG-10B-255 Overview

BI-DIRECTIONAL COUPLERS

CRG-10B-255 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Merrimac Industries（Crane）
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.3 dB
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	BI-DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

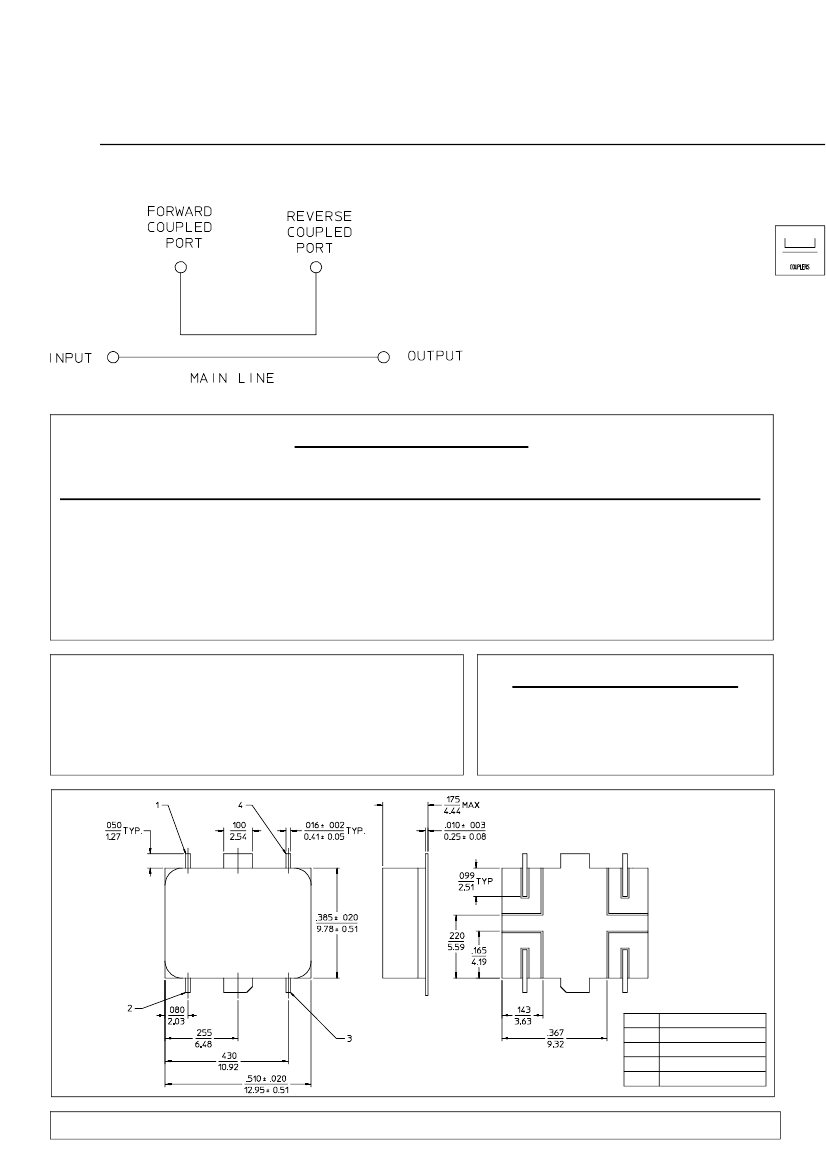

CRG-B Series

BI-DIRECTIONAL COUPLERS

5 to 1500 MHz / Multi-Octave / 4-Port / Minimal Size and Weight / Hi-Rel Surface Mount Package

PRINCIPAL SPECIFICATIONS

Model for

Frequency

Vapor Phase

Range,

& IR Insertion

MHz

CRG-10B-255

CRG- 20B-255

5 - 500

Performance ¤ Coupling

Bandwidth,

Value,

MHz

dB, Nom.

5 - 500

10 - 400

100 - 1500

500 - 1000

100 - 1500

500 - 1000

±1.0

Frequency

Sensitivity,

dB, Max.

0.5

0.75

0.5

Directivity, *Insertion

dB,

Loss, dB,

Min.

Max.

1.3

1.0

0.6

1.5

1.2

1.5

1.2

VSWR,

In/Out,

Max.

1.5:1

1.3:1

1.7:1

1.5:1

1.7:1

1.5:1

CRG-11B-1005 100 - 1500

CRG-20B-1005 100 - 1500

¤ Coupling is Referenced to the Input

* Insertion Loss excludes Coupling Loss

General Notes:

1. The CRG-B series of bi-directional couplers has both coupled ports

available. Units may be ordered with one coupled port terminated internally

with coupling values up to 30 dB and with coverage over selected frequency

bands up to 2 GHz.

2. These units comply with MIL-C-15370 requirements and can be supplied

screened for compliance with specifications you designate for military and

aerospace applications requiring higher reliability.

GENERAL SPECIFICATIONS

Impedance:

CW Input:

Weight, nominal:

Operating Temperature:

Ω

nom.

1 W max.

0.07 oz (2 g)

-- 55° to +85°C

B-Size Package

NOTES:

1. Tolerance on 3 place decimals

.010(.25) except as noted.

2. Dimensions in inches over millimeters.

3. Max. is largest dimension allowed.

4. All unnumbered tabs are case ground.

26Apr96

Function

Main line input

Main line output

Reverse coupled

Forward coupled

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531

CRG-10B-255 Related Products

	CRG-10B-255	CRG-20B-1005	CRG-11B-1005	CRG-20B-255
Description	BI-DIRECTIONAL COUPLERS	BI-DIRECTIONAL COUPLERS	BI-DIRECTIONAL COUPLERS	BI-DIRECTIONAL COUPLERS
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Merrimac Industries（Crane）	Merrimac Industries（Crane）	Merrimac Industries（Crane）	Merrimac Industries（Crane）
Reach Compliance Code	unknow	unknow	unknow	unknow
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm
Maximum insertion loss	1.3 dB	1.5 dB	1.5 dB	1 dB
Maximum operating frequency	500 MHz	1500 MHz	1500 MHz	500 MHz
Minimum operating frequency	5 MHz	100 MHz	100 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	BI-DIRECTIONAL COUPLER	BI-DIRECTIONAL COUPLER	BI-DIRECTIONAL COUPLER	BI-DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.5	1.7	1.7	1.5
