EKLPG080 datasheet, PDF - EEWORLD Datasheet

EKLPG080: DescriptionActive Delay Line, 1-Func, 15-Tap, True Output, ECL, PDIP13, 0.400 INCH, PLASTIC, MODULE, DIP-24/13; Categorylogic logic; File Size86KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

EKLPG080 Overview

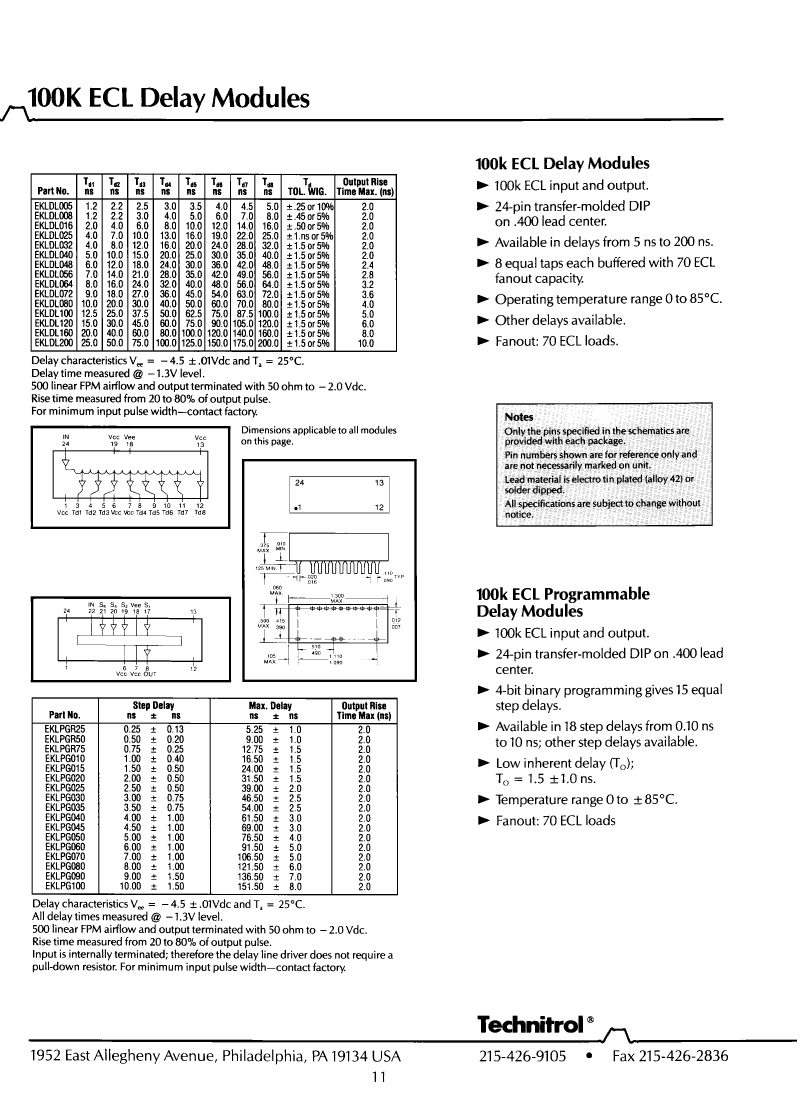

Active Delay Line, 1-Func, 15-Tap, True Output, ECL, PDIP13, 0.400 INCH, PLASTIC, MODULE, DIP-24/13

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	24/13
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FAN OUT OF 70 ECL LOADS; MAX RISE TIME CAPTURED
series	100K
JESD-30 code	R-PDIP-T13
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	15
Number of terminals	13
Maximum operating temperature	85 °C
Minimum operating temperature	-85 °C
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	9.525 mm
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	121.5 ns
width	10.16 mm
Base Number Matches	1
