T-524

Description
SCR Trigger Transformer
CategoryPower management    transformer
File Size23KB,1 Pages
ManufacturerRhombus Industries, Inc.
Websitehttp://www.rhombus-ind.com/
Download Datasheet Parametric View All

T-524 Overview

SCR Trigger Transformer

T-524 Parametric

Parameter NameAttribute value
MakerRhombus Industries, Inc.
Reach Compliance Codeunknow
ECCN codeEAR99
applicationTHYRISTOR TRIGGER
diameter0.74 mm
high0.51 mm
Insulation voltage1850 V
Manufacturer's serial numberT-524
Installation featuresTHROUGH HOLE MOUNTED
Number of functions1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
physical size0.74mm x 0.51mm
surface mountNO
Transformer typePULSE TRANSFORMER
SCR Trigger Transformer
Turns Ratio 1:1:1
PARAMETER @25
o
C
Inductance
Leakage Inductance
DC Resistance
Interwinding Capacitance
Hipot
Operating Temp. Range
1850
-55
+125
MIN.
12
MAX.
18
50
7
49
UNITS
mHy
µHy
Ohms
Pf
V
RMS
o
1
5
2
3
T-524
9601
6
4
C

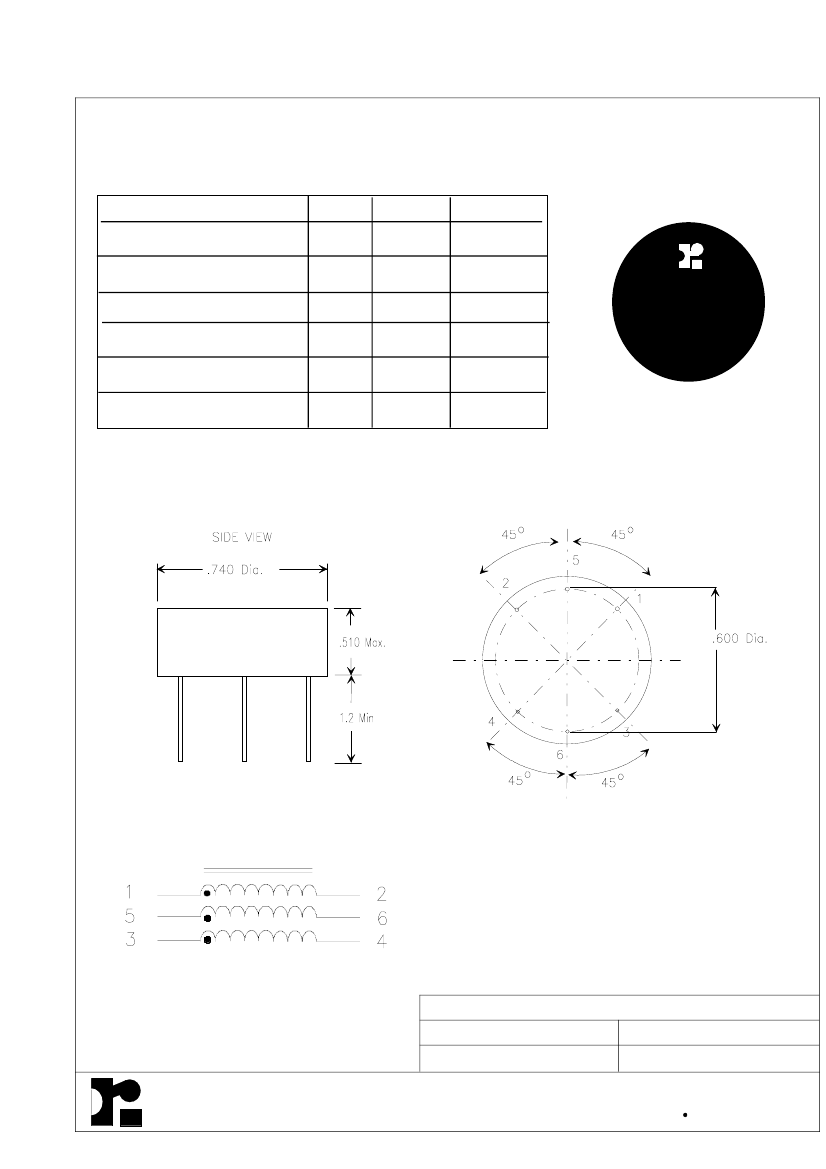

PHYSICAL DIMENSIONS
inches (mm)
SCHEMATIC DIAGRAM
RHOMBUS P/N:
CUST P/N:
DATE:
9/13/93
T-524
NAME:
SHEET:
1 OF 1
Rhombus
Industries Inc.
Transformers & Magnetic Products
www.rhombus-ind.com
15801 Chemical Lane,
Huntington Beach, CA 92649-1595
Phone: (714) 898-0960 FAX: (714) 896-0971
