DMG56406
Silicon NPN epitaxial planar type (Tr1)
Silicon PNP epitaxial planar type (Tr2)
For digital circuits
DMG26406 in SMini6 type package
Features
High forward current transfer ratio h
FE
with excellent linearity
Low collector-emitter saturation voltage V
CE(sat)
Contributes to miniaturization of sets, reduction of component count.
Eco-friendly Halogen-free package
Package
Code
SMini6-F3-B
Name
Pin
1: Emitter (Tr1)
2: Base (Tr1)
3: Collector (Tr2)
Basic Part Number
DRC2143T + DRA2143T (Individual)
4: Emitter (Tr2)
5: Base (Tr2)
6: Collector (Tr1)
Packaging
Embossed type (Thermo-compression sealing): 3000 pcs / reel (standard)
Marking Symbol: L9
Internal Connection
(C1)
6
(B2)
5
R
1
Tr1
Tr2
R
1
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Tr1
Collector-emitter voltage (Base open)
Collector current
Collector-base voltage (Emitter open)
Tr2
Collector-emitter voltage (Base open)
Collector current
Total power dissipation
Overall Junction temperature
Storage temperature
Symbol
V
CBO
V
CEO
I
C
V
CBO
V
CEO
I
C
P
T
T
j
T
stg
Rating
50
50
100
–50
–50
–100
150
150
–55 to +150
Unit
V
V
mA
V
V
mA
mW
°C
°C
Resistance
value
(E2)
4
1
(E1)
2
(B1)
3
(C2)
Tr1
Tr2
R
1
R
1
4.7
4.7
kΩ
kΩ
Electrical Characteristics
T
a
= 25°C±3°C
Tr1
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector-base cutoff current (Emitter open)
Collector-emitter cutoff current (Base open)
Emitter-base cutoff current (Collector open)
Forward current transfer ratio
Collector-emitter saturation voltage
Input voltage (ON)
Input voltage (OFF)
Input resistance
Symbol
V
CBO
V
CEO
I
CBO
I
CEO
I
EBO
h
FE
V
CE(sat)
V
I(on)
V
I(off)
R
1
Conditions
I
C
= 10 µA, I
E
= 0
I
C
= 2 mA, I
B
= 0
V
CB
= 50 V, I
E
= 0
V
CE
= 50 V, I
B
= 0
V
EB
= 6 V, I
C
= 0
V
CE
= 10 V, I
C
= 5 mA
I
C
= 10 mA, I
B
= 0.5 mA
V
CE
= 0.2 V, I
C
= 5 mA
V
CE
= 5 V, I
C
= 100 µA
–30%
4.7
1.0
0.4
+30%
160
Min
50
50
0.1
0.5
0.01
460
0.25
Typ
Max
Unit
V
V
µA
µA
mA
V
V
V
kΩ
Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
Publication date: May 2010
ZJJ00775AED
1
This product complies with the RoHS Directive (EU 2002/95/EC).
DMG56406
Electrical Characteristics (Continued)
T
a
= 25°C±3°C
Tr2
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector-base cutoff current (Emitter open)
Collector-emitter cutoff current (Base open)
Emitter-base cutoff current (Collector open)
Forward current transfer ratio
Collector-emitter saturation voltage
Input voltage (ON)
Input voltage (OFF)
Input resistance
Symbol
V
CBO
V
CEO
I
CBO
I
CEO
I
EBO
h
FE
V
CE(sat)
V
I(on)
V
I(off)
R
1
Conditions
I
C
= –10 µA, I
E
= 0
I
C
= –2 mA, I
B
= 0
V
CB
= –50 V, I
E
= 0
V
CE
= –50 V, I
B
= 0
V
EB
= –6 V, I
C
= 0
V
CE
= –10 V, I
C
= –5 mA
I
C
= –10 mA, I
B
= – 0.5 mA
V
CE
= – 0.2 V, I
C
= –5 mA
V
CE
= –5 V, I
C
= –100 µA
–30%
4.7
–1.0
– 0.4
+30%
160
Min
–50
–50
– 0.1
– 0.5
– 0.01
460
– 0.25
Typ
Max
Unit
V
V
µA
µA
mA
V
V
V
kΩ
Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.

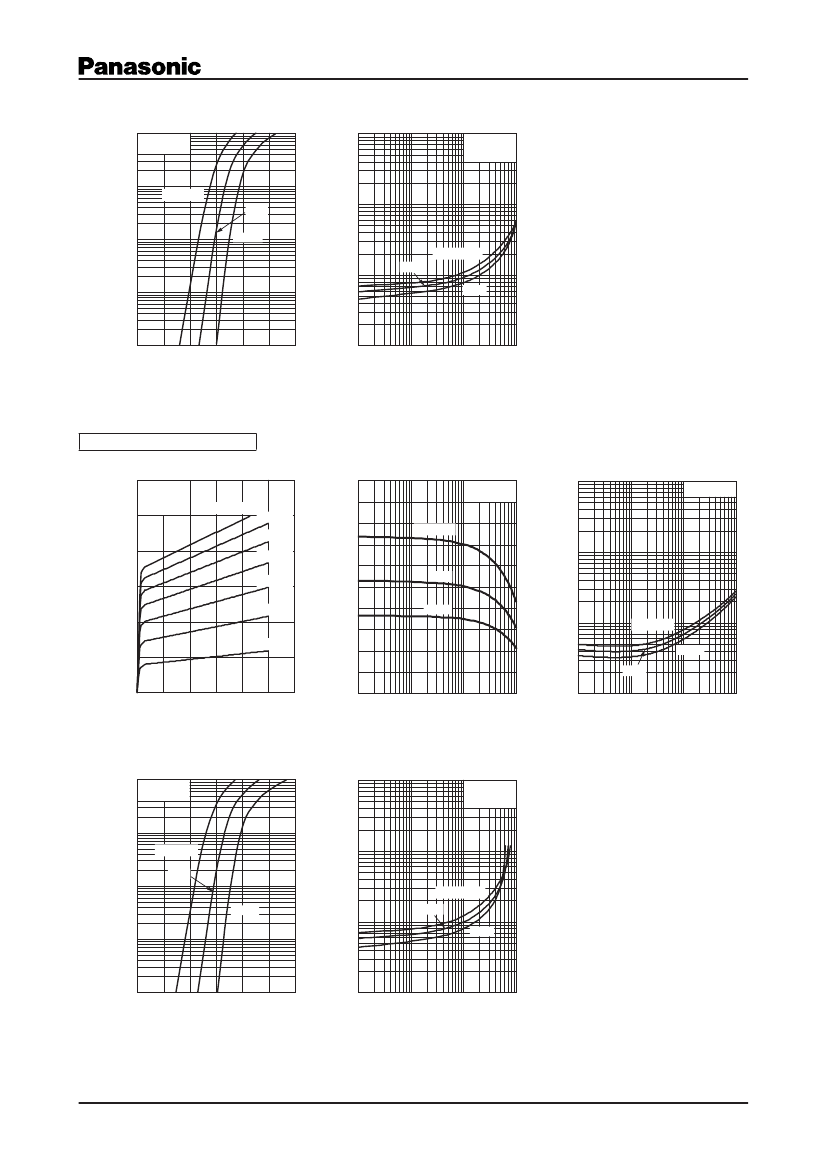

Common characteristics chart
DMG56406_PT-Ta
P
T
T
a
200
Total power dissipation P
T
(mW)
150
100
50
0
0
40
80
120
160
200
Ambient temperature T
a
(
°C
)
Characteristics charts of Tr1
DMG56406(Tr1)_IC-VCE
I
C
V
CE
120
T
a
=
25°C
500
DMG56406(Tr1)_hFE-IC
DMG56406(Tr1)_VCEsat-IC
h
FE
I
C
Collector-emitter saturation voltage V
CE(sat)
(V)
V
CE
=
10 V
10
V
CE(sat)
I
C
I
C
/ I
B
= 20
Forward current transfer ratio h
FE
100
Collector current I
C
(mA)
400
T
a
=
85°C
80
60
40
20
0
I
B
=
350
µA
300
µA
250
µA
200
µA
150
µA
100
µA
50
µA
1
300
25°C
−30°C
200
0.1
T
a
=
85°C
−30°C
25°C
1
10
100
100
0
2
4
6
8
10
12
0
0.1
1
10
100
0.01
0.1
Collector-emitter voltage V
CE
(V)
Collector current I
C
(mA)
Collector current I
C
(mA)
2
ZJJ00775AED
