T-11200: DescriptionToken Ring Transformers - DIP / SMD Packages; CategoryPower management transformer; File Size40KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric View All

T-11200 Overview

Token Ring Transformers - DIP / SMD Packages

T-11200 Parametric

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
application	TOKEN RING
high	6.35 mm
Insulation voltage	500 V
length	12.7 mm
Manufacturer's serial number	T-11200
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
physical size	12.7mm X 10.16mm X 6.35mm
Primary inductance	1000 µH
Maximum pulse rise time	15 ns
surface mount	NO
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1:2:2
width	10.16 mm

Preview

Download Datasheet

View All

Token Ring Transformers

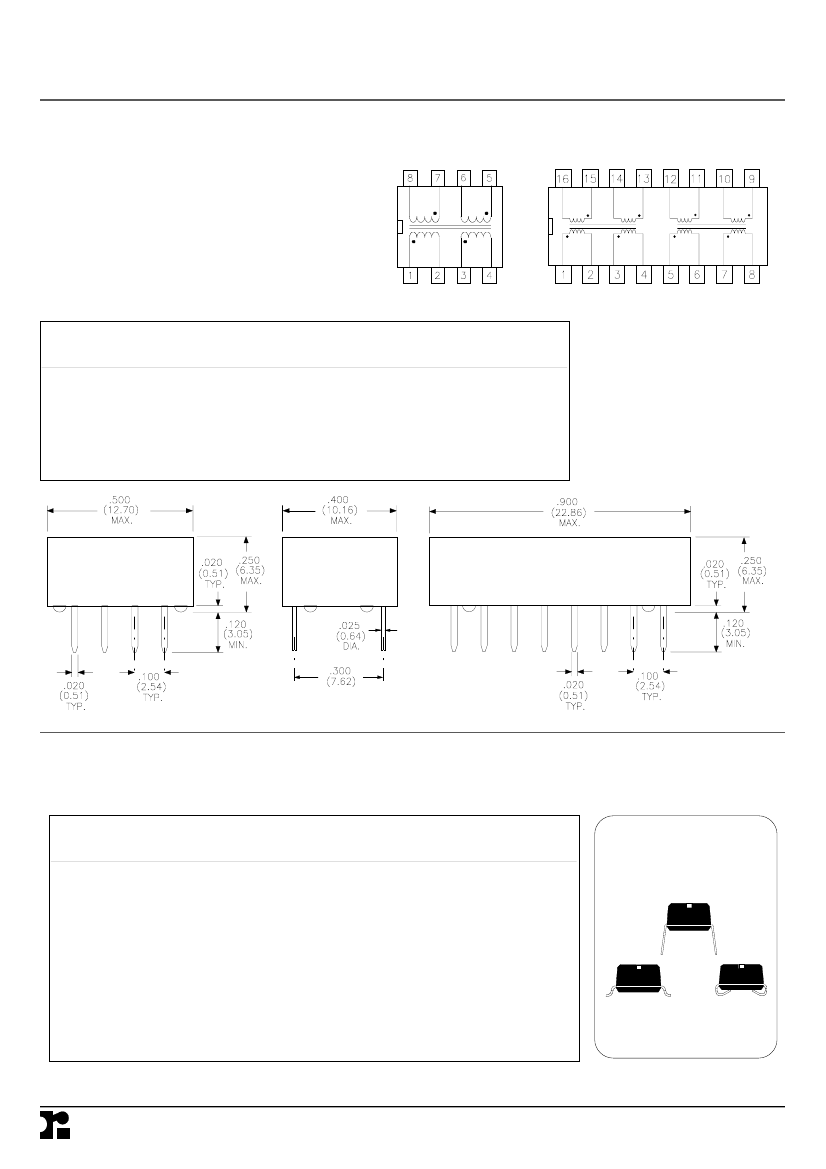

IEEE 802.5 Compatible -- High Isolation

Single and Dual Low Profile Packages

Designed For IBM Token Ring Applications

Insertion Loss ..................... 0.5 dB max. at 10 MHz

Return Loss ............................ 20 dB min. at 5 MHz

Dielectric withstanding voltage ............... 500 Vrms

CMRR .................................... -60 dB min. at 1 MHz

Electrical Specifications at 25

O

C

OCL

Part

Turns

min.

Number

Ratio

(

µH

)

T-11200

T-11201

T-11202

T-11203

T-11204

T-11205

1:1:2:2

1:1:1:1

1000

250

750

Primary

Secondary

C

W/W

max.

( pF )

15

25

L

max.

(

µH

)

.40

.15

.20

Rise Time

max.

( ns )

15.0

5.0

Pri & Sec.

DCR max.

(

Ω

)

0.4 & 0.8

0.5 & 0.8

1.0 & 1.0

Secondary

Style

Single

Dual

Single

Dual

Single

Dual

Package

8-Pin

16-Pin

8-Pin

16-Pin

8-Pin

16-Pin

Token Ring Transformers - DIP / SMD Packages

Refer to Schematic Diagrams and General Parameters at top of page.

C

W/W

max.

( pF )

L

max.

(

µH

)

Rise Time

max.

( ns )

Pri & Sec.

DCR max.

(

Ω

)

Electrical Specifications at 25

O

C

DIP

OCL

Part

Turns

min.

Number

Ratio

(

µH

)

Style

Package

8 &16 Pin DIP/SMD Packages

(Add

G

or

J

to P/N for SMD)

See pg. 40, fig. 4, 5 & 6

D

T-11280

T-11281

T-11282

T-11283

T-11284

T-11285

T-11206

T-11208

T-11210

T-11212

1:1:2:2

1:1:1:1

1:1:2:2

1:1:1:1

1000

250

750

60

15

25

14

.40

.15

.20

.30

15.0

5.0

3.0

0.4 & 0.8

0.5 & 0.8

1.0 & 1.0

0.2 & 0.4

0.2 & 0.2

Single

Dual

Single

Dual

Single

Dual

Single

Dual

SIngle

Dual

8-Pin

16-Pin

8-Pin

16-Pin

8-Pin

16-Pin

8-Pin

16-Pin

8-Pin

16-Pin

SMD versions

available on

Tape & Reel

G

J

Specifications subject to change without notice.

For other values & Custom Designs, contact factory.

TOK - 7/97

Rhombus

Industries Inc.

36

15801 Chemical Lane, Huntington Beach, CA 92649-1595

Tel: (714) 898-0960

•

Fax: (714) 896-0971
