FAB-10-1.25K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FAB-10-1.25K

FAB-10-1.25K: DescriptionFIXED COAXIAL ATTENUATORS; CategoryWireless rf/communication Radio frequency and microwave; File Size95KB，2 Pages; ManufacturerMerrimac Industries（Crane）; Websitehttp://www.craneae.com/; Environmental Compliance

Download Datasheet Parametric View All

FAB-10-1.25K Overview

FIXED COAXIAL ATTENUATORS

FAB-10-1.25K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Merrimac Industries（Crane）
Reach Compliance Code	unknow
Nominal attenuation	10 dB
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	2500 MHz
Minimum operating frequency
Maximum operating temperature	95 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

FA Series

FIXED COAXIAL ATTENUATORS

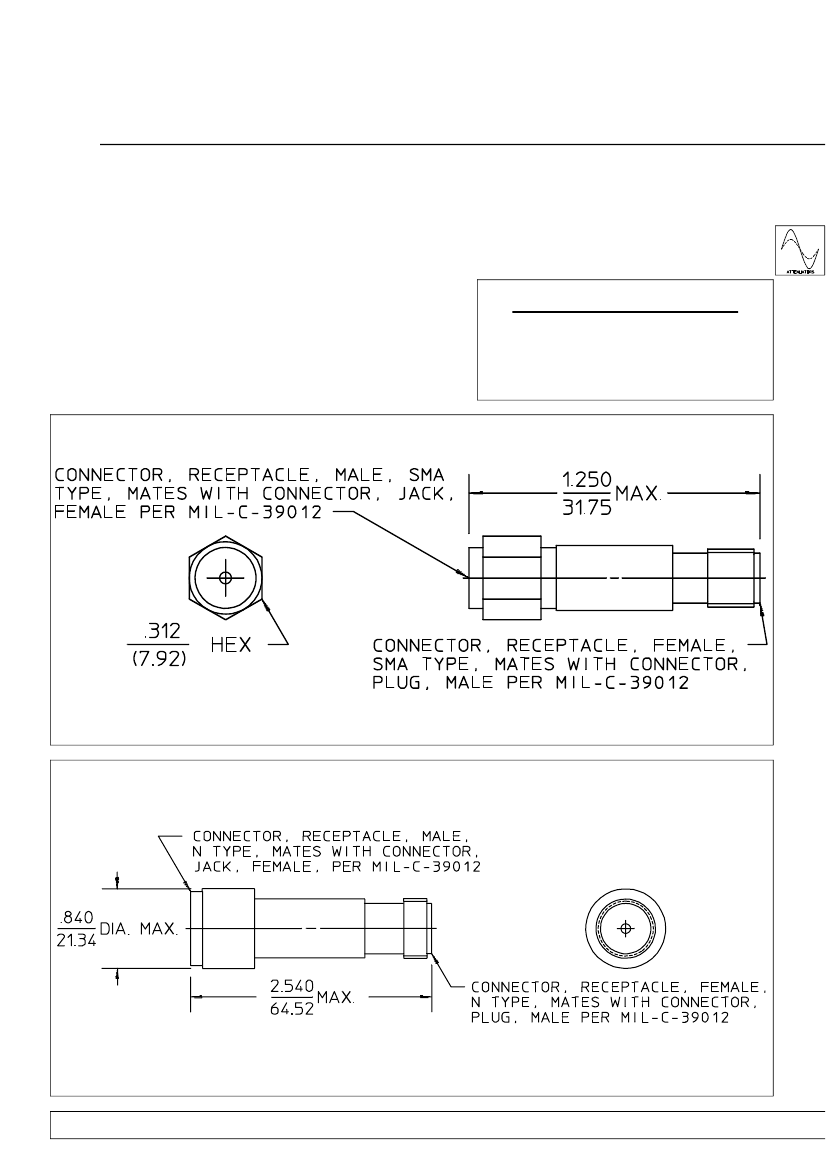

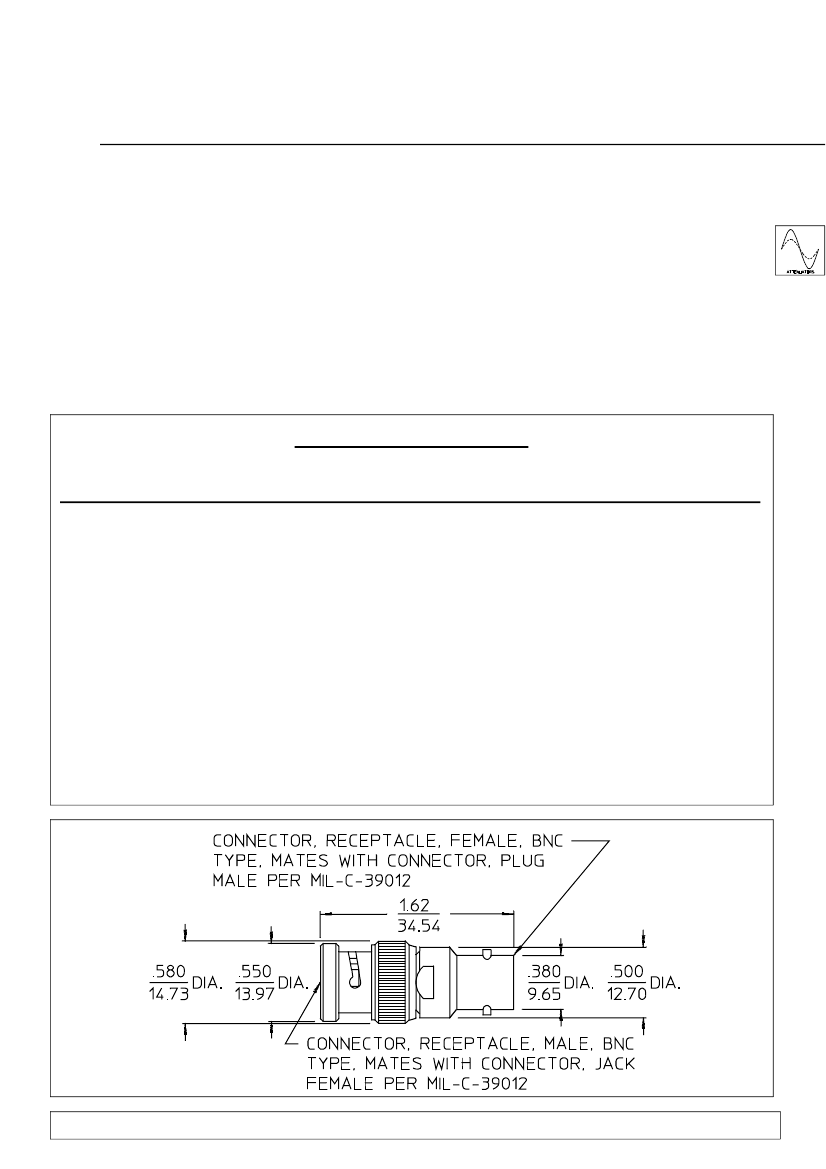

DC to 18 GHz / 3, 6, 10 & 20 dB / Meets MIL-E-16400 Class 1 & MIL-E-5400 Class 3 / BNC, SMA &

PRINCIPAL SPECIFICATIONS

Model

Number

FAB-3-1.25K

FAB-6-1.25K

FAB-10-1.25K

FAB-20-1.25K

FAM-6-3K

FAM-6-6K

FAM-6-10K

FAM-6-20K

FAM-9-3K

FAM-9-6K

FAM-9-10K

FAM-9-20K

FAN-6-3K

FAN-6-6K

FAN-6-10K

FAN-6-20K

FAB series

NOTES:

1. Tolerance on 3 place decimals

.020(.51) except as noted.

2. Dimensions in inches over millimeters.

Frequency

Range,

GHz

DC - 2.5

Attenuation

& Accuracy,

±0.3

±0.5

±0.3

±0.5

±1.0

±0.3

±0.5

Connector

Type

BNC (m-f)

VSWR,

Max.

1.20:1

Performance

Band,

GHz

DC - 2.5

Power,

W, Max.

Weight,

oz. (g),

Nom.

1 (28)

DC - 12.4

SMA (m-f)

1.20:1

1.30:1

DC - 4.0

4.0 - 12.4

0.5

0.4 (11)

DC - 18.0

SMA (m-f)

1.20:1

1.30:1

1.35:1

1.20:1

1.30:1

1.35:1

DC - 4.0

4.0 - 12.4

12.4 - 18.0

DC - 4.0

4.0 - 10.0

10.0 - 12.4

0.5

0.4 (11)

DC - 12.4

N (m-f)

0.5

3.5 (98)

MAX

05Mar96

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531
