D68BP & D68BR Series

Band Pass and Band Reject

Description:

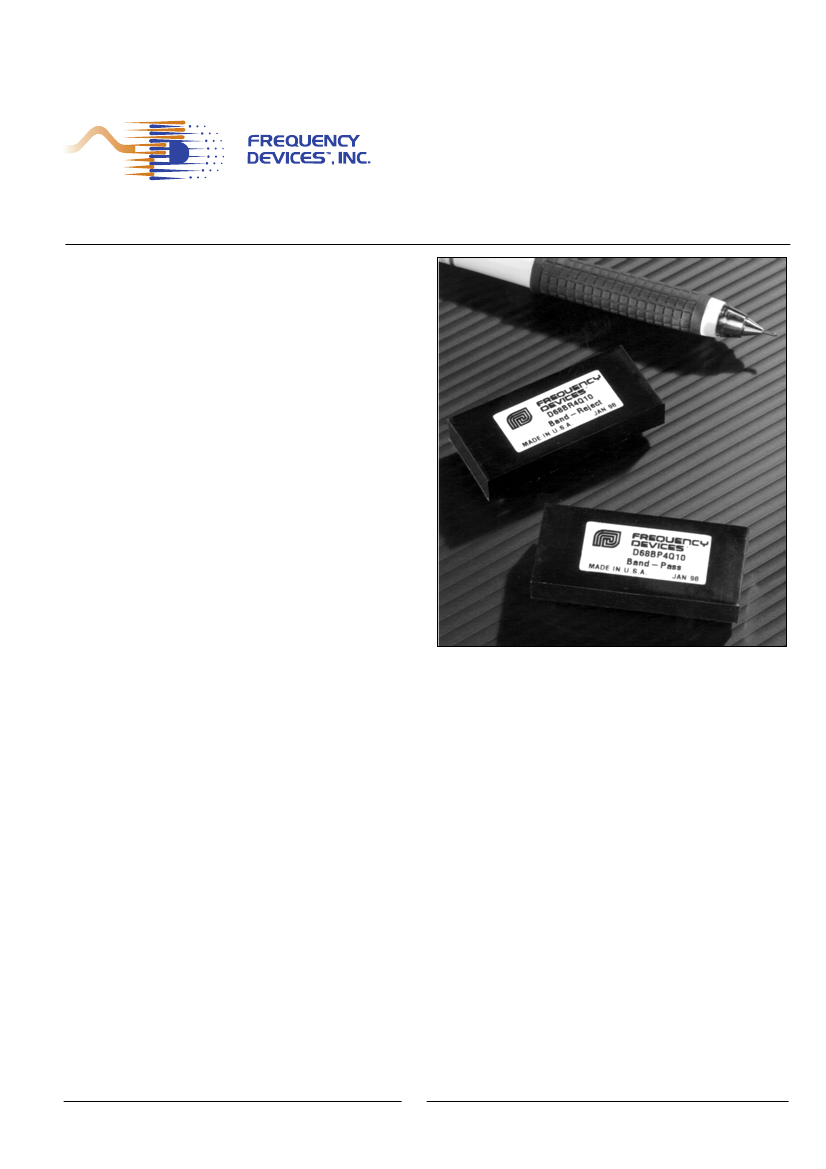

The D68BP and D68BR Series of small 4-pole-pair

fixed-frequency, precision band-pass and band-

reject (notch) active filters that provide high

performance in a compact 32-pin DIP package, with

a broad range of fixed center frequencies (fo) from 1

Hz to 100 kHz. Each filter type features a near

theoretical amplitude/phase response along with low

output voltage noise enabling these filters to achieve

a 10,000:1 or better dynamic signal range.

Pretuned to within ±2% of the fixed, user specified

center frequency, D68BP band-pass filters pass all

frequencies lying between the upper and lower -3dB

points of the amplitude response curve, while D68BR

band-reject (notch) filters sharply attenuate those

frequencies that are bound and defined by the

bottom of the notch. Available Q’s for D68 BP

models are 1, 2, 5, or 10 and D68BR filters are 3 or

10.

Features/Benefits:

• Compact 32-pin footprint minimizes board space

requirements.

• Plug-in ready-to-use, reducing engineering design

and manufacturing cycle time.

• Factory tuned, no external clocks or adjustments

needed

• Broad range of center frequencies to meet a wide

range of applications.

Applications

• Power line interference rejection

• Transducer output filtering

• Production test instrumentation

• Medical electronics equipment and research

• Comb filtering and equalization

• Noise and harmonic analysis

• RMS measurements

• Frequency spectrum analysis

1

Fixed Frequency

4-Pole Pair Filters

Available Band-Pass Models:

. . . . . . . . . . . . .Page

D68BP4

4 pole pair . . . . . . . . . . . . . . . . . . .2

Available Band-Reject Models:

D68BR4

4-pole pair . . . . . . . . . . . . . . . . . . .2

General Specifications:

Ordering Information . . . . . . . . . . . . . . . . . . . . . . .3

Pin-Out/Package Data . . . . . . . . . . . . . . . . . . . . . .3

1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176

e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com

D68BP & D68BR Series

Band-Pass & Band-Reject

Model

Product Specifications

Size

Range f

o

Available "Q’s"

1

"Q" Accuracy

Theoretical Transfer

Characteristics

D68BP4

Band-Pass

1.8" x 0.8" x 0.3"

1 Hz to 100 kHz

1, 2, 5, 10

±10 %

Appendix A

Pages 41 & 42

Fixed Frequency

4-Pole Pair Filters

Model

Product Specifications

Size

Range f

o

Available "Q’s"

1

"Q" Accuracy

Theoretical Transfer

Characteristics

Notch Attenuation

D68BR4

Band-Reject

1.8" x 0.8" x 0.3"

1 Hz to 100 kHz

3, 10

±10 %

Appendix A

Pages 43

45 db typ.

0 ± 0.2 dB typ.

0 ± 0.4 dB max.

24 dB/octave

f

o

±0.01%/°C

FMA-01A

±2% max.

Pass-Band Gain

(non-inverting)

0 ± 0.2 dB typ

0 ± 0.4 dB max.

24 dB/octave

f

o

±0.01%/°C

FMA-01A

±2% max.

Pass-Band Gain

(non-inverting)

Attenuation Rate

Center Frequency

Stability

Filter Mounting

Assembly

Attenuation Rate

Center Frequency

Stability

Filter Mounting

Assembly

f

O

=

1. Q – Quality Factor for band-pass and band-reject filters. Q = f

O

/(f

H

-f

L

)

√

f

H

f

L

2

1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176

e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com

D68BP & D68BR Series

Specification

(25°C and Vs ±15Vdc)

Analog Input Characteristics

1

Impedance

Voltage Range

Max. Safe Voltage

Analog Output Characteristics

Impedance (Closed Loop)

Linear Operating Range

2

Maximum Current

3

Offset Voltage

Offset Temp. Coeff.

Power Supply (

±

V)

Rated Voltage

Operating Range

Maximum Safe Voltage

Quiescent Current

Temperature

Operating

Storage

10 k

Ω

min.

±

10 Vpeak

±

Vs

11

Ω

typ.

10

Ω

max.

±

10V

±

2 mA

22

mV typ.

20 mV max.

50

µV/°C

Pin-Out and Package Data

Ordering Information

Pin-Out & Package Data

0.80

Side View

0.025 dia.

1.80

All dimensions are in inches

All case dimensions

±

0.01"

Front View

0.30

0.15 (min)

±

15 Vdc

±

5 to

±

18 Vdc

±

18 Vdc

±

25 mA typ.

±

40 mA max.

-20

to +70°C

-25 to +85°C

0.80

0.70

OUT

+VS

-VS OS

4

Bottom View

GND

IN

0.10

0.00

0.15

0.45

0.55

1.55

1.65

1.80

Ordering Information

DC Offset Adjustment

± Vs

Do not connect

if trim is not

required.

20 k

Ω

(Cermet)

OS

Filter Type

BP

- Band Pass

BR

- Band Reject

D68BP4/10-849 Hz

“Q”

BP

- 1, 2, 5, 10

BR

- 3, 10

(fo) Center Frequency

5

e.g.,

849 Hz

2.50 kHz

33.3 kHz

Notes:

- Vs

1. Input and output signal voltage referenced to supply common.

2. Output is short circuit protected to common. DO NOT CONNECT TO ±Vs.

3. Adjustable to zero.

4. Units operate with or with out offset pin connected.

5. How to Specify Center Frequency:

Center frequencies are specified by attaching a three digit frequency

designator to the basic model number. Center frequencies can range from

1.00 Hz to 100 kHz.

We hope the information given here will be helpful. The information is based on data and our best knowledge, and we consider the information to be true and accurate. Please read all statements,

recommendations or suggestions herein in conjunction with our conditions of sale which apply to all goods supplied by us. We assume no responsibility for the use of these statements,

recommendations or suggestions, nor do we intend them as a recommendation for any use which would infringe any patent or copyright.

IN-D68BP/BR-04

3

1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176

e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com

Band-Pass

4-Pole Pair

Appendix A

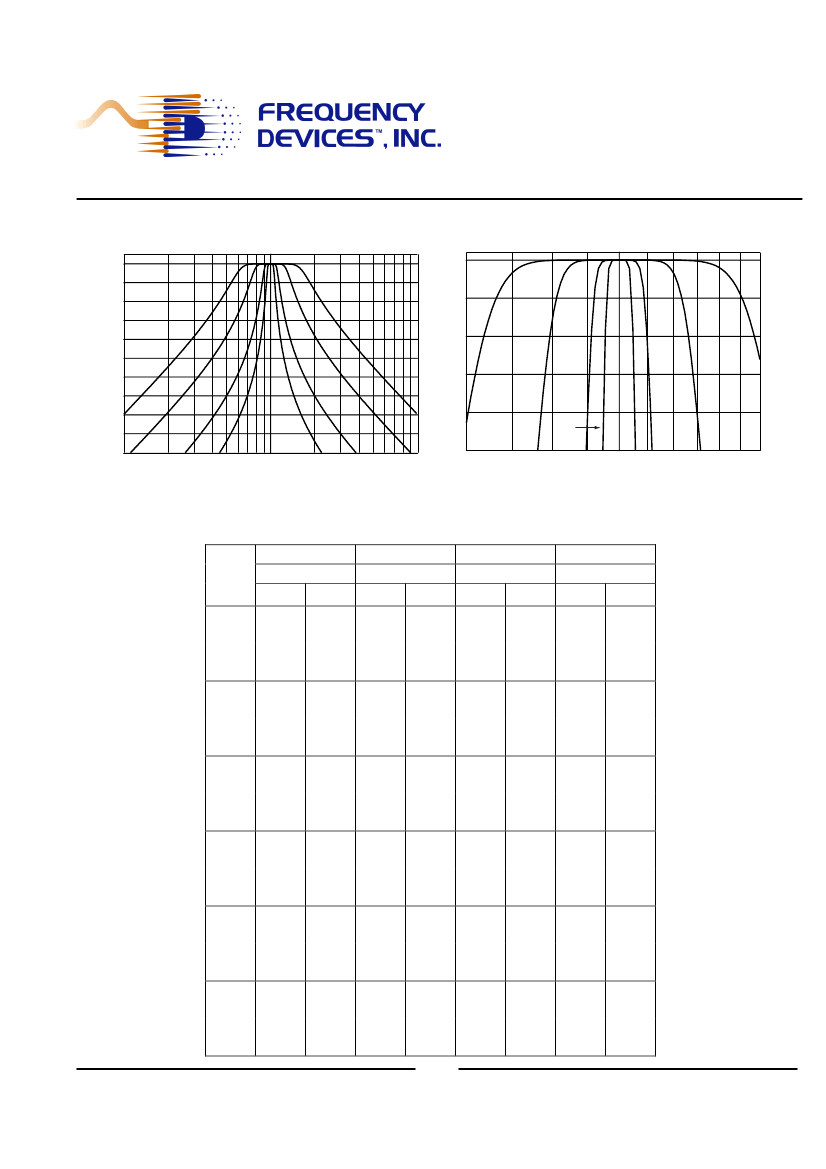

Amplitude Response Curves

0

-10

-20

-30

0

Q1

-1

Q1

Q2

Q5

Amp (dB)

-40

-50

-60

-70

-80

-90

Q2

-2

Q5

-3

-4

-100

0.1

2

3

4

5

6

7 8

Q10

Normalized Frequency (f/fo)

1.0

2

3

4

5

6

7 8

Q10

0.6

0.7

0.8

0.9

-5

10.0

1.0

1.1

1.2

1.3

1.4

1.5 1.6

Normalized Frequency (f/fo)

Normalized Theoretical Amplitude Data

Q=1

Amp

(dB)

-0.10

-0.25

-0.50

-1.00

-1.50

-2.00

-2.50

-3.00

-5.00

-10.00

-15.00

-20.00

-25.00

-30.00

-35.00

-40.00

-45.00

-50.00

-55.00

-60.00

-65.00

-70.00

-75.00

-80.00

f

L

< f

O

< f

H

f/f

o

0.735

0.709

0.687

0.663

0.648

0.636

0.627

0.618

0.591

0.539

0.493

0.449

0.407

0.365

0.326

0.290

0.256

0.225

0.197

0.173

0.151

0.131

0.114

0.099

f/f

o

1.360

1.411

1.456

1.508

1.543

1.571

1.596

1.618

1.692

1.855

2.027

2.225

2.459

2.737

3.065

3.452

3.908

4.442

5.067

5.796

6.644

7.630

8.774

10.01

Q=2

f

L

< f

O

< f

H

f/f

o

0.856

0.840

0.826

0.811

0.801

0.793

0.787

0.781

0.762

0.724

0.688

0.650

0.611

0.570

0.527

0.484

0.441

0.399

0.358

0.319

0.283

0.250

0.220

0.193

f/f

o

1.168

1.191

1.211

1.233

1.249

1.261

1.271

1.281

1.313

1.382

1.454

1.538

1.637

1.755

1.896

2.065

2.267

2.507

2.793

3.131

3.530

4.000

4.550

5.193

Q=5

f

L

< f

O

< f

H

f/f

o

0.939

0.932

0.926

0.919

0.914

0.911

0.908

0.905

0.896

0.877

0.858

0.838

0.816

0.791

0.763

0.733

0.699

0.664

0.625

0.585

0.543

0.500

0.457

0.414

f/f

o

1.064

1.073

1.080

1.088

1.094

1.098

1.102

1.105

1.116

1.140

1.165

1.193

1.226

1.265

1.311

1.365

1.430

1.507

1.599

1.710

1.842

2.000

2.189

2.414

Q = 10

f

L

< f

O

< f

H

f/f

o

0.969

0.965

0.962

0.959

0.956

0.954

0.953

0.951

0.946

0.936

0.926

0.915

0.903

0.888

0.872

0.854

0.834

0.811

0.786

0.758

0.727

0.693

0.657

0.618

f/f

o

1.032

1.036

1.039

1.043

1.046

1.048

1.050

1.051

1.057

1.068

1.080

1.093

1.108

1.126

1.146

1.171

1.199

1.233

1.273

1.320

1.376

1.443

1.523

1.618

41

1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176

e-mail: sales@freqdev.com Web Address: http://www.freqdev.com

Band-Pass

4-Pole Pair

Appendix A

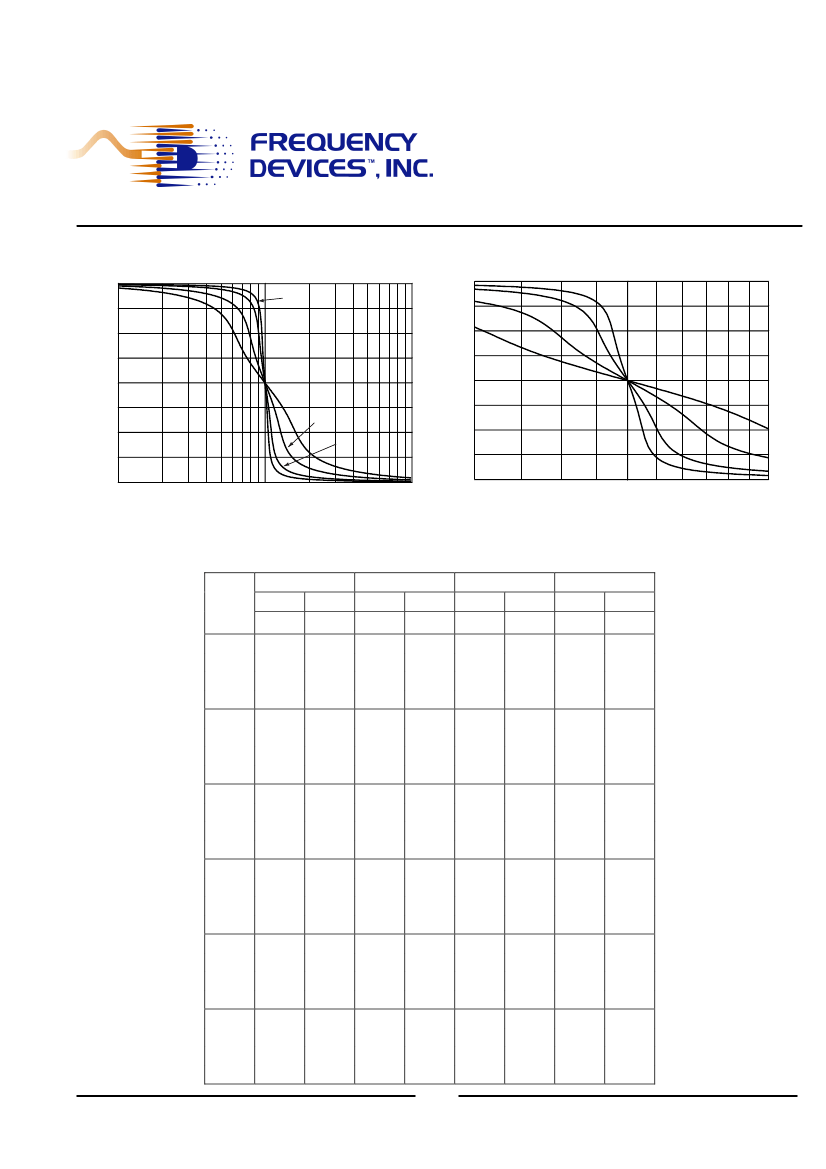

Phase Response Curves

360

270

Q10

360

270

Phase (deg)

180

90

0

-90

Phase (deg)

180

90

0

-90

Q1

-180

-270

-360

Q2

Q5

-180

-270

-360

0.6

0.7

0.8

0.9

Q1

Q2

Q10

Q5

0.1

2

3 4 5 6 78

1.0

10.0

Normalized Frequency (f/fo)

2

3 4 5 6 78

1.0

1.1 1.2 1.3 1.4 1.5 1.6

Normalized Frequency (f/fo)

Normalized Theoretical Phase Data

Phase

Mag

(deg)

1.0

2.5

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

45.0

50.0

60.0

70.0

80.0

90.0

120.0

150.0

180.0

210.0

240.0

270.0

300.0

330.0

Q=1

(+)

(-)

f /f o f /f o

0.997 1.003

0.992 1.008

0.983 1.017

0.967 1.034

0.951 1.051

0.936 1.069

0.920 1.087

0.905 1.105

0.891 1.123

0.876 1.141

0.863 1.159

0.849 1.178

0.823 1.215

0.799 1.252

0.776 1.288

0.755 1.324

0.701 1.426

0.657 1.521

0.618 1.618

0.577 1.734

0.525 1.904

0.452 2.210

0.345 2.899

0.192 5.211

Q=2

(+)

(-)

f /f o f /f o

0.998 1.002

0.996 1.004

0.992 1.008

0.983 1.017

0.975 1.025

0.967 1.034

0.959 1.042

0.951 1.051

0.944 1.060

0.936 1.068

0.929 1.077

0.921 1.086

0.907 1.103

0.893 1.120

0.880 1.136

0.868 1.152

0.835 1.198

0.807 1.239

0.781 1.281

0.752 1.330

0.713 1.403

0.653 1.532

0.548 1.825

0.350 2.859

Q=5

(+)

(-)

f /f o f /f o

0.999 1.001

0.998 1.002

0.997 1.003

0.993 1.007

0.990 1.010

0.987 1.013

0.984 1.017

0.980 1.020

0.977 1.023

0.974 1.027

0.971 1.030

0.968 1.033

0.962 1.040

0.956 1.046

0.950 1.052

0.945 1.058

0.930 1.075

0.917 1.090

0.905 1.105

0.891 1.122

0.872 1.147

0.840 1.191

0.777 1.288

0.617 1.621

Q = 10

(+)

(-)

f /f o f /f o

1.000 1.000

0.999 1.001

0.998 1.002

0.997 1.003

0.995 1.005

0.993 1.007

0.992 1.008

0.990 1.010

0.988 1.012

0.987 1.013

0.985 1.015

0.984 1.017

0.981 1.020

0.978 1.023

0.975 1.026

0.972 1.029

0.964 1.037

0.958 1.044

0.951 1.051

0.944 1.060

0.933 1.071

0.916 1.092

0.880 1.136

0.780 1.282

42

1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176

e-mail: sales@freqdev.com Web Address: http://www.freqdev.com
