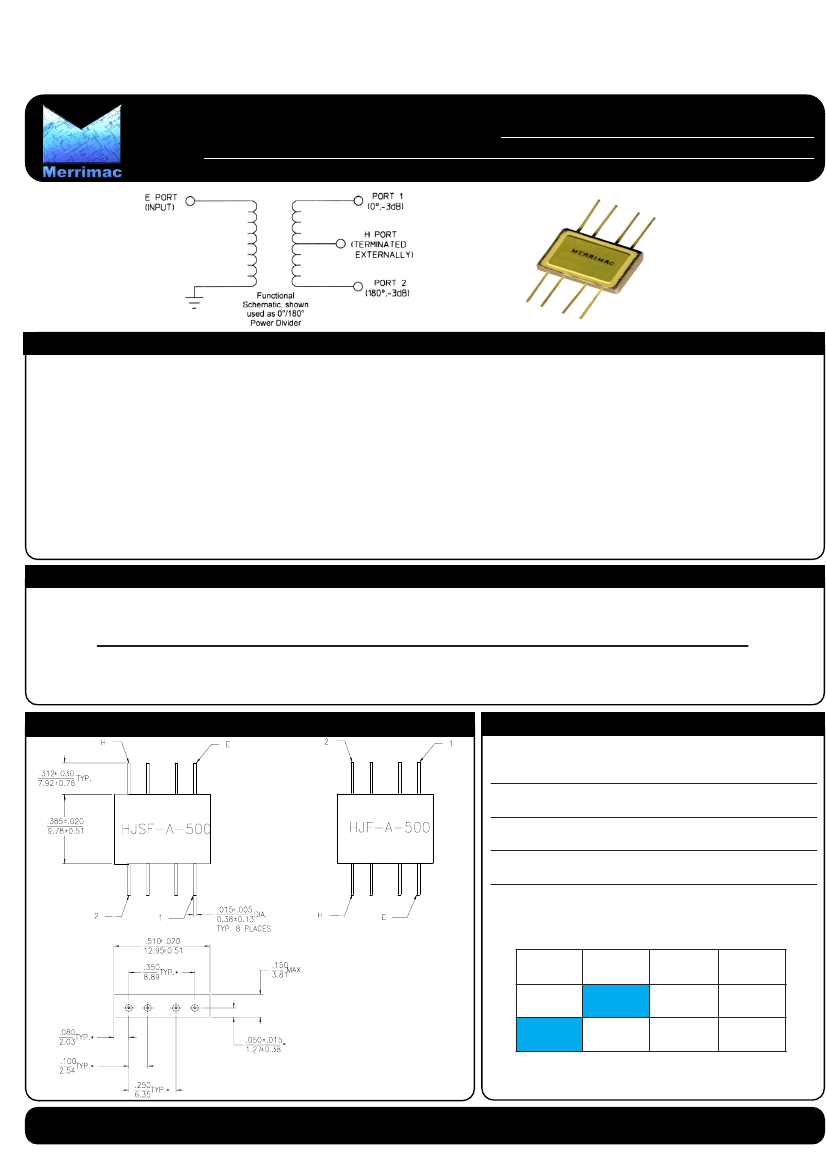

HJF-A-500
HJF-A-500
HJSF-A-500
BROAD BAND HYBRID JUNCTION
5 to 1000 MHz / High Isolation / Low Insertion / Hi-Rel / Hermetic Pkg Symmetrical And Assymetrical
TECHNICAL DESCRIPTION / APPLICATION
1. The HJF-A Series of assymetrical hybrid junctions uses lumped element circuits to provide very compact and light weight solutions to a
variety of signal processing functions. Among these are applications in beamformers, quadrapole networks and hybrid added amplifiers.
a)
Power division with phase shift:
Signals applied to the delta (∆) port, or E-arm, will divide equally between output ports 1 and
2 (colinear arms) and be 180 out of phase.
b)
Power division with no phase shift:
Signals applied to the sum (Σ) port, or H-arm, will divide equally between output ports 1
and 2 (colinear arms) and be in phase.
2. The
HJSF-A Series, is fully symmetrical,
i.e. insertion phase of E-1 equals that of H-1 allowing its use in beamforming applications, or
any application requiring vector addition.
3. All units comply with MIL-P-23971 and can be supplied screened for compliance with additional specifications for military and aerospace
applications requiring the highest reliability.
PRINCIPAL SPECIFICATIONS
F r eq u en c y
Mo d el
N u m b er
R an g e,
MH z
Is o l at i o n ,
E-H Po r t s ,
d B , Mi n
In s er t i o n
Loss, dB
Max .
P h as e
B al an c e,
Max .
Am p l i t u d e
B al an c e, d B ,
Max .
VSWR ,
Max .
Ty p e
HJSF-A-500
HJF-A-500
5-1000
5-1000
25
25
1.7
1.7
±4°
±4°
0.4
0.4
1.4:1
1.4:1
Symmetri cal
Assymetri cal
PACKAGE OUTLINE
GENERAL SPECIFICATIONS
Coupling:
Impedance:
CW Input:
Weight:
Operating Temperature:
-3dB nom.
50
Ω
nom.
1 Watt max.
0.1 oz / 2.8g, max.
-55 to +85 C
E
Isol.
In
H
In
Isol.
1
0° ref.
0°
2
0°
-180°
Merrimac Industries / 41 Fairfield Place, West Caldwell, NJ 07006

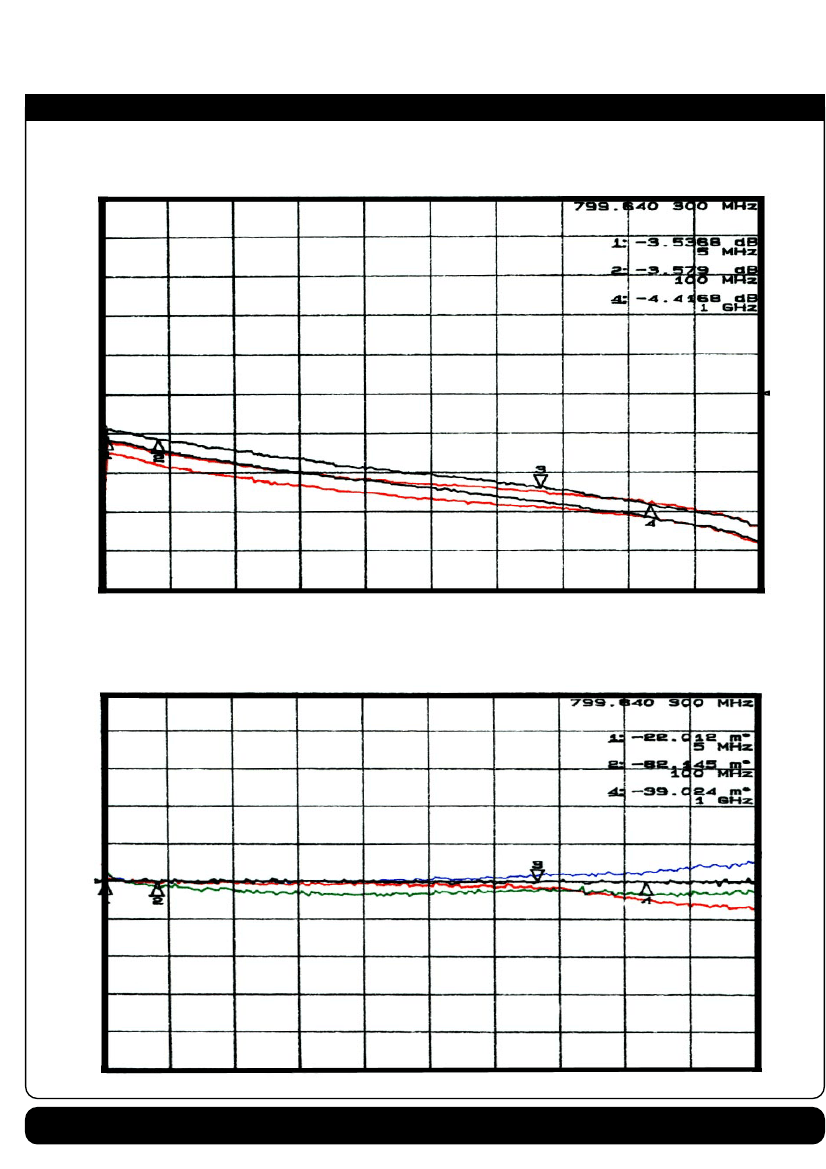

Tel: 973.575.1300 / Fax: 973.575.0531 / http://www.merrimacind.com
