BTB08-400TW/F5 datasheet, PDF - EEWORLD Datasheet

BTB08-400TW/F5: Description400V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size113KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

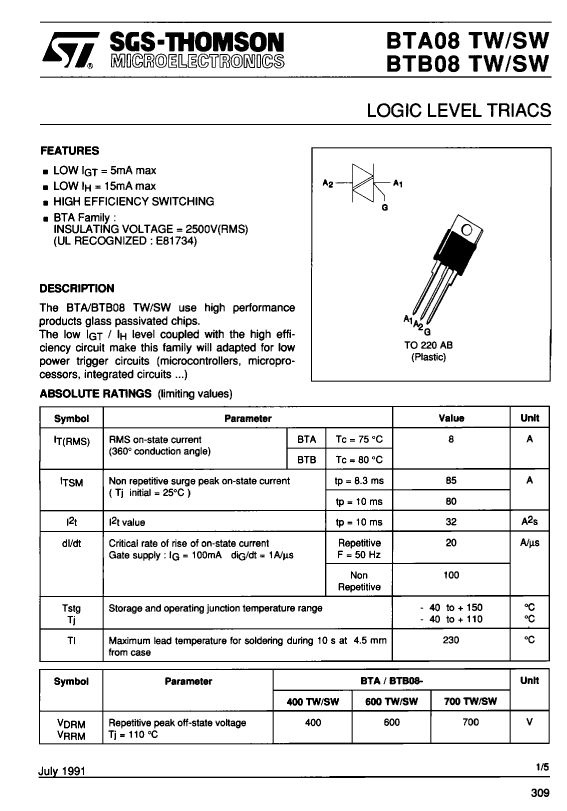

BTB08-400TW/F5 Overview

400V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220, TO-220, 3 PIN

Parameter Name	Attribute value
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
Configuration	SINGLE

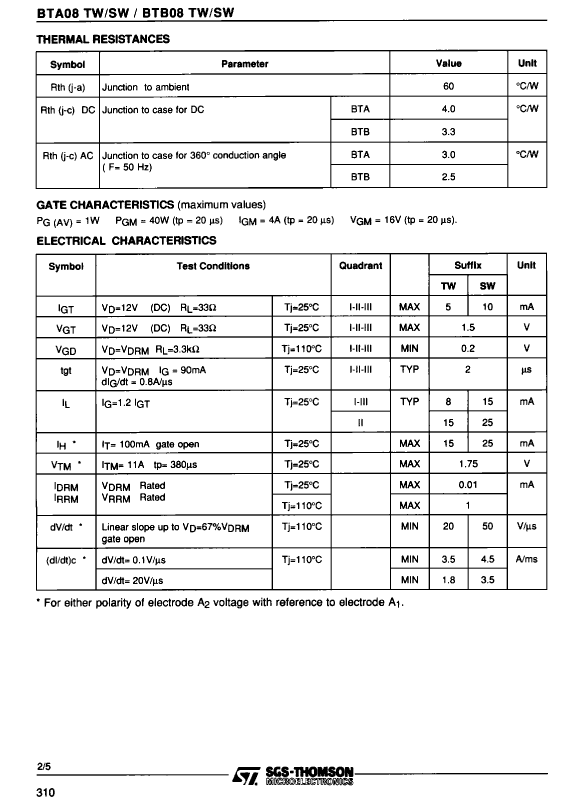

Critical rise rate of minimum off-state voltage	20 V/us
Maximum DC gate trigger current	5 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	15 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified

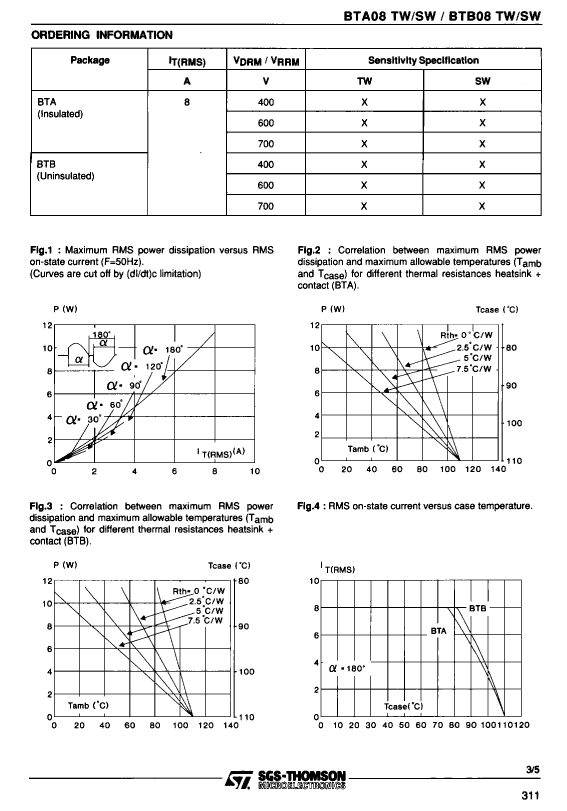

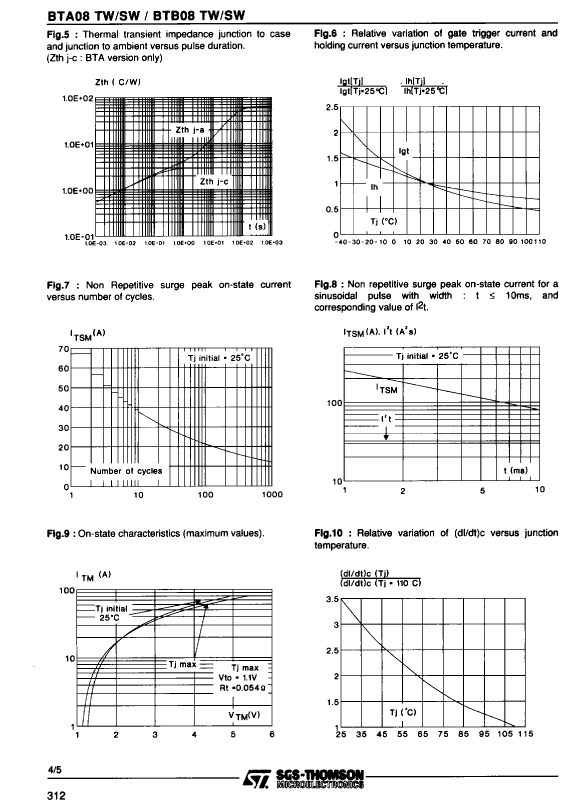

Maximum rms on-state current	8 A
Maximum repetitive peak off-state leakage current	10 µA
Off-state repetitive peak voltage	400 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1
