BST52-TAPE-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BST52-TAPE-13

BST52-TAPE-13: DescriptionTRANSISTOR 500 mA, 80 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size55KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BST52-TAPE-13 Overview

TRANSISTOR 500 mA, 80 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal

BST52-TAPE-13 Parametric

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	80 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	2000
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
VCEsat-Max	1.3 V
Base Number Matches	1

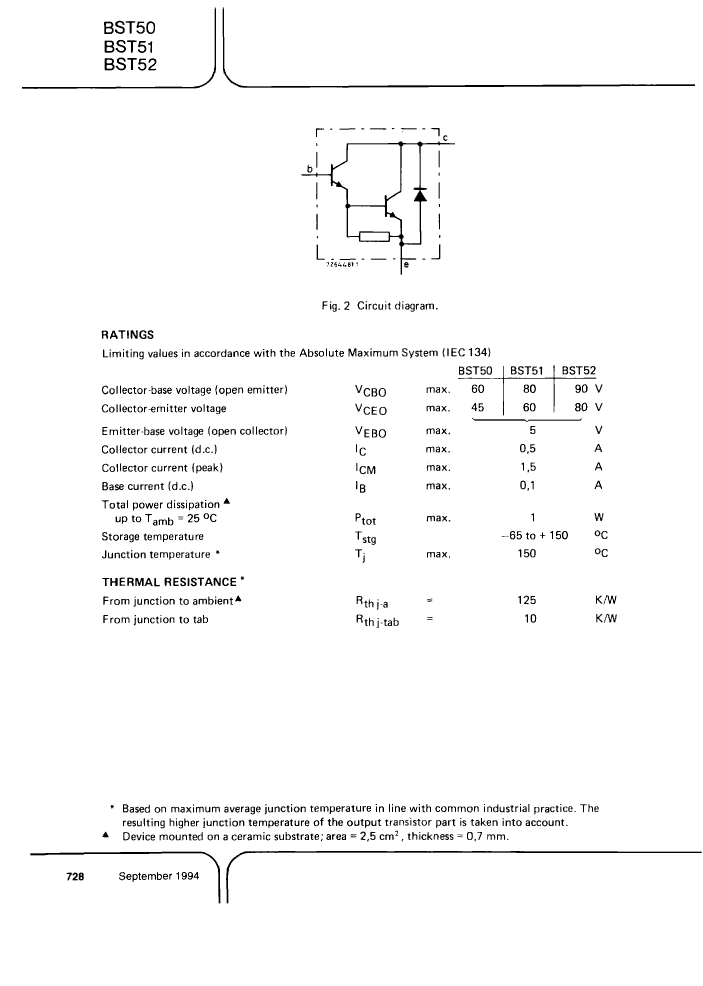

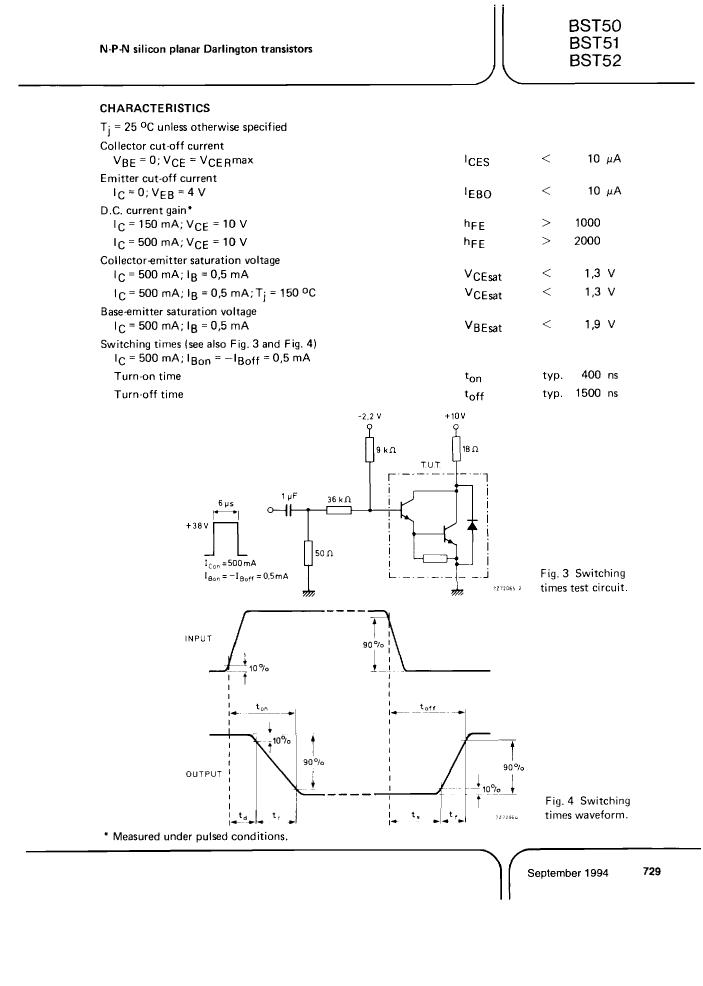

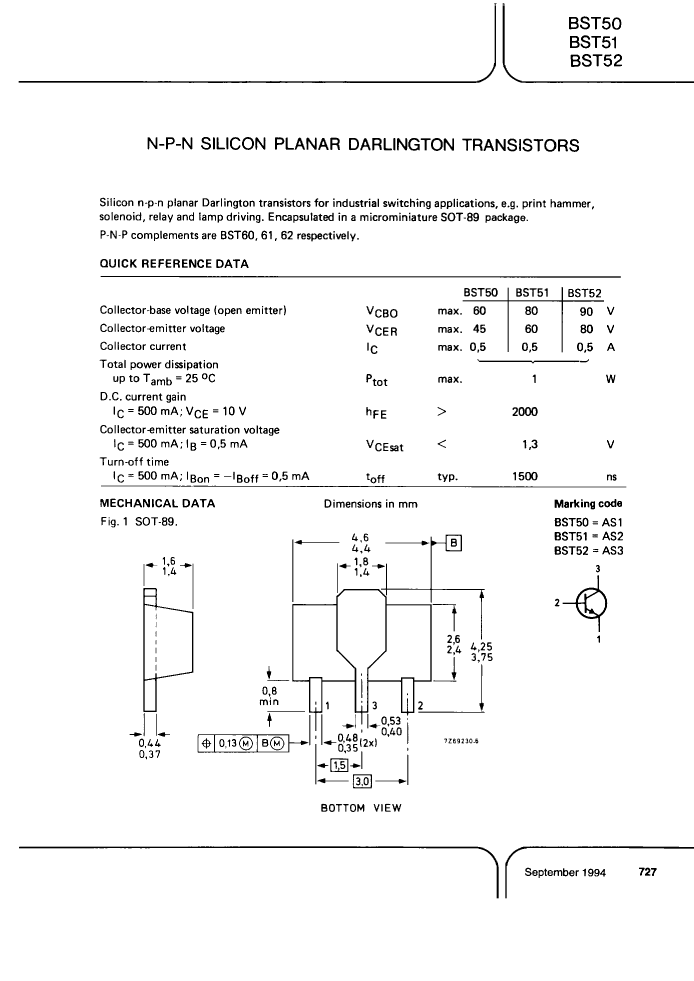

Preview

Download Datasheet

View All

BST52-TAPE-13 Related Products

	BST52-TAPE-13	BST52-TAPE-7	BST51-TAPE-7	BST51-TAPE-13	BST50-TAPE-13	BST50-TAPE-7
Description	TRANSISTOR 500 mA, 80 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 500 mA, 80 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 500 mA, 60 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 500 mA, 60 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	80 V	80 V	60 V	60 V	45 V	45 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	2000	2000	2000	2000	2000	2000
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
VCEsat-Max	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
Maker	-	-	NXP	NXP	NXP	NXP
