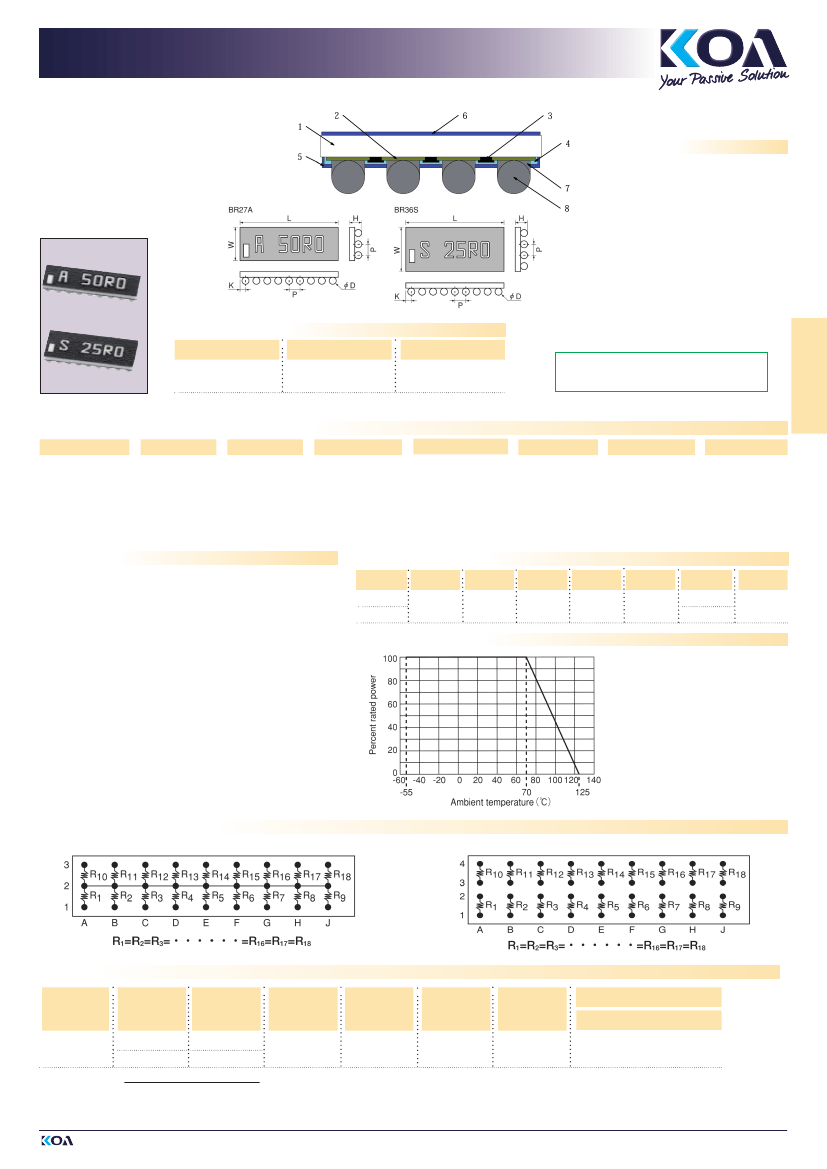

NETWORkS
THICk FILM
R-NETWORk
STRUCTURE
1
2
3
4
5
6
7
8
Ceramic substrate
Thick film inner electrode
RuO
2
resistive film
1
st
protective coating (amorphous glass)
2
nd
protective coating (epoxy resin)
Marking
Pb-free solder (SnAgCu: 96.5;3;0.5)
Tinning ball (Cu core)
Bga RESISTOR PaCKagE
BR
TYPE
BR
BODY COLOR
Black
MaRKIng
White,
Alpha Numeric
all these products have Pb-free terminations
and meet EU-RoHS requirements
TYPE DESIgnaTIOn (HOW TO ORDER)
Contact our sales representatives before you use our products for applications including
automotives, medical equipment and aerospace equipment. Malfunction or failure of the
products in such applications may cause loss of human life or serious damage .
BR
PRODUCT CODE
27
NUMBER OF
TERMINALS
27 terminals
36 terminals
a
CIRCUIT
SYMBOL
P
TERMINAL
PITCH
P: 1mm
T
TERMINATION
SURFACE MATERIAL
T: Sn
TEB
TAPING*
TEB, BK
TEB: 4000 pcs/reel
*Please see “PACKAGING”
1000
NOMINAL
RESISTANCE
F: 4 digits
F
RESISTANCE
TOLERANCE
F: (±1%)
A: Parallel network
S: Seperate resistors
Contact us when you have control request for environmental hazardous material other than the substance specified by EU-RoHS
FEaTURES
■
This BGA packaging resistor network device virtually eliminates
channel capacitance, a primary cause of reduced system
performance
■
This device eases routing design of DDR SDRAM termination
■
Higher integration of resistor elements saves overall
assembly costs
■
BGA packaging is effective in saving of board space
and high density mounting
■
High precision ±1% resistance tolerance is standard
■
Ideal for use as DDR SDRAM Terminator and in
high speed digital circuits, etc .
■
Meets or exceeds IEC 60115-1, JIS C 5201-1, MIL-STD-202F
■
Rated ambient temperature: -70°C
■
Operating temperature range: -55°C…+125°C
■
Customer specific circuit constructions on request
DIMEnSIOnS (mm)
TYPE
BR 27 a
BR 36 S
P ±0.25
1.00
øD ±0.05
0.67
K ±0.25
0.50
H ±0.15
1.15
L ±0.15
9.00
W ±0.15
3.00
4.00
COPLanaRITY
0.15 Max.
DERaTIng CURVE
(%)
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order/or use.
CIRCUIT COnSTRUCTIOn
BR 27 a
BR 36 S
RaTIng
TYPE
BR
nUMBER
OF
TERMInaLS
27
36
CIRCUIT
SYMBOL
A
S
T.C.R.
(ppm/K)
± 200
POWER*
RaTIng
(per element)
0.05 W
MaX.
WORKIng
VOLTagE
25 V
MaX.
OVERLOaD
VOLTagE
50 V
RESISTanCE RangE (E24)
F (±1%)
10 Ω …1 kΩ**
z
Rated voltage = Power rating x resistance value or max. working voltage, whichever is lower.
* For resistors operated in ambient temperature over +70°C, power rating shall be derated like shown in above ''DERATING CURVE''
.
**
Values from E-96 series and custom values on request.
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
45
Revision: 14. Dec. 2009
