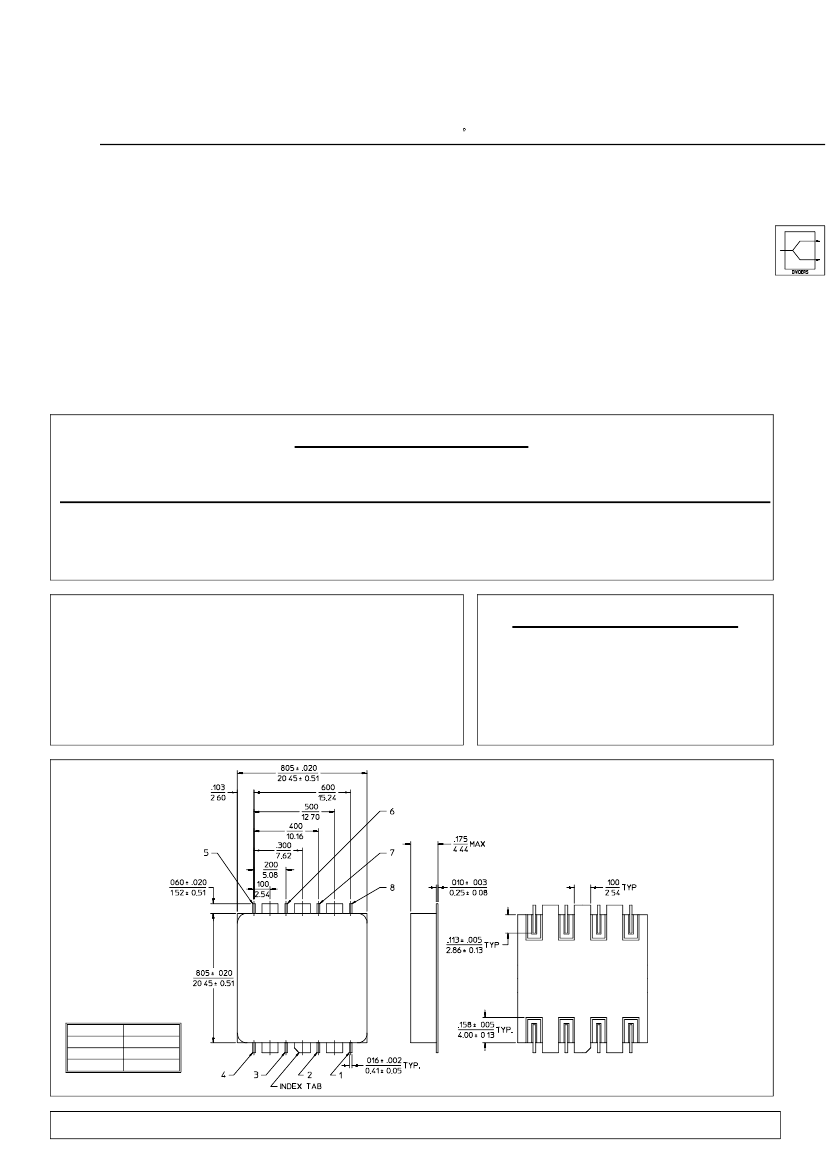

PDG-4E Series

0 POWER DIVIDERS / COMBINERS

10 to 2000 MHz / 4-Way / Uniform Phase & Ampli. Bal. / Broadband / Hi-Rel Hermetic Pkg / SMD

PRINCIPAL SPECIFICATIONS

Standard

Model

Number

Model for

Vapor Phase

& IR Insertion

Freq.

Isolation, Insertion

Range,

dB,

Loss, dB,

MHz

Min.

Typ. Max. Typ.

10 - 500 25

20 - 2000 18

50 - 1000 20

1.25 0.8

3.0 2.5

2.0 1.5

Amplitude Phase

VSWR

Input

Bal., dB, Balance,

In/Out

Power

Max. Typ. Max. Typ. Max. Typ. Max.*

0.2

0.6

0.4

0.1

0.4

0.2

4°

8°

6°

2°

4°

1.3:1 1.2:1 1 W

1.8:1 1.5:1 1 W

1.6:1 1.5:1 1W

PDG-4E-250 PDG-4E-255

PDG-4E-1300 PDG-4E-1305

*CW input power when used as divider with 1.2:1 VSWR

out

GENERAL SPECIFICATIONS

General Notes:

1. The PDG-4E series of 4-way In-Phase Power Dividers/ Combiners

covers 10 to 2000 MHz using a binary lumped element design to

maximize frequency response. Such designs are suitable where high

performance and a low profile surface mount package is essential.

Coupling:

-- 6 dB nom.

Impedance:

Ω

nom.

Internal Load Dissipation: 50 mW max.

Weight, nominal:

0.32 oz. (9 g)

Operating Temperature: -- 55° to +85°C

Package Outline

NOTES:

1. Tolerance on 3 place decimals

.010(.25) except as noted.

2. Dimensions in inches over millimeters.

3. Dimensions marked with * apply only at body.

4. All unmarked tabs are case ground.

Pin Number

Function

Input

5,6,7,8

Outputs

All Others

Case Ground

11Apr96

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531
