PDM & PDML-33-12G
0 POWER DIVIDER / COMBINER
6 to 18 GHz / 3-Way / Excellent Phase & Ampli. Bal. / Low Insertion Loss / High Isolation / SMA
PRINCIPAL SPECIFICATIONS
Model
Number
Freq. Insertion
Range, Loss, dB,
GHz.
Max.
0.7
0.7
Phase Amplitude Isolation, Profile Weight,
CW Input, Max.,
Balance, Balance,
dB, Thickness, oz. (g)
With VSWR
out
Max.
dB, Max.
Min.
In., Max. Nom. 1.2:1 2.0:1
∞
8°
8°
0.4
0.4
20
20
0.420
0.250
2.5(70) 30W
1.5(43) 30W
10W
10W
1W
1W
PDM-33-12G 6.0 - 18.0
PDML-33-12G 6.0 - 18.0
General Notes:
1. The PDM-33-12 G provides three-way in-phase division of micro-
wave signals in the 6 to 18 GHz range. It is one of a series of
true
multi-way Power Dividers developed to meet the demands of broad-
band systems requiring very low insertion loss and high output isola-
tion. It is available in a special low profile version.
GENERAL SPECIFICATIONS
Input/Output VSWR:
1.4:1 max.
Impedance:
50
Ω
nom.
Special Welded Version: EMI Screening
(Model PDML-33-12GW) >100 dBc
Operating Temperature: -- 55° to + 85°C

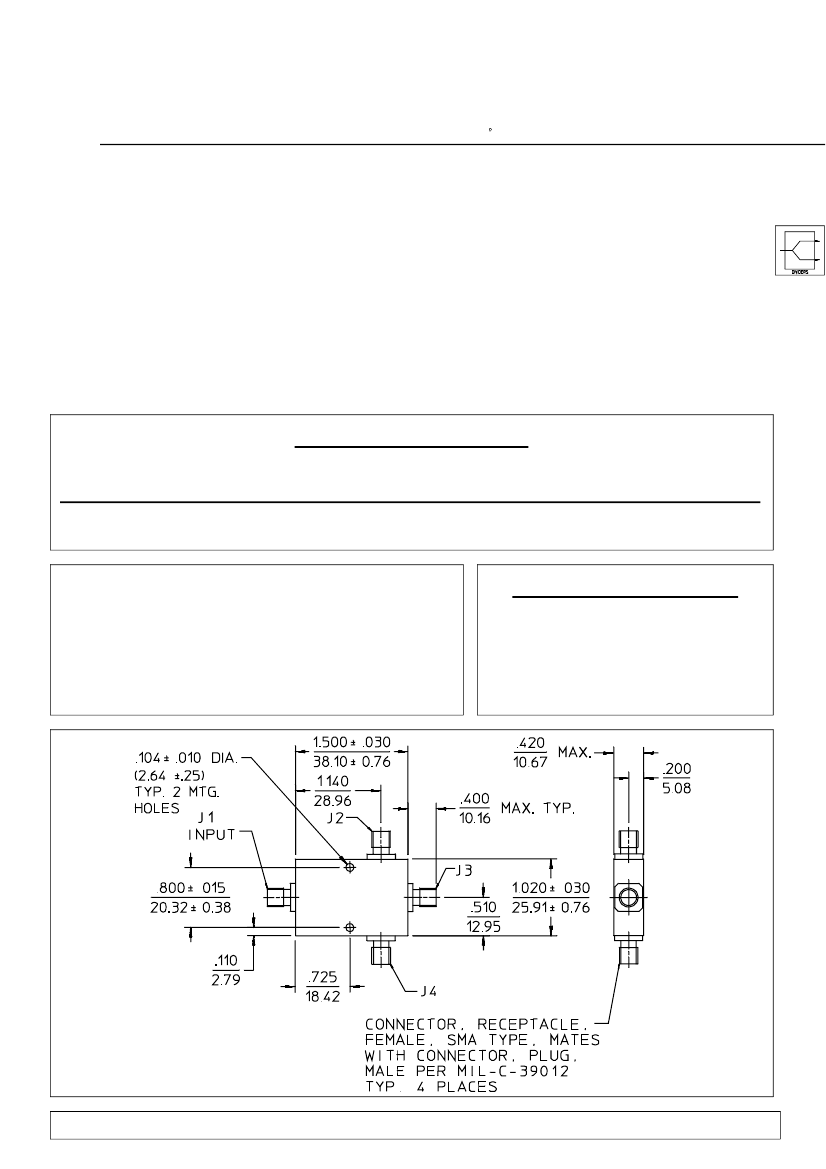

Package Outline
NOTES:
1. Tolerance on 3 place decimals
±
.020(.51) except as noted.
2. Dimensions in inches over mm.
19Feb96
For further information contact
MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531
