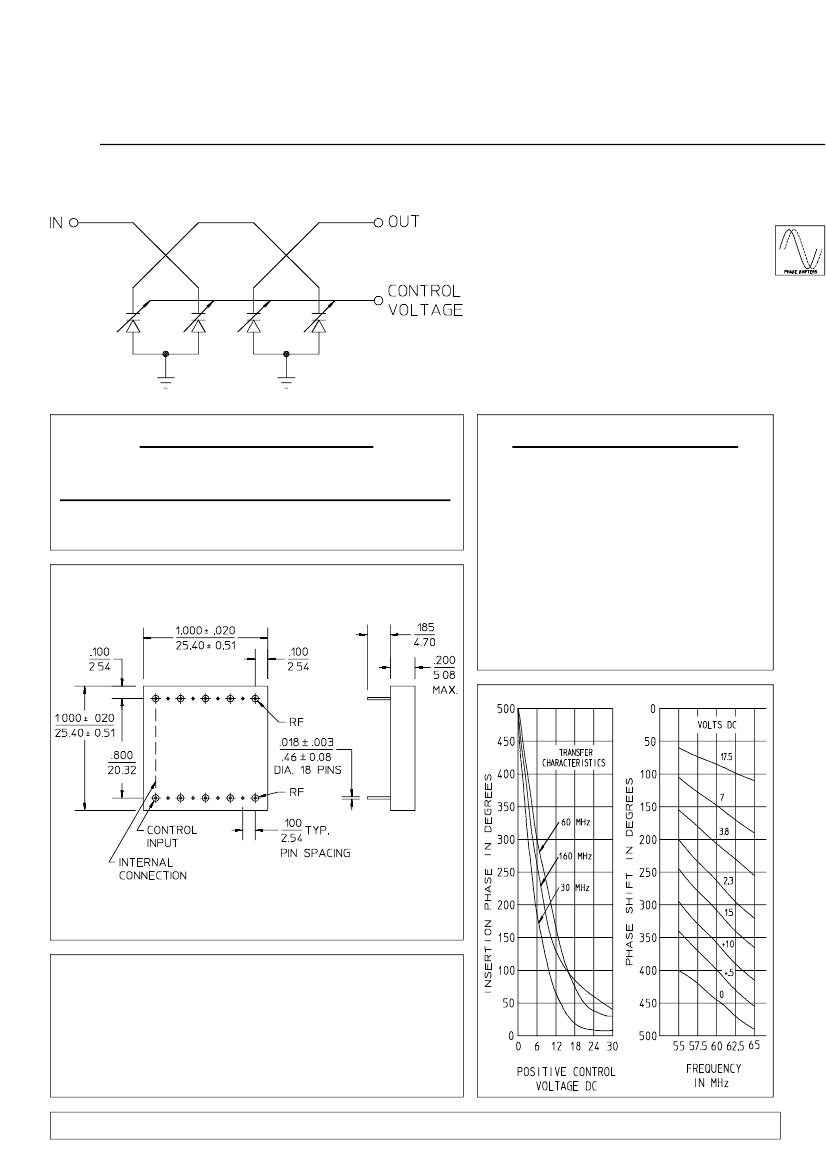

PEP-4S Series
PHASE SHIFTERS
Units to 400 MHz / Continuous 0° to 360° Adjustment / Voltage Controlled / Hermetic, PC Package
PRINCIPAL SPECIFICATIONS
Model
Number
PEP-4S-***B
Center
Frequency,
f
o,
MHz
10 to 400
Usable
Bandwidth
f
o
±
5%
GENERAL SPECIFICATIONS
Insertion Loss:
Impedance:
VSWR:
Phase Shift Range:
Phase Stability:
Control Voltage:
Input Power:
Weight, nominal:
Operating Temp:
3 dB max.
50
Ω
nom.
1.6:1 max.
-- 360° min. @ f
o
0.2°/°C
0.5 to +15V typ.
0.5 to +30V max.
0 dBm max.*
3.5 oz (10 g)
-- 55° to + 85°C
For complete Model Number replace *** with desired Center Frequency, fo in MHz.
Meri-Pac™ S-Package
™
* Unit may be operated at +10 dB min reduced control
range of 1.5 - 15 V. (+30 V no damage)
Typical Performance Data
NOTES:
1. Tolerance on 3 place decimals
±
.010(.25)
except as noted.
2. Dimensions in inches over millimeters.
3. Lead dimensions apply only at body.
4. All unmarked pins are case ground.
General Notes:
1. The PEP-4S series of voltage variable Phase Shifters is offered in three
popular IF center frequency ranges (30, 60 and 70 MHz) with other
frequencies optional.
2. Each provides 0° to 360° phase shift and 10% bandwidth within the 10 to
400 MHz frequency range. The voltage controlled design has utility in systems
requiring automatic phase control, closed loop feedback networks and
steering of electronically scanned antennas.
3. Merrimac phase shifters are designed for high reliability and can be
supplied screened to meet specific military and space requirements.
29Apr96
