SAP-8591260A200G datasheet, PDF

Datasheet> All Categories > The connector> The connector> SAP-8591260A200G

SAP-8591260A200G: DescriptionFiber Optic FC Connector, 126um, Single Mode, Simplex, Plug; CategoryThe connector The connector; File Size33KB，1 Pages; ManufacturerABLIC; Environmental Compliance

Download Datasheet Parametric View All

SAP-8591260A200G Overview

Fiber Optic FC Connector, 126um, Single Mode, Simplex, Plug

SAP-8591260A200G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	PLUG
Connection Type	SIMPLEX
Connector type	FIBER OPTIC FC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Fiber size	126um
IEC compliance	NO
MIL compliance	NO
model	SINGLE
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

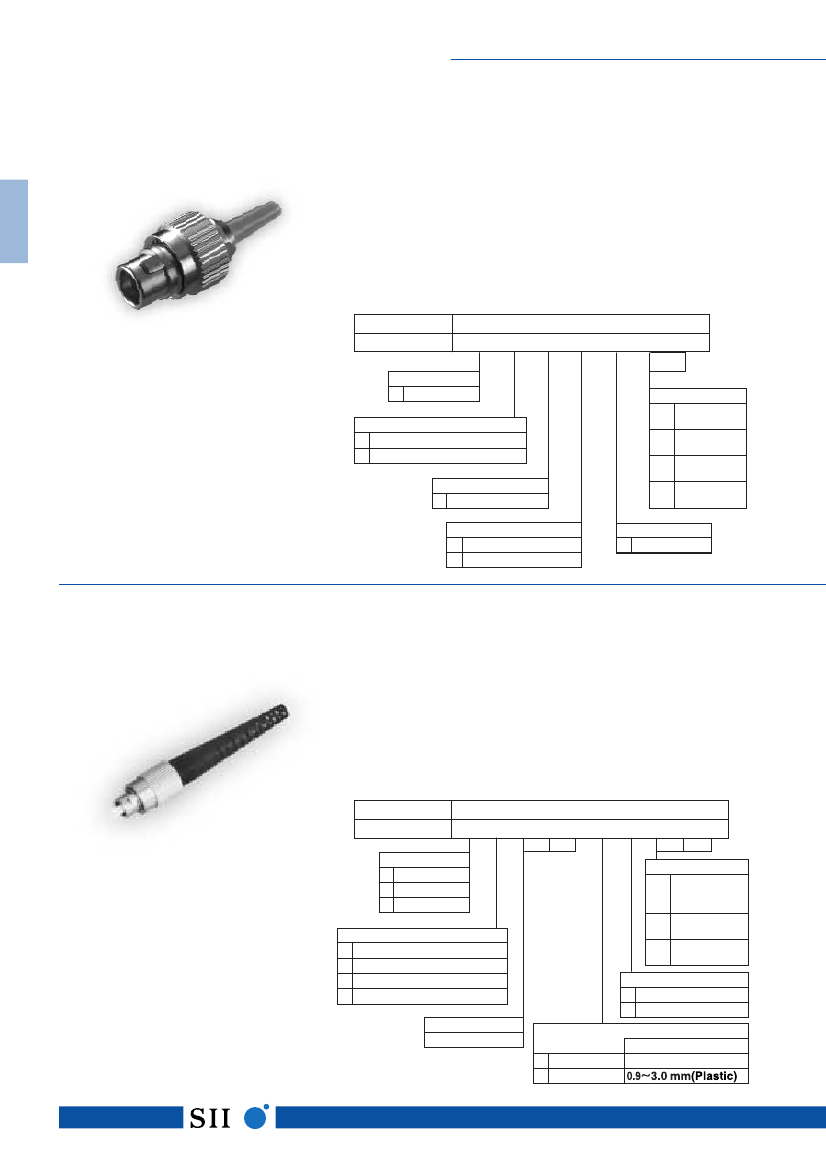

FC Type Fiber Optic Connectors

Housing designed for Angle PC application

Total length of 24 mm optimum for use inside system equipment

and devices

Two types of frames available consisting of cutout type and inex-

pensive molded type

Keying width: 2.14 + 0/-0.05 mm (N type); 2.02+0/+0.05 (R type)

Designed for ø 0.9 mm Buffer Cable

Satisfies Vertical Burning Test for Classifying Materials UL94V-0

(excluding cap)

Combined with SNZ-1A / 3A series (ferrule) provides high performance

Recommended adaptor: SNA series

ORDERING INFORMATION

Model Number

SNP-5

Type Number

FC Type

Housing

SNP-5 Series

Angle PC Application

Designed for

ø 0.9 mm Buffer Cable

Single Mode

Hood Color

8 Green

Specifications

N type

R type

Cutout frame

Molded frame

Hood I.D. (mm)

1 0.9 mm

8 0.9 mm (flame-resistant rubber)

Marking of Hood

0 Without

Marking

Cap

White (Plastic)

Green

Ferrule Cap

Cutout frame

Molded frame

R type

Package

Pre-assy

One-piece design for easy assembly

Pre-dome zirconia ferrule enables easy polishing

Complies with Telcordia specification GR-326-CORE

(excluding ø 0.9 mm rubber hood type)

Satisfy Vertical Burning Test for Classifying Materials UL94V-0

(excluding cap)

Two types of frames available consisting of cutout type allowing

adjustment of key ring position and inexpensive molded type

Recommended adaptor: SAA series

ORDERING INFORMATION

Model Number

SAP-8

Hood Color

1 Black

3 White

5 Blue

Hood I.D. (mm)

0.9 mm (flame-resistant rubber)

3.0 mm

(Plastic)

2.0 mm(Plastic)

0.9 mm

(Plastic)

Ferrule I.D. (µm)

ø 125, ø 126

Type Number

Plug

Package/Specifications

200

Cutout frame,

individual

package

Cutout frame,

Molded frame,

SAP-8 Series

Easy Assembly

Designed for

ø 0.9 mm Buffer Cable

ø 2.0 mm Cable

ø 3.0 mm Cable

Single Mode

300

bulk package

3D0

bulk package

Cap

1 Black PVC

A Black Ferrule

Cap

Marking of Hood

Applicable Hood(mm)

Without Marking

0.9 mm (flame-resistant rubber)

1 SII

Marking
