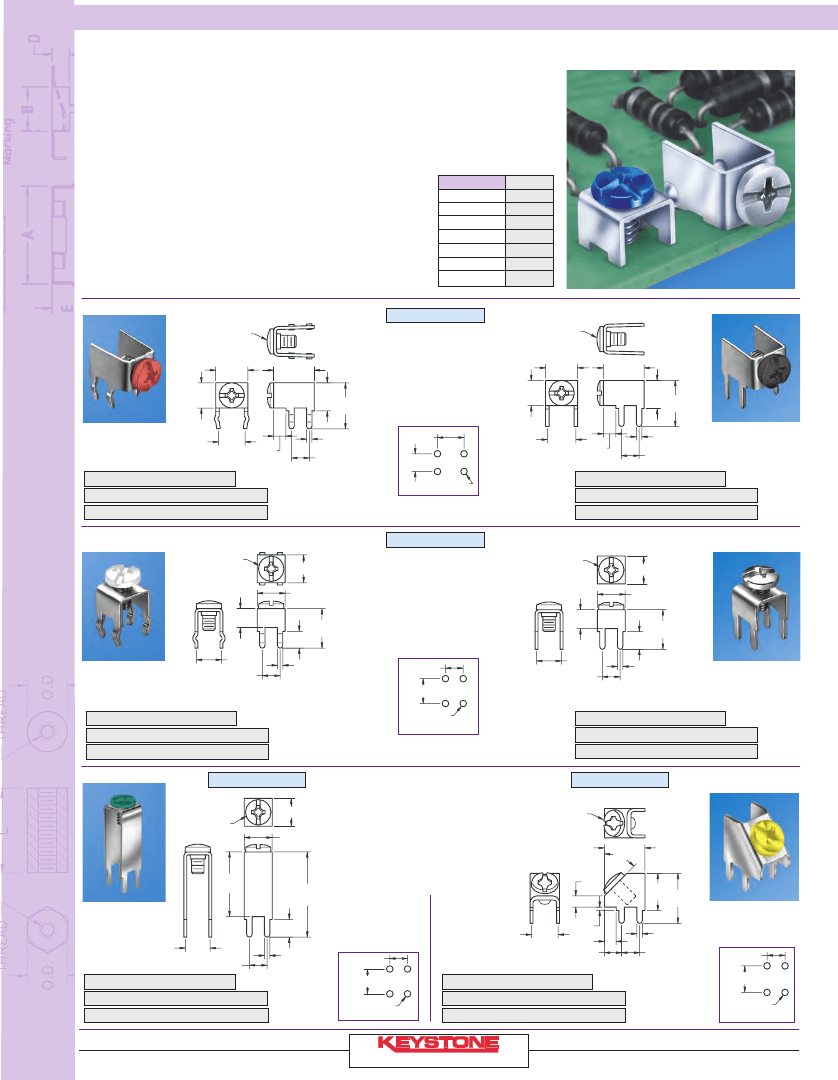

PC SCREW TERMINALS
These easy-to-mount, multipurpose screw type terminals are a practical,
low-cost alternative to PC screw type edge connectors, barrier blocks, terminal
boards and terminal strips. Steadfast and easy to install, will accommodate
solid or stranded wire, crimp type terminals or lugs. Multi-placement of these
low-profile terminals make them ideally suited for high density packaging.
Supplied unassembled or with screw installed and captivated.
PRINCIPAL FEATURES
•
Low profile
•
Stable, no-rock design with exclusive anti-rotational feature
•
Easily mounts with four legs into pre-drilled or punched holes
•
Accepts 14-22 AWG solid or stranded wire, crimp type terminals or lugs
•
Ideally suited for high-density packaging
•
Available in horizontal or vertical mounting
•
Space-saving and time saving
•
Easy accessibility for PC board testing
•
Binding screw is positioned above board level to avoid wicking during
wave soldering
•
Terminals are made of Brass with Tin Plate
•
Supplied with a combination drive 6-32 binding head screw
•
Color coded screws available (add color screw suffix to Cat. No.)
COLOR SELECTION:
Select desired screw terminal
and add color suffix to the
screw terminal Cat. No.
HEAD COLOR
RED
BLACK
WHITE
BLUE
GREEN
YELLOW
NICKEL
SUFFIX
-2
-3
-4
-5
-6
-7
none
CAT. NO. COLOR SUFFIX
Ex:
XXXX
-X
7700
7693-5
HORIZONTAL TYPE
6-32 x .250 [6.3] L.
SCREW
SPECIFICATIONS
.452 [11.5]
6-32 x .250 [6.3] L.
SCREW
.327
[8.3]
.280
[7.1]
SCREW TERMINALS
.327
[8.3]
.280
[7.1]
7692-2
.312
[7.9] .512
[13.0]
Rated:
15 Amps
Terminal:
.032 (.81) thick Brass, Tin Plate
Binding Head Screw:
Brass, Nickel Plate
Mounting Detail
.452 [11.5]
.312
[7.9] .512
[13.0]
7700-3
SNAP-IN
PC MOUNT
.295
[7.5]
.138
[3.5]
.060 [1.52]
(4) PLS
.197 [5.0]
.295 [7.5]
.295
[7.5]
.138
[3.5]
.060 [1.52]
(4) PLS
.197 [5.0]
PC MOUNT
.197 [5.0]
.073 [1.85] DIA.
(4) PLS
CAT. NO. 7779
(Supplied Less Screw)
CAT. NO. 7690
(Screw Supplied Unassembled)
CAT. NO. 7692
(Screw Installed & Captivated)
Color coded screws available
(add color screw suffix to Cat. No.)
CAT. NO. 7781
(Supplied Less Screw)
CAT. NO. 8190
(Screw Supplied Unassembled)
CAT. NO. 7700
(Screw Installed & Captivated)
VERTICAL TYPE
6-32 x .250 [6.3] L.
SCREW
.310 [7.9]
SPECIFICATIONS
Rated:
15 Amps
Terminal:
.032 (.81) thick Brass, Tin Plate
Binding Head Screw:
Brass, Nickel Plate
Mounting Detail
6-32 x .250 [6.3] L.
SCREW
.310 [7.9]
.310 [7.9]
.310 [7.9]
.210 [5.4]
.440
[11.2]
.187 [4.8]
.210 [5.4]
.440
[11.2]
.197 [5.0]
7693-4
.276 [7.0]
7701
.276 [7.0]
.197 [5.0]
.060 [1.52]
(4) PLS
SNAP-IN
PC MOUNT
.197 [5.0]
.060 [1.52]
(4) PLS
.197 [5.0]
.276 [7.0]
PC MOUNT
CAT. NO. 7780
(Supplied Less Screw)
CAT. NO. 7691
(Screw Supplied Unassembled)
CAT. NO. 7693
(Screw Installed & Captivated)
.073 [1.85] DIA.
(4) PLS
Color coded screws available
(add color screw suffix to Cat. No.)
CAT. NO. 7782
(Supplied Less Screw)
CAT. NO. 8191
(Screw Supplied Unassembled)
CAT. NO. 7701
(Screw Installed & Captivated)
EXTENDED
.310 [7.9]
6-32 x .250 [6.3] L.
SCREW
SPECIFICATIONS
Rated:
15 Amps
Terminal:
.032 (.81) thick Brass, Tin Plate
Binding Head Screw:
Brass, Nickel Plate
Color coded screws available
(add color screw suffix to Cat. No.)
.947
[24.1]
6-32 x .250 [6.3] L.
SCREW
45°
.310 [7.9]
.450 [11.5]
45°
REF.
.125
[3.2]
REF.
.718
[18.3]
7699-6
.412
[10.5] .555
[14.1]
7702-7
PC MOUNT
.197 [5.0]
.276
[7.0]
.197 [5.0]
.037 [1.0]
PC MOUNT
Mounting Detail
.060 [1.52]
(4) PLS
.197 [5.0]
.276 [7.0]
.295
[7.5]
.130 [3.3]
.190 [4.9]
.060 [1.52]
(4) PLS
.200 [5.1]
Mounting Detail
.200 [5.1]
CAT. NO. 7789
(Supplied Less Screw)
CAT. NO. 7697
(Screw Supplied Unassembled)
CAT. NO. 7699
(Screw Installed & Captivated)
CAT. NO. 7783
(Supplied Less Screw)
CAT. NO. 8189
(Screw Supplied Unassembled)
CAT. NO. 7702
(Screw Installed & Captivated)
®
.295 [7.5]
.073 [1.85] DIA.
(4) PLS
.073 [1.85] DIA.
(4) PLS
54
Tel (718) 956-8900
•
Fax (718) 956-9040
(800) 221-5510
•
kec@keyelco.com
RoHS COMPLIANT
~
ISO 9001 CERTIFIED
www.keyelco.com
31-07 20th Road – Astoria, NY 11105-2017

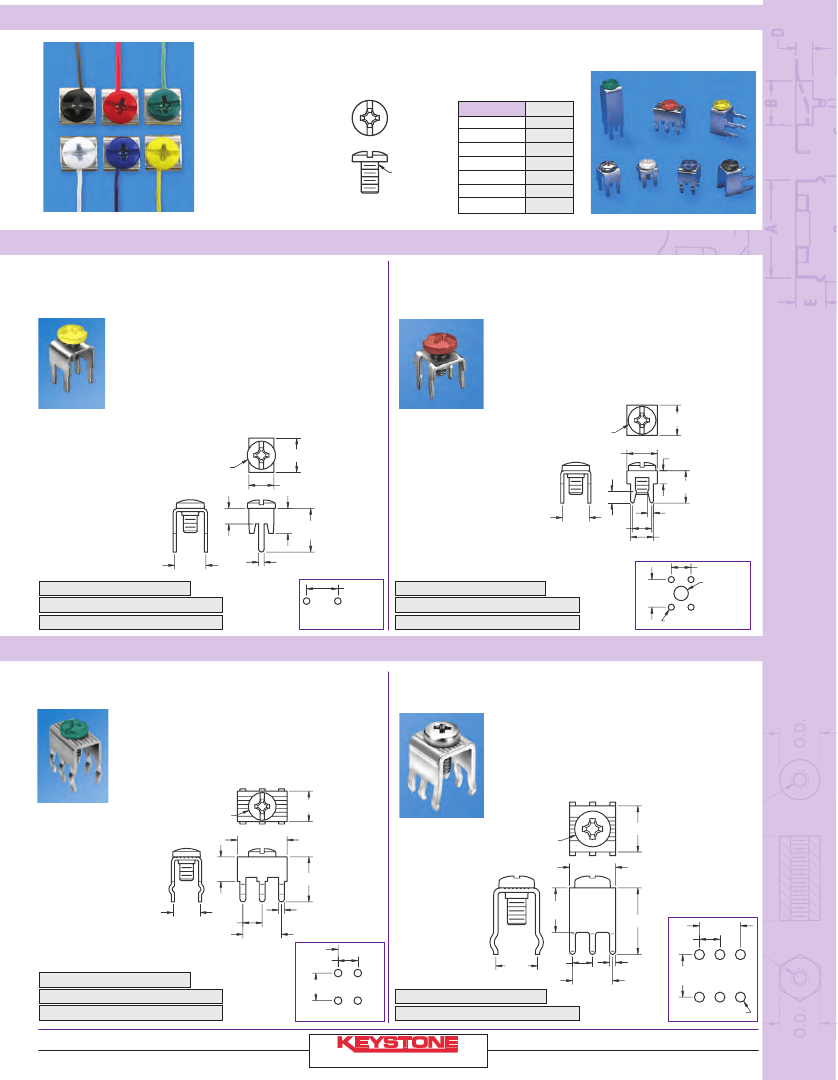

COLOR CODED SCREW TERMINAL SELECTION GUIDE
Color Coded Screw Terminals
provide:
•
Quick identification
•
Visibility for field service
troubleshooting
SPECIFICATIONS
Combination Binding Head:
Standard screw is Brass,
Nickel Plate. For painted,
color head, add suffix as
shown.
•
Available for screw terminals where noted.
COLOR SELECTION:
Select desired screw terminal
and add color suffix to the
screw terminal Cat. No.
HEAD COLOR
RED
BLACK
WHITE
BLUE
GREEN
YELLOW
NICKEL
SUFFIX
-2
-3
-4
-5
-6
-7
none
CAT. NO. COLOR SUFFIX
Ex:
XXXX
-X
7699-6
8199-2
7692-7
6-32 x
.250 [6.3] L.
THREAD
7775-4
7701
7693-5
7700-3
Refer to page 123 for color screws only
LOW PROFILE - PC SCREW TERMINALS
These easy to mount screw terminals are ideally suited for high density packaging
and are available unassembled or with the screw installed and captivated. They are
a practical alternative to PC screw type edge connectors, barrier blocks, terminal
boards and terminal strips.
PRINCIPAL FEATURES
•
Low profile
•
Stable, no-rock design
•
Easily mounts in pre-drilled or stamped holes
•
Accepts 12-22 AWG solid or stranded wire, crimp type
terminals or lugs
•
Space saving and time saving
•
Combination drive, binding head screw
•
Color coded screws available (add color screw suffix
to Cat. No.)
.343 [8.7]
6-32 x .250 [6.3] L.
SCREW
.250 [6.4]
A practical, low-cost alternative to PC screw type edge connectors, barrier blocks,
terminal boards and terminal strips. Supplied unassembled or with screw installed
and captivated.
PRINCIPAL FEATURES
•
Low profile
•
Stable, no-rock design with exclusive anti-rotational feature
•
Ideally suited for high-density packaging
•
Space saving and time saving
•
Combination drive, binding head screw
•
Color coded screws available (add color screw suffix
to Cat. No.)
.310 [7.9]
6-32 x .250 [6.3] L.
SCREW
.310 [7.9]
.134 [3.4]
SCREW TERMINALS
7778-7
7775-2
SPECIFICATIONS
Rated:
15 Amps
Terminal:
.032 (.81) thick Brass,
Tin Plate
Binding Head Screw:
Brass, Nickel Plate
SPECIFICATIONS
Rated:
15 Amps
Terminal:
.032 (.81) thick Brass,
Tin Plate
Binding Head Screw:
Brass, Nickel Plate
.118 [3.0]
.276
[7.0]
.197 [5.0]
.331 [8.4]
.059 [1.50]
(4) PLS
.232 [5.9]
.156 [4.0]
.250
[6.4]
.437
[11.1]
.312
[7.9]
.055 [1.40]
(2) PLS
Mounting Detail
.197 [5.0]
.144 [3.7]
DIA.
Mounting Detail
.312 [7.9]
CAT. NO. 7784
(Supplied Less Screw)
CAT. NO. 8198
(Screw Supplied Unassembled)
CAT. NO. 7778
(Screw Installed & Captivated)
.067 [1.70]
DIA. (2) PLS
CAT. NO. 7785
(Supplied Less Screw)
CAT. NO. 8195
(Screw Supplied Unassembled)
CAT. NO. 7775
(Screw Installed & Captivated)
.276
[7.0]
.062 [1.57] DIA. (4) PLS
30 AMP - PC SCREW TERMINALS
A practical, low-cost alternative to PC screw type edge connectors, barrier blocks,
terminal boards and terminal strips. Supplied unassembled or with screw installed
and captivated.
PRINCIPAL FEATURES
•
Compact, heavy duty design
•
Six snap-in legs for total stability
•
Serrated top surface secures connection
•
Combination drive, binding head screw
•
Color coded screws available (add color screw suffix
to Cat. No.)
8199-6
.310 [7.9]
6-32 x .250 [6.3] L.
SCREW
.507 [12.9]
.250
[6.4]
10-32 x .375 [9.5] L.
SCREW
.470 [12.0]
.460 [11.7]
.470 [12.0]
HEAVY DUTY
This heavy duty screw terminal has been designed to carry 30 Amps, while maintaining
a space saving compact profile, making it ideal for high density packaging.
PRINCIPAL FEATURES
•
Compact, heavy duty design
•
Six snap-in legs for total stability
•
Serrated top surface secures connection
SPECIFICATIONS
Rated:
30 Amps
Terminal:
.032 (.81) thick Brass,
Tin Plate
Binding Head Screw:
Brass, Nickel Plate
.276
[7.0]
.060 [1.52]
(6) PLS
.197 [5.0]
.394 [10.0]
SPECIFICATIONS
Rated:
30 Amps
Terminal:
.045 (1.14) thick Brass,
Tin Plate
Screw:
Stainless Steel
.453
[11.5]
Mounting Detail
.679 [17.3]
.410 [10.4]
.205
[5.2]
Mounting Detail
.394 [10.0]
.197 [5.0]
.425
[10.8]
.205
[5.2]
.410 [10.4]
.060 [1.52]
(6) PLS
CAT. NO. 7786
(Supplied Less Screw)
CAT. NO. 8197
(Screw Supplied Unassembled)
CAT. NO. 8199
(Screw Installed & Captivated)
.425
[10.8]
.276 [7.0]
.076 [1.93] DIA. (6) PLS
CAT. NO. 7787
(Supplied Less Screw)
CAT. NO. 8196
(Screw Supplied Unassembled)
®
.101 [2.6] DIA. (6) PLS
Tel (718) 956-8900
•
Fax (718) 956-9040
(800) 221-5510
•
kec@keyelco.com
RoHS COMPLIANT
~
ISO 9001 CERTIFIED
www.keyelco.com
31-07 20th Road – Astoria, NY 11105-2017
55

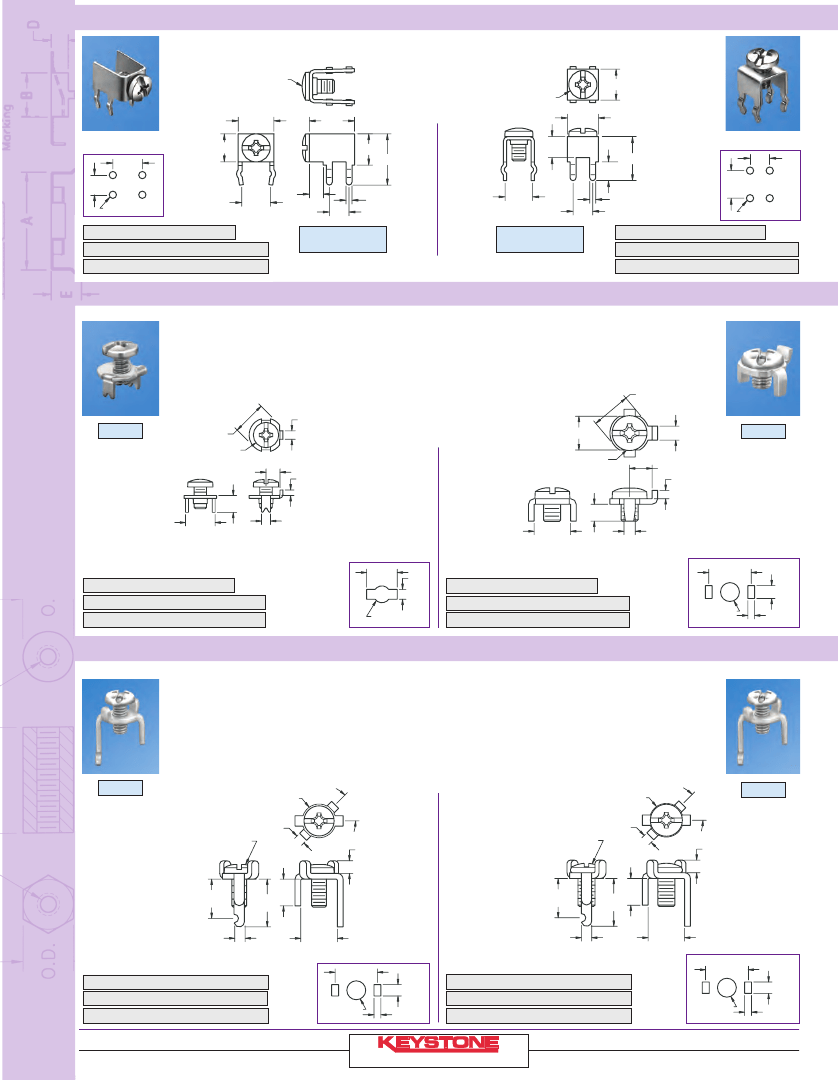

METRIC - “SNAP-IN” PC SCREW TERMINALS
SPECIFICATIONS
M3 x 6.35 L.
SCREW
Rated:
15 Amps
Terminal:
0.81 thick Brass, Tin Plate
Binding Head Screw:
Brass,
M3 x 6.35 L.
Nickel Plate
SCREW
11.50
8.00
8.00
8.30
Mounting Detail
7.50
5.00
7.10
7.90
13.00
5.30
11.20
4.75
Mounting Detail
5.00
7.00
3.50
1.90 DIA. (4) PLS
7.50
5.00
1.50
(4) PLS
7.00
5.00
1.50
(4) PLS
1.85 DIA. (4) PLS
CAT. NO. 7790
(Supplied Less Screw)
CAT. NO. 7689
(Screw Supplied Unassembled)
CAT. NO. 7695
(Screw Installed & Captivated)
M3
HORIZONTAL
NOTE:
All dimensions are in millimeters
M3
VERTICAL
CAT. NO. 7788
(Supplied Less Screw)
CAT. NO. 7698
(Screw Supplied Unassembled)
CAT. NO. 7696
(Screw Installed & Captivated)

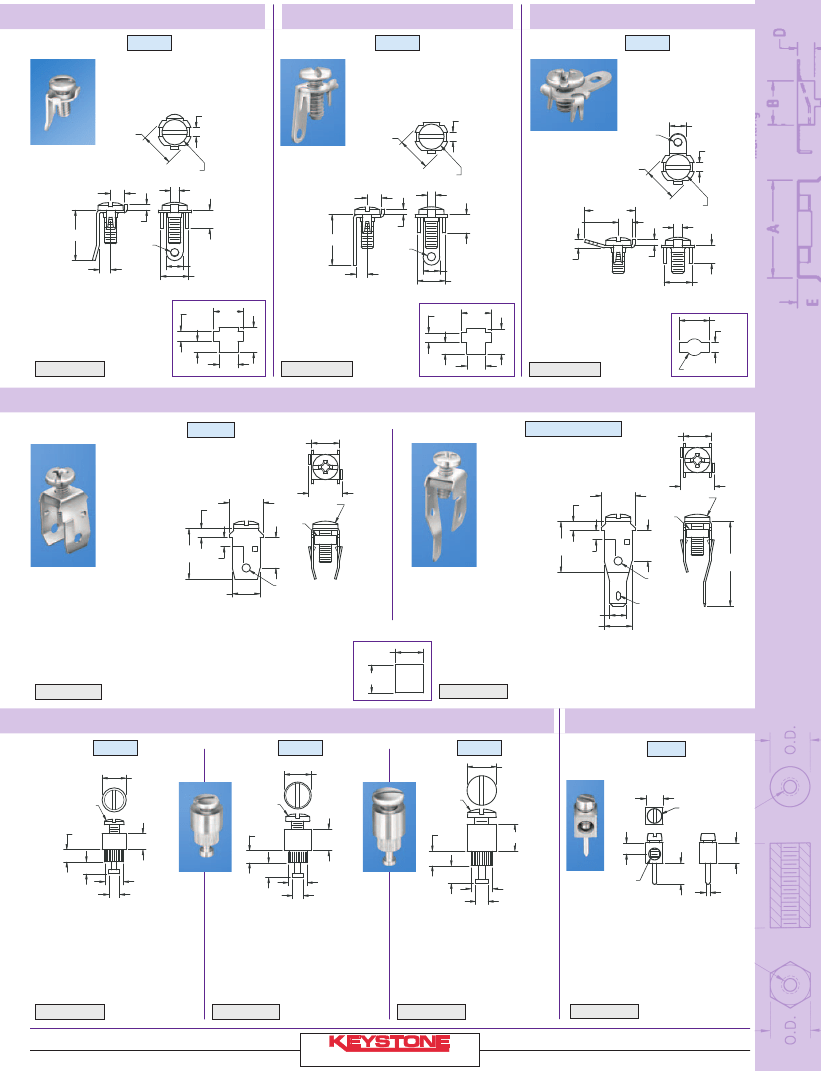

LOW PROFILE SCREW TERMINALS
These sturdy, low cost screw terminals, feature an anti-rotation tab for use with spade terminals.
They are available with the screw installed and captivated, the screw unassembled or without a screw.
PRINCIPLE FEATURES
•
Easy to connect using solid or stranded wire, crimp
lugs or terminals
•
Anti-rotation tab for use with spade terminals
•
Supplied with screw installed and captivated,
with screw unassembled, or without screw
•
Stainless steel screw will not wick
SCREW TERMINALS
.437 [11.1]
DIA.
6-32
.094
[2.4]
.375 [9.5] DIA.
6-32 x .250 [6.3] L.
SCREW
.156 [4.0]
.062
[1.57]
.375 [9.6]
.156 [4.0]
10-32
10-32 x .250 [6.3] L.
SCREW
.250 [6.4]
.093
[2.36]
.187 [4.8]
.328
[8.4]
.187 [4.8]
.100 [2.6]
SPECIFICATIONS
SPECIFICATIONS
Mounting Detail
.340 [8.7]
.110
[2.8]
.406 [10.3]
.125 [3.2]
Rated:
15 Amps
Terminal:
.032 (.81) thick Brass, Tin Plate
Screw:
Combination drive, Stainless Steel
Rated:
30 Amps
Terminal:
.062 (1.6) thick Brass, Tin Plate
Screw:
Combination drive, Stainless Steel
Mounting Detail
.472 [12.0]
.142 [3.6]
.210 [5.3] DIA.
.075 [1.9]
CAT. NO. 1284
(Supplied Less Screw)
CAT. NO. 1298
(Screw Supplied Unassembled)
CAT. NO. 1201
(Screw Installed & Captivated)
CAT. NO. 1293
(Supplied Less Screw)
CAT. NO. 1299
(Screw Supplied Unassembled)
CAT. NO. 1202
(Screw Installed & Captivated)
.187 [4.7] DIA.
HEAVY DUTY SCREW TERMINALS
These heavy duty terminals are available with the screw installed or unassembled, and
feature easy access to connect solid or stranded wire, crimp type lugs or terminals.
PRINCIPLE FEATURES
•
Anti-rotation tab for use with spade terminals
•
Below the board notched leg, to facilitate mechanical
and solder connections
•
Easy to connect using solid or stranded wire,
crimp lugs or terminals
•
Available with screw installed, unassembled, or without screw
10-32
.375 [9.5] DIA.
45°
.109 [2.8]
8-32 x .375 [9.5] L.
SCREW
.140
[3.6]
10-32 x .375 [9.5] L.
SCREW
.109 [2.8]
.140
[3.6]
.375 [9.5] DIA.
45°
8-32
.437
[11.1]
SPECIFICATIONS
Rated:
15 Amps
Terminal:
.064 (1.6)
thick Brass, Tin Plate
Screw:
Brass, Nickel Plate
.115 [2.9]
.531
[13.5]
.297
[7.6]
.437
[11.1]
.531
[13.5]
.297
[7.6]
SPECIFICATIONS
.406 [10.3]
Mounting Detail
.470 [12.0]
Rated:
30 Amps
.115 [2.9]
Terminal:
.064 (1.6)
thick Brass, Tin Plate
Screw:
Steel, Nickel Plate
.406 [10.3]
Mounting Detail
.470 [12.0]
CAT. NO. 1205
(Supplied Less Screw)
CAT. NO. 1207
(Screw Supplied Unassembled)
.210 [5.3] DIA.
.126 [3.2]
CAT. NO. 1206
(Supplied Less Screw)
CAT. NO. 1208
(Screw Supplied Unassembled)
.210 [5.3] DIA.
.126 [3.2]
CAT. NO. 1209
(Screw Installed)
.077 [1.96]
CAT. NO. 1283
(Screw Installed)
®
.077 [1.96]
56
Tel (718) 956-8900
•
Fax (718) 956-9040
(800) 221-5510
•
kec@keyelco.com
RoHS COMPLIANT
~
ISO 9001 CERTIFIED
www.keyelco.com
31-07 20th Road – Astoria, NY 11105-2017
OFFSET LEG
6-32
STRAIGHT LEG
6-32
SOLDER TAB
6-32
.100
[2.6]
.375 [9.5]
DIA.
.375 [9.5]
DIA.
.100
[2.6]
.093
[2.35]
DIA.
.187 [4.8]
.100
[2.6]
6-30 x .375 [9.5] L.
SCREW
.156 [4.0]
.093 [2.36]
.156 [4.0]
.062
[1.57]
.562 [14.3]
.093
[2.36]
DIA.
.125 [3.2]
.187 [4.8]
.312 [7.9]
.203 [5.2]
.562 [14.3]
6-32 x .375 [9.5] L.
SCREW
.093 [2.36]
.375 [9.5]
DIA.
.562 [14.3]
.062
[1.57]
.093
[2.36]
DIA.
.187 [4.8]
.312 [7.9]
.203 [5.2]
.156 [4.0]
6-32 x .312 [7.9] L.
SCREW
.093 [2.36]
.093
[2.36]
.062
[1.57]
.203 [5.2]
.125 [3.2]
.312 [7.9]
Mounting Detail
Mounting Detail
SPECIFICATIONS
Terminal:
.032 (.81)
O
Steel,
thick
Tin Plate
Screw:
Steel, Nickel Plate
(Screw Installed & Captivated)
.110
[2.8]
.330
[8.4]
.280
[7.1]
.210
[5.4]
SPECIFICATIONS
Terminal:
.032 (.81) thick Steel,
Tin Plate
Screw:
Steel, Nickel Plate
(Screw Installed & Captivated)
.110
[2.8]
.330
[8.4]
.280
[7.1]
.210
[5.4]
SPECIFICATIONS
Terminal:
.032 (.81) thick Steel,
Tin Plate
Screw:
Steel, Nickel Plate
(Screw Installed & Captivated)
Mounting Detail
.333 [8.5]
.110
[2.8]
.125 [3.2]
.125 [3.2]
CAT. NO. 1248
CAT. NO. 1215
CAT. NO. 1232
.187 [4.7] DIA.
SCREW TERMINALS
SNAP-FIT SCREW TERMINALS
SOLDER
.308 [7.8]
.187 (9.8) QUICK-FIT
.308 [7.8]
.375 [9.5]
.375 [9.5]
.100
[2.6]
.375 [9.5]
6-32 x .375 [9.5] L.
SCREW
NUT
.337
[8.6]
.562
[14.3]
.100
[2.6]
.337
[8.6]
.937
[23.8]
.093 [2.36]
DIA.
.040 [1.00] x
.100 [2.5] SLOT
.187 [4.8]
.308 [7.8]
.100
[2.6]
.375 [9.5]
6-32 x .375 [9.5] L.
SCREW
NUT
.562
[14.3] .100
[2.6]
.308 [7.8]
.093 [2.36]
DIA.
SPECIFICATIONS
Terminal:
.020 (.51) thick Spring Steel, Tin Plate
Screw:
Steel, Zinc Plate,
(Screw Installed & Captivated)
Mounting Detail
.312 [7.9]
SPECIFICATIONS
Terminal:
.020 (.51) thick Spring Steel, Tin Plate
Screw:
Steel, Zinc Plate,
(Screw Installed & Captivated)
.312 [7.9]
CAT. NO. 1272
CAT. NO. 1273
BINDING POST TERMINALS (RIVET TYPE)
4-40
.281 [7.2]
DIA.
4-40 x
.187 [4.7] L.
SCREW
.141
[3.6]
MINI BINDING POST
M2.5
.343 [8.7]
DIA.
6-32
.312 [7.9]
DIA.
5-32 x
187 [4.7] L
SCREW
.140
[3.6]
8-32 x
.187 [4.7] L.
SCREW
.171
[4.4]
8-32
.157 [4.0]
SQUARE
M2.5 x .156 [4.0] L.
SCREW
.187 [4.8]
.250 [6.4]
.312 [7.9]
.102 [2.6]
.187 [4.8]
.197 [5.0]
.140 [3.6]
.216 [5.5]
KNURL
.125 [3.2]
.172 [4.4]
.220 [5.6]
KNURL
.125 [3.2]
.204 [5.2]
.250 [6.4]
KNURL
.110 [2.8] DIA.
HOLE THRU
.145 [3.7]
.039 [1.00]
DIA.
FOR .093 (2.38) BOARD
FOR .093 (2.38) BOARD
FOR .125 (3.2) BOARD
SPECIFICATIONS
Terminal:
Brass, Tin Plate
Screw:
Steel, Zinc Plate
(Screw Supplied Unassembled)
Mounting Hole:
.220 (5.6)
SPECIFICATIONS
Terminal:
Brass, Tin Plate
Screw:
Steel, Zinc Plate
(Screw Supplied Unassembled)
Mounting Hole:
.225 (5.7)
SPECIFICATIONS
Terminal:
Brass, Tin Plate
Screw:
Steel, Zinc Plate
(Screw Supplied Unassembled)
Mounting Hole:
.255 (6.5)
SPECIFICATIONS
Terminal:
Brass, Tin Plate
Screw:
Steel, Zinc Plate
(Screw Supplied Unassembled)
Mounting Hole:
.047 (1.2)
CAT. NO. 1537
CAT. NO. 1535
CAT. NO. 1536
®
CAT. NO. 8730
Tel (718) 956-8900
•
Fax (718) 956-9040
(800) 221-5510
•
kec@keyelco.com
RoHS COMPLIANT
~
ISO 9001 CERTIFIED
www.keyelco.com
31-07 20th Road – Astoria, NY 11105-2017
57
ARM Technology
京公网安备 11010802033920号
EEWORLD
