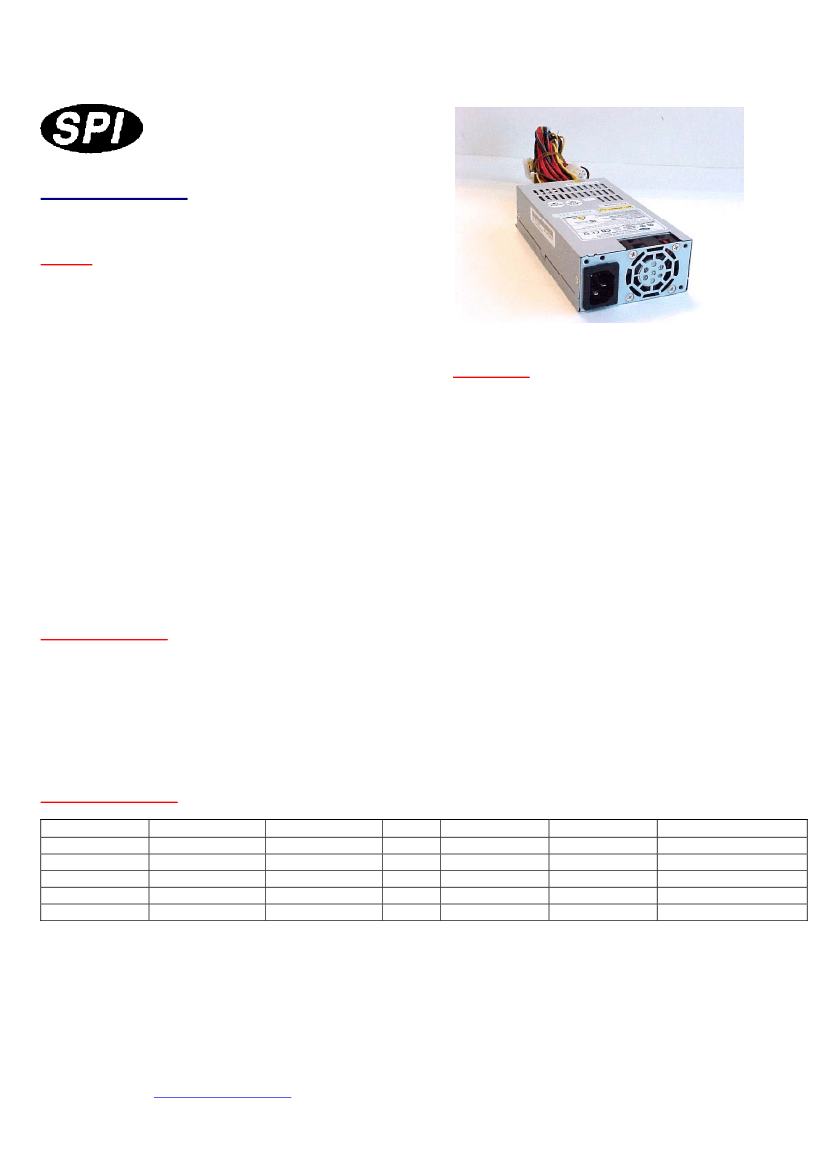

Sparkle Power Inc.
A Leading Power Supply Manufacturer
Web site: www.sparklepower.com
FSP200-50PLA
(Active PFC & RoHS Compliant)
200 Watts Flex ATX12V Switching Power Supply
Features
•
•
•
•
•
•
•
•
Complied with Flex ATX and ATX12V standard
Active Power Factor Correction (PFC) meet EN61000-3-2
High efficiency and reliability
Remote ON/OFF function
Internal 12V DC fan included
Noise Killer (thermal fan speed control function)
Low noise and ripple
Complies with FCC part 15 subpart J class B 115Vac operation,
and CISPR 22 class B at 230Vac operation
•
•
•
Specification
Temperature Range:
Operating: 0°C ~ +25°C on full load;
storage & shipping: -20°C ~ +80°C
Humidity:
5 ~ 95% on operating and storage
Dielectric Withstand:
Input to frame ground 1800 VAC for
2 second
•
•
•
•
•
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down
Approved by UL60950, CSA C22.2 NO. 60950, TUV EN60950
or VDE EN60950, NEMKO EN60950 (CB Report), CE
•
•
•
Efficiency:
68%
at minimum measured at nominal AC main
voltage and frequency with maximum load on all outputs
Rise time:
Less than 20ms
Hold-up Time:
17ms minimum at nominal input voltage
Power Good Signal:
Power on delay time 100 ~ 500ms, off
delay 1ms minimum (TTL and CMOS compatible)
Input Characteristics
Input Range:
90 ~ 265Vac (RMS), Full Range Input
Frequency:
47 ~ 63Hz
Input Current:
4A (RMS) @115Vac, 2A (RMS) @230Vac
Inrush Current:
50A Max @115Vac, 80A Max @230Vac cold
start
Output Characteristics
Output Voltage Minimum Load
Maximum Load
0.3A
16A
+3.3V
0.3A
12A
+5V
1.5A
12A
+12V
0.0A
0.8A
-12V
0.0A
2.0A
+5Vsb
*+5V and +3.3V total output not exceed 61W
*+3.3V, +5V, and +12V total output cannot exceed 180W
Peak
•
•
•
Leakage Current:
Not exceed 3.5mA at 264Vac, 50Hz
MTBF:
100,000 hours on maximum load at +25°C
Dimensions (LxWxH):
150x81.5x40.5mm/6x3.2x1.6in
13A
Load Reg.
± 5%
± 5%
± 5%
± 10%
± 5%
Line Reg.
± 1%
± 1%
± 1%
± 2%
± 1%
Ripple & Noise
50mV P-P
50mV P-P
120mV P-P
120mV P-P
50mV P-P
