LFXTAL075295BULK datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL075295BULK

LFXTAL075295BULK: DescriptionParallel - Fundamental Quartz Crystal; CategoryPassive components Crystal/resonator; File Size772KB，1 Pages; ManufacturerIQD Frequency Products

Download Datasheet Parametric View All

LFXTAL075295BULK Overview

Parallel - Fundamental Quartz Crystal

LFXTAL075295BULK Parametric

Parameter Name	Attribute value
package instruction	HC49, 2 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1000 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	30 pF
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	28.375 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)
Series resistance	35 Ω
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

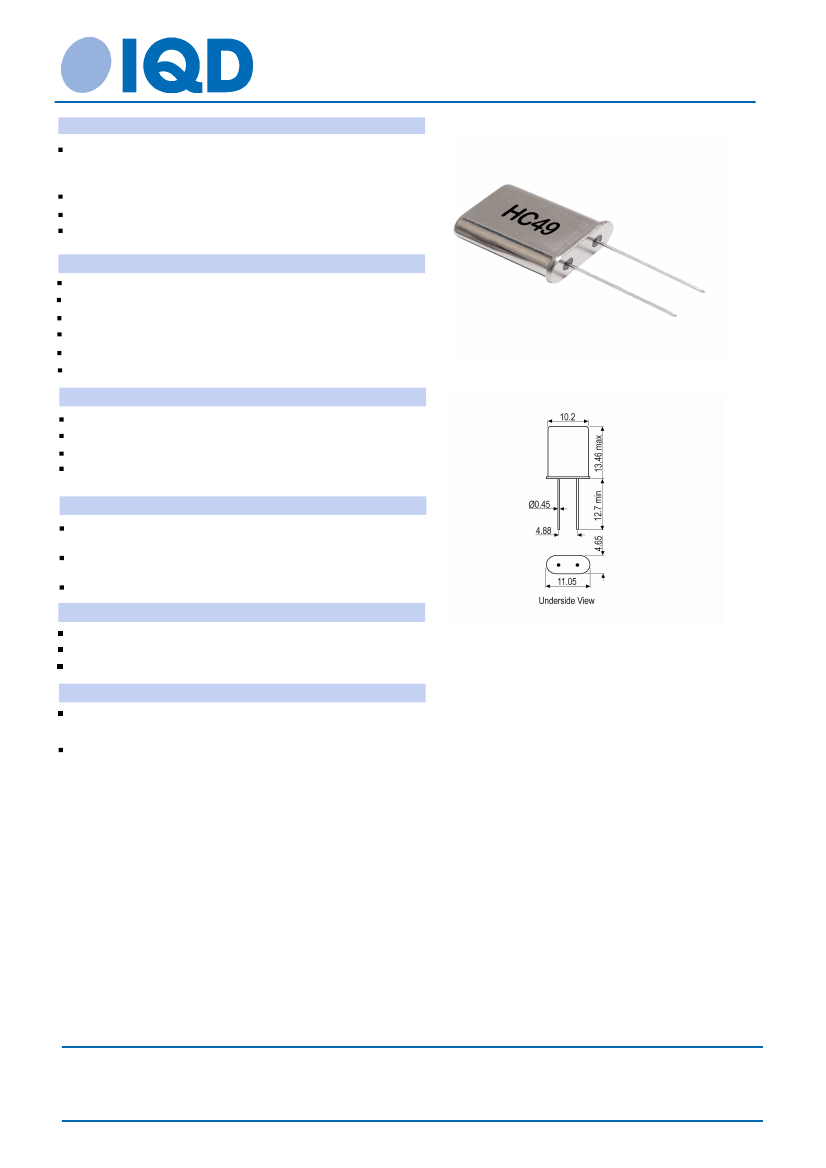

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL075295Bulk

Description

Industry standard leaded package

Resistance welded, hermetically sealed in an inert atmosphere,

glass to metal seals on leads

Standard 2 leg HC49 package

Model

Model Issue number

Frequency Parameters

HC49

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

28.3750MHz

±30.00ppm

50.00ppm

-20.00 to 70.00°C

Fundamental

±3ppm typical per year

Outline (mm)

Load Capacitance

Shunt Capacitance

Drive Level

ESR

Environmental Parameters

30.00pF

7pF max

1mW max

35.00Ω max

Shock: 981m/s², 6ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz,

98.1m/s², 30mins in 3 mutually perpendicular planes

Storage Temperature Range: -55 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 18 Nov 16 9:08 using Part Data Sheet V1.00014
