ST280C02C0 datasheet, PDF - EEWORLD Datasheet

ST280C02C0: DescriptionSilicon Controlled Rectifier, 960A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-200AB; CategoryAnalog mixed-signal IC Trigger device; File Size49KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

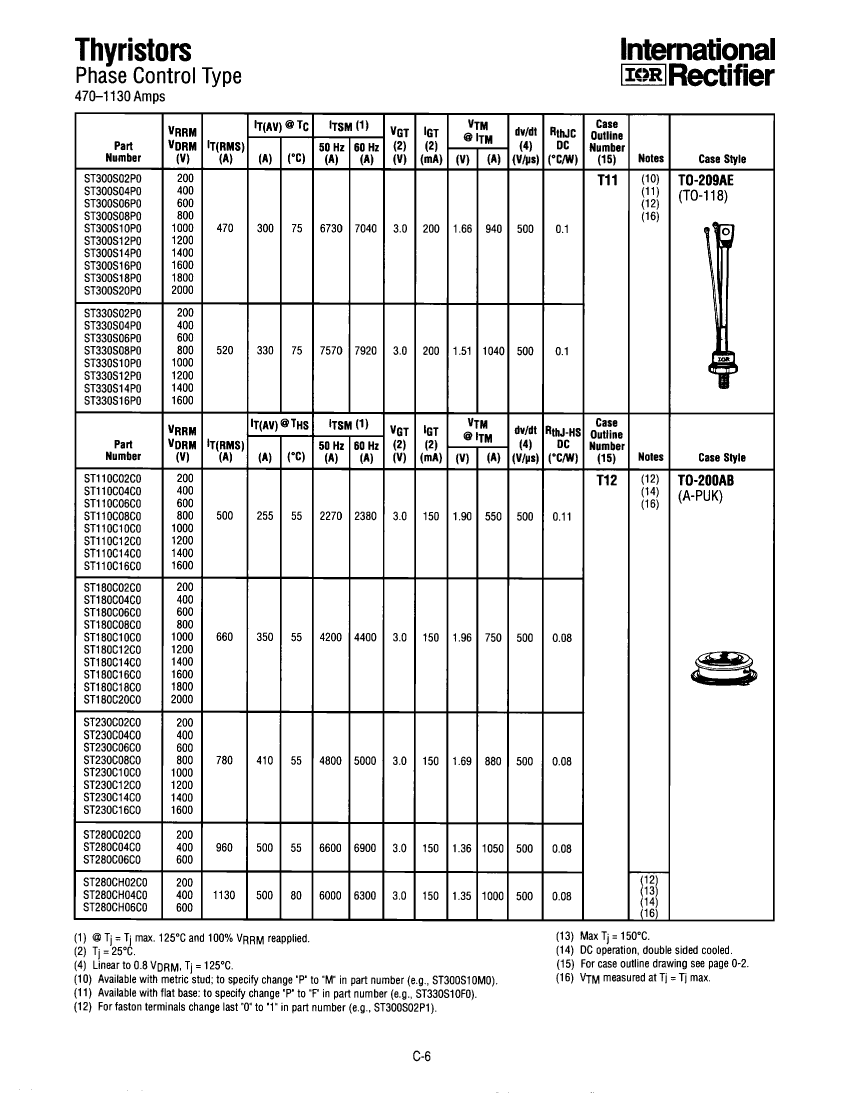

ST280C02C0 Overview

Silicon Controlled Rectifier, 960A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-200AB

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	DISK BUTTON, O-CEDB-N2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
JEDEC-95 code	TO-200AB
JESD-30 code	O-CEDB-N2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	960 A
Off-state repetitive peak voltage	200 V
Repeated peak reverse voltage	200 V
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1
