HBAT-540E-TR1G: DescriptionTrans Voltage Suppressor Diode, 30V V(RWM), Unidirectional, 2 Element, Silicon, LEAD FREE, SC-70, 3 PIN; CategoryDiscrete semiconductor diode; File Size108KB，8 Pages; ManufacturerHP（Keysight）; Websitehttp://www.semiconductor.agilent.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HBAT-540E-TR1G Overview

Trans Voltage Suppressor Diode, 30V V(RWM), Unidirectional, 2 Element, Silicon, LEAD FREE, SC-70, 3 PIN

HBAT-540E-TR1G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	SC-70
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW CAPACITANCE
Minimum breakdown voltage	30 V
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
Maximum forward voltage (VF)	0.8 V
JESD-30 code	R-PDSO-G3
Maximum non-repetitive peak forward current	1 A
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.43 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

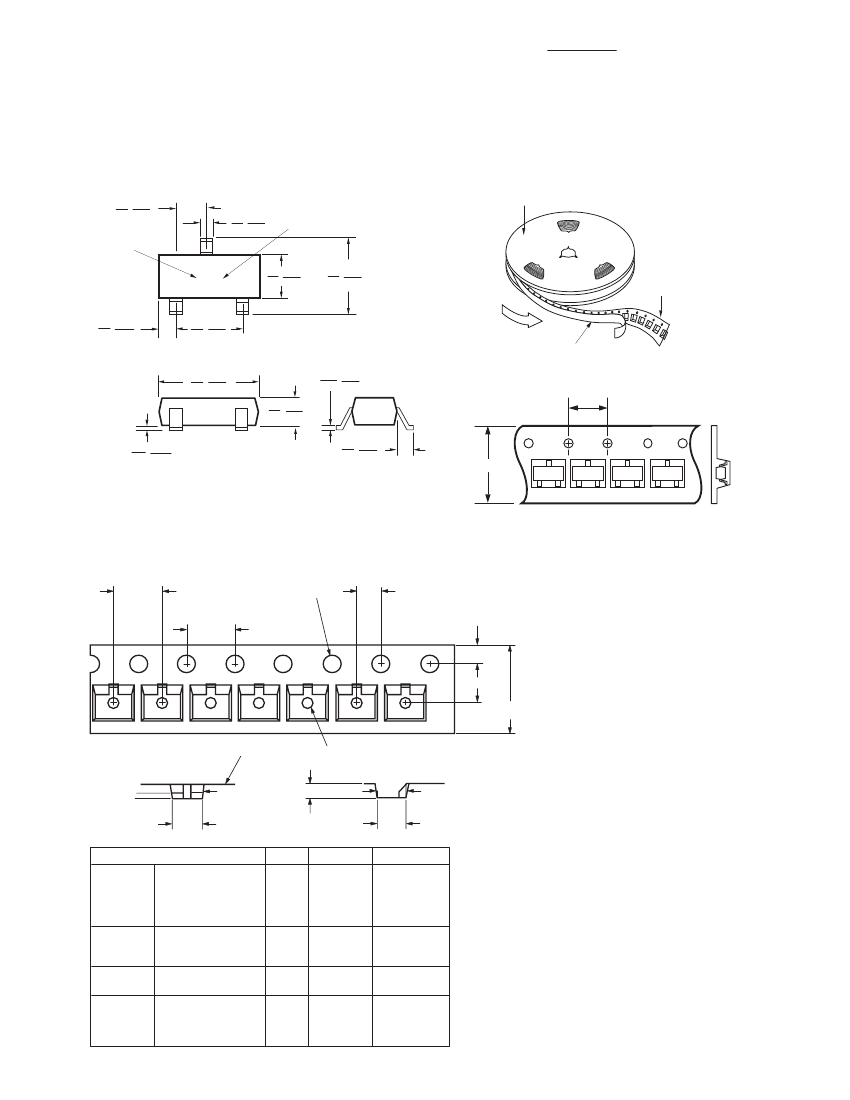

Preview

Download Datasheet

View All

High Performance Schottky

Diode for Transient Suppression

Technical Data

HBAT-5400/-5402

HBAT-540B/-540C

HBAT-540E/-540F

Features

• Ultra-low Series Resistance

for Higher Current Handling

• Low Capacitance

• Low Series Resistance

• Lead-free Option Available

Package Lead Code

Identification

(Top View)

SINGLE

SERIES

Description

The HBAT-5400 series of Schottky

diodes, commonly referred to as

clipping /clamping diodes, are

optimal for circuit and waveshape

preservation applications with

high speed switching. Low series

resistance, R

, makes them ideal

for protecting sensitive circuit

elements against high current

transients carried on data lines.

With picosecond switching, the

HBAT-540x can respond to noise

spikes with rise times as fast as

1 ns. Low capacitance minimizes

waveshape loss that causes signal

degradation.

Applications

RF and computer designs that

require circuit protection, high-

speed switching, and voltage

clamping.

0, B

2, C

COMMON

ANODE

COMMON

CATHODE

HBAT-540E-TR1G Related Products

	HBAT-540E-TR1G	HBAT-540E-BLKG	HBAT-540F-BLKG	HBAT-5402-TR1G	HBAT-540B-TR1G	HBAT-540F-TR1G	HBAT-540F-TR2G	HBAT-540E-TR2G
Description	Trans Voltage Suppressor Diode, 30V V(RWM), Unidirectional, 2 Element, Silicon, LEAD FREE, SC-70, 3 PIN	Trans Voltage Suppressor Diode, 30V V(RWM), Unidirectional, 2 Element, Silicon, LEAD FREE, SC-70, 3 PIN	Trans Voltage Suppressor Diode, 30V V(RWM), Unidirectional, 2 Element, Silicon, LEAD FREE, SC-70, 3 PIN	Trans Voltage Suppressor Diode, 30V V(RWM), Unidirectional, 2 Element, Silicon, LEAD FREE, SOT-23, 3 PIN	Trans Voltage Suppressor Diode, 30V V(RWM), Unidirectional, 1 Element, Silicon, LEAD FREE, SC-70, 3 PIN	Trans Voltage Suppressor Diode, 30V V(RWM), Unidirectional, 2 Element, Silicon, LEAD FREE, SC-70, 3 PIN	Trans Voltage Suppressor Diode, 30V V(RWM), Unidirectional, 2 Element, Silicon, LEAD FREE, SC-70, 3 PIN	Trans Voltage Suppressor Diode, 30V V(RWM), Unidirectional, 2 Element, Silicon, LEAD FREE, SC-70, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SC-70	SC-70	SC-70	SOT-23	SC-70	SC-70	SC-70	SC-70
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE
Minimum breakdown voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SINGLE	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
Maximum forward voltage (VF)	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Maximum non-repetitive peak forward current	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Number of components	2	2	2	2	1	2	2	2
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	0.43 A	0.43 A	0.43 A	0.22 A	0.43 A	0.43 A	0.43 A	0.43 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	-	HP（Keysight）	HP（Keysight）	HP（Keysight）	HP（Keysight）	HP（Keysight）	HP（Keysight）	HP（Keysight）
