BNC-STRT-ADP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BNC-STRT-ADP

BNC-STRT-ADP: DescriptionFEMALE-FEMALE, RF STRAIGHT ADAPTER; CategoryThe connector The connector; File Size222KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

BNC-STRT-ADP Overview

FEMALE-FEMALE, RF STRAIGHT ADAPTER

BNC-STRT-ADP Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Adapter type	BNC-BNC
Other features	STANDARD: MIL-A-55339
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
Coupling type	BAYONET-BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	BNC
Maximum operating frequency	3 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

Preview

Download Datasheet

View All

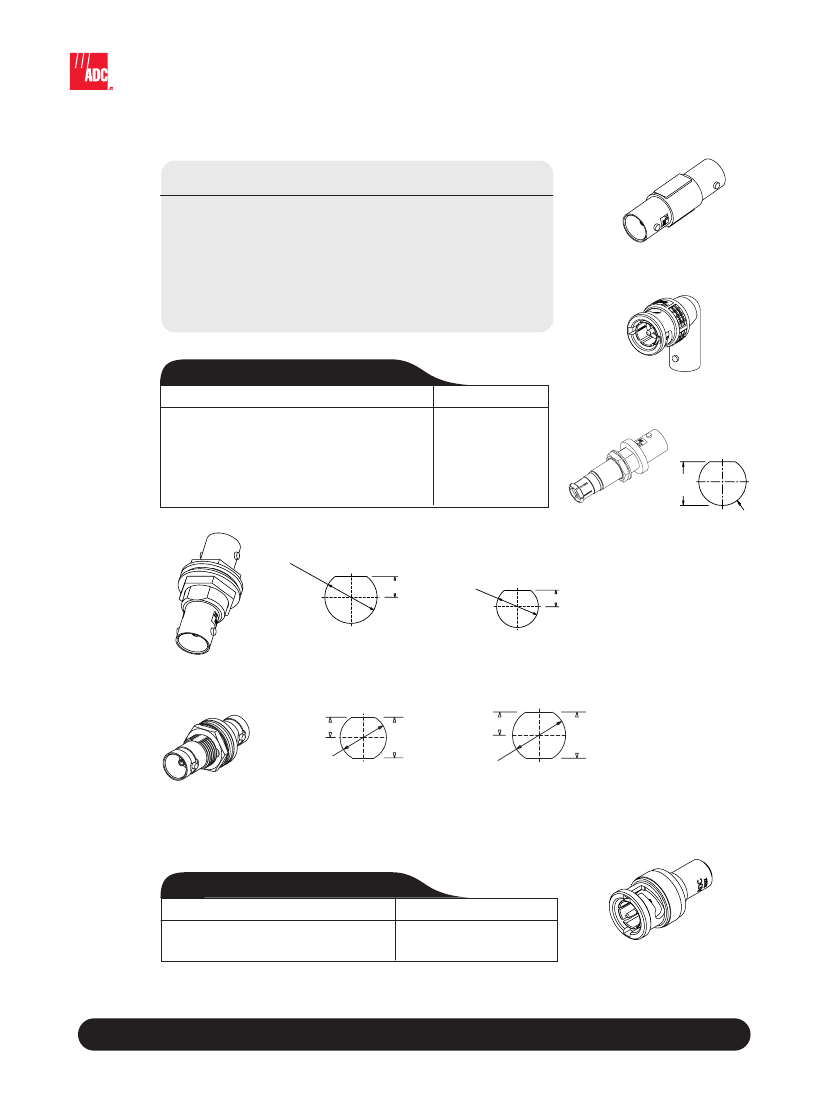

75 Ohm BNC Connectors

BNC Adapters and Bulkheads

Features

•

Improved performance – true 75 Ohm character impedance

Outstanding electrical performance to 3 GHz

Bulkhead feedthrough available with or without panel isolation

Meets the performance requirements of MIL-A-55339 for radio

frequency coaxial adapters

• Gold-plated, closed-entry contact center conductor to prevent

damage during test or mating plug termination

0'-

0'-1

Broadcast Products

BNC-STRT-ADP

Straight Adapter

7/16-28 UNEF-2A

Ordering Information

Description

BNC straight adapter

BNC right angle adapter

Bulkhead feedthrough, for .505"/.585" cutout

Bulkhead feedthrough, for .440"/.505" cutout

Bulkhead feedthrough with panel isolation washers

Bulkhead male to female

Catalog Number

BNC-STRT-ADP

BNC-RA-ADP

BHFT1

BHFT-I2

BHFT-I1

BHFT-MF

0'-11 1/4"

BNC-RA-ADP

Right Angle Adapter

0'-0 3/4"

0'-0 1/4"

7/16-28 UNEF-2A

0'-3 1/2"

0'-2 3/4"

0'-2 1/2"

0'-1 3/4"

0'-0 1/2"

9/16 HEX

0'-4 3/4"

0'-2 1/2"

0'-5"

.350"

(8.89)

.380"

(9.65)

BHFT-MF

.00

.263"

.005"

.58

9/16 HEX

.50

1180270

RECOMMENDED PANEL CUTOUT

WITH INSULATING WASHER

(MAX THICKNESS .250)

RECOMMENDED PANEL CUTOUT

WITHOUT INSULATING WASHER

(MAX THICKNESS .250)

BHFT-I1

.193"

.220"

6/02

BHFT-I2

.44

RECOMMENDED PANEL CUTOUT

WITHOUT ISOLATION WASHER

(MAX PANEL THICKNESS: .250)

.386"

.50

RECOMMENDED PANEL CUTOUT

WITH ISOLATION WASHER

(MAX PANEL THICKNESS: .250)

BNC Terminating Plugs

Ordering Information

Description

BNC terminating plug,

precision .1% 75 Ohm resistor

Catalog Number

BNC-TP2

BNC TP-2 Terminating Plug

.440"

•

.218"

05"

w w w. a d c . c o m

•

+ 1 - 9 5 2 - 9 3 8 - 8 0 8 0

•

1 - 8 0 0 - 7 2 6 - 4 2 6 6

0'-2 3/4"

BNC-STRT-ADP Related Products

	BNC-STRT-ADP	BHFT-MF	BNC-TP2
Description	FEMALE-FEMALE, RF STRAIGHT ADAPTER	PANEL MOUNT, MALE-FEMALE, RF STRAIGHT ADAPTER	CABLE TERMINATED, MALE, BNC CONNECTOR, PLUG
Reach Compliance Code	unknown	unknown	unknown
Characteristic impedance	75 Ω	75 Ω	75 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF BNC CONNECTOR
Contact point gender	FEMALE-FEMALE	MALE-FEMALE	MALE
Coupling type	BAYONET-BAYONET	BAYONET-SNAP	BAYONET
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	YES	YES	YES
Manufacturer's serial number	BNC	BNC	BNC
Maximum operating frequency	3 GHz	3 GHz	3 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	YES	NO
Other features	STANDARD: MIL-A-55339	STANDARD: MIL-A-55339	-
Base Number Matches	1	1	-
