SAT2815D15I datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> SAT2815D15I

SAT2815D15I: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, PLASTIC PACKAGE-5; CategoryPower/power management The power supply circuit; File Size153KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

SAT2815D15I Overview

DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid, PLASTIC PACKAGE-5

SAT2815D15I Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	-15V OUTPUTS ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	40 V
Minimum input voltage	18 V
Nominal input voltage	28 V
JESD-30 code	R-PDMA-P5
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	15 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

Electronics

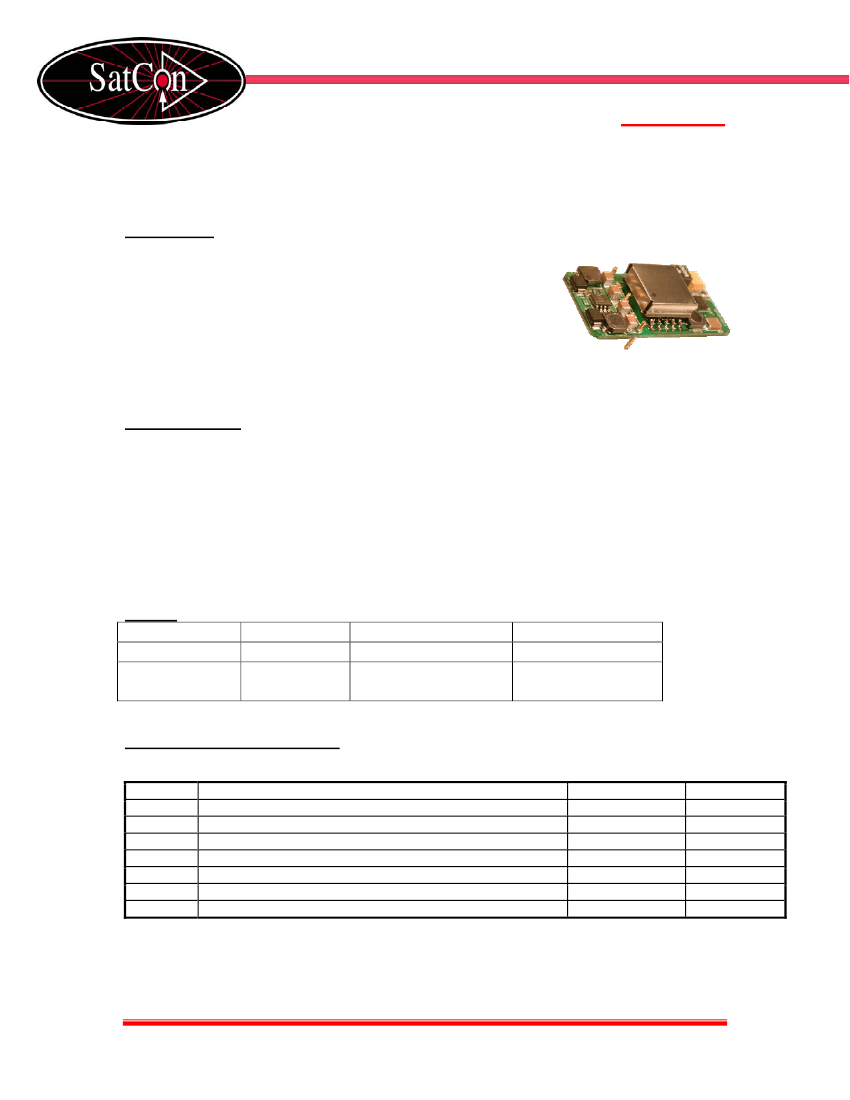

SAT2815D

15W, Dual-Output, DC-DC Converter

(Preliminary Data sheet)

FEATURES

Wide Input Voltage Range: 18V to 40V

High Efficiency: up to 85%

Over-current protection

No-Load Operation

No Opto-isolators used

Soft-start

Molded assembly

DESCRIPTION

The SAT2815D is a 15W, Dual, low cost DC-DC converter designed for high reliability,

low power instrumentation applications. It is packaged in a high-grade plastic modular

package that is conformally coated and potted internally for improved reliability in high-

stress environments. The SAT2815D will perform at high efficiency (up to 85% at 15W)

over the full temperature range of -40

C to +105

C. There are 2 configurations

available: 650V & 6KV isolated. These units are designed for high reliability in

commercial, industrial and military applications such as Industrial motor controls, radar

base stations, and missile power supplies.

Models

Part Number

SAT2815D15

SAT2815D15I

Description

Dual Output

Package Outline

Special Features

1.0in x 2.0in x 0.40in. 650V Isolation

1.0in.x 2.0in.x 0.40in. 6KV Isolation

ABSOLUTE MAXIMUM RATINGS

(Exceeding maximum ratings may damage the device)

Symbol

Vin

Tstg

Top

Viso

Tsold

Parameter

DC input

Maximum Output Power, Tbase=25deg.C

Storage Temperature

Operating Temperature Range

Package weight

Voltage Isolation Barrier

Maximum Soldering Temperature, 10sec

Value

-55 to +150

-40 to +105

TBD

300

Unit

kVdc

SatCon Electronics

www.satconelectronics.com

SAT2815D Preliminary Rev 3

SAT2815D15I Related Products
