BD136 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BD136

Preview

BD136: Description1.5 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-225AA; Categorysemiconductor Discrete semiconductor; File Size109KB，3 Pages; ManufacturerSAVANTIC; Websitehttp://www.svntc.com/

Download Datasheet Parametric Compare View All

BD136 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD136	-	-	View	Buy Now

BD136 Overview

1.5 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-225AA

BD136 Parametric

Parameter Name	Attribute value
Number of terminals	3
Transistor polarity	PNP
Maximum collector current	1.5 A
Maximum Collector-Emitter Voltage	45 V
Processing package description	PLASTIC, CASE 77-09, 3 PIN
state	DISCONTINUED
packaging shape	Rectangle
Package Size	Flange mounting
Terminal form	THROUGH-hole
terminal coating	tin lead
Terminal location	single
Packaging Materials	Plastic/Epoxy
structure	single
Number of components	1
transistor applications	amplifier
Transistor component materials	silicon
Maximum ambient power consumption	1.25 W
Transistor type	universal power supply
Minimum DC amplification factor	25

Preview

Download Datasheet

View All

SavantIC Semiconductor

Product Specification

Silicon PNP Power Transistors

DESCRIPTION

·With TO-126 package

·High current

·Complement to type BD135/137/139

APPLICATIONS

·Driver stages in high-fidelity amplifiers

and television circuits

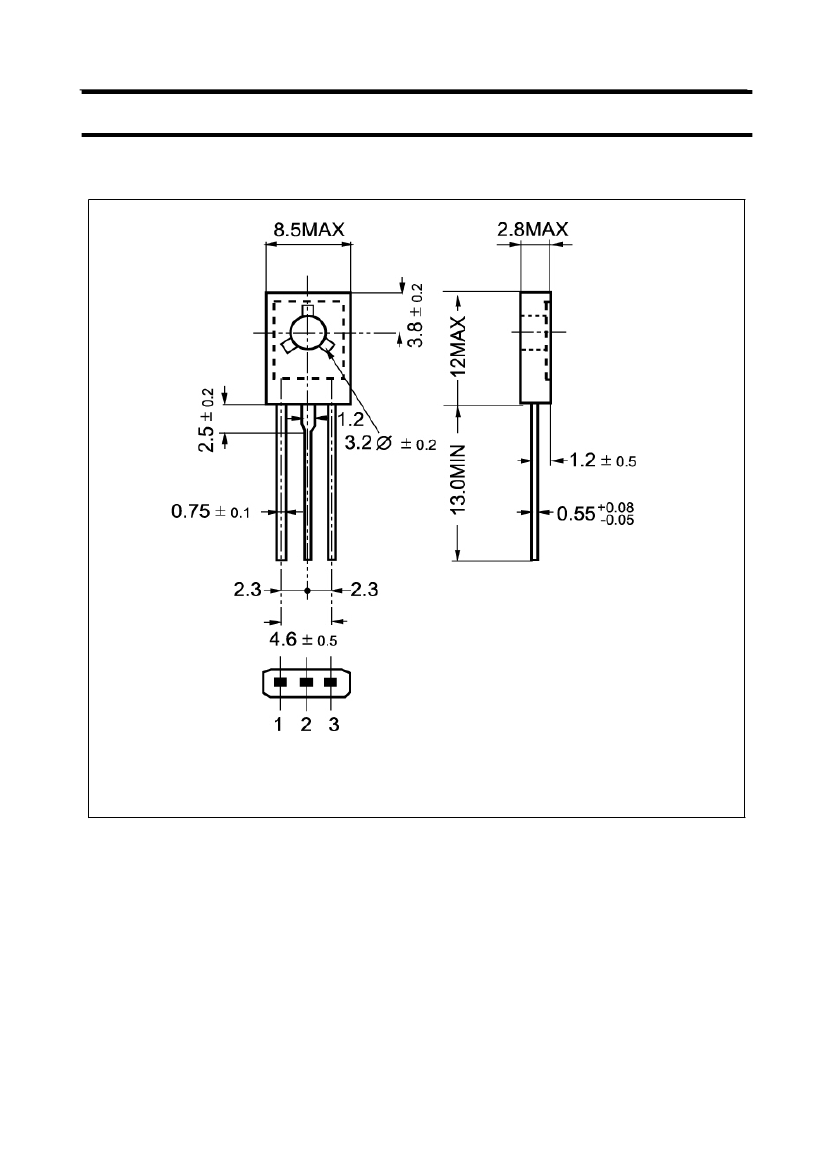

PINNING

1

2

3

DESCRIPTION

Emitter

Collector;connected to

mounting base

Base

BD136 BD138 BD140

Absolute maximum ratings (Ta=25

)

SYMBOL

PARAMETER

BD136

V

CBO

Collector-base voltage

BD138

BD140

BD136

V

CEO

Collector-emitter voltage

BD138

BD140

V

EBO

I

C

I

CM

I

BM

P

t

T

j

T

stg

T

amb

Emitter -base voltage

Collector current (DC)

Collector current-Peak

Base current-Peak

Total power dissipation

Junction temperature

Storage temperature

Operating ambient temperature

T

mb

670

Open collector

Open base

Open emitter

CONDITIONS

VALUE

-45

-60

-100

-45

-60

-100

-5

-1.5

-2

-1

8

150

-65~150

V

A

W

V

UNIT

THERMAL CHARACTERISTICS

SYMBOL

R

th j-a

R

th j-mb

PARAMETER

Thermal resistance from junction to ambient

Thermal resistance from junction to mounting base

VALUE

100

10

UNIT

K/W

BD136 Related Products

	BD136	BD138	BD140
Description	1.5 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-225AA	1.5 A, 60 V, PNP, Si, POWER TRANSISTOR, TO-126	1.5 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-225AA
Number of terminals	3	3	3
Transistor polarity	PNP	PNP	PNP
Maximum collector current	1.5 A	1.5 A	1.5 A
Maximum Collector-Emitter Voltage	45 V	60 V	80 V
Processing package description	PLASTIC, CASE 77-09, 3 PIN	TO-126, 3 PIN	PLASTIC, CASE 77-09, 3 PIN
state	DISCONTINUED	ACTIVE	ACTIVE
packaging shape	Rectangle	RECTANGULAR	RECTANGULAR
Package Size	Flange mounting	FLANGE MOUNT	FLANGE MOUNT
Terminal form	THROUGH-hole	THROUGH-HOLE	THROUGH-HOLE
terminal coating	tin lead	TIN LEAD	TIN LEAD
Terminal location	single	SINGLE	SINGLE
Packaging Materials	Plastic/Epoxy	PLASTIC/EPOXY	PLASTIC/EPOXY
structure	single	SINGLE	SINGLE
Number of components	1	1	1
transistor applications	amplifier	SWITCHING	AMPLIFIER
Transistor component materials	silicon	SILICON	SILICON
Maximum ambient power consumption	1.25 W	1.25 W	1.25 W
Transistor type	universal power supply	GENERAL PURPOSE POWER	GENERAL PURPOSE POWER
Minimum DC amplification factor	25	25	25
